RTI 4.0" IN-WALL TOUCHSCREEN W/- BUILT-IN XP PROCESSOR

Product Code: RT-KX4

Brand
RTI
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands RTI
Accessory Type Controller

KX4 4 inch In-Wall Touchpanel Keypad w/ Control Processor

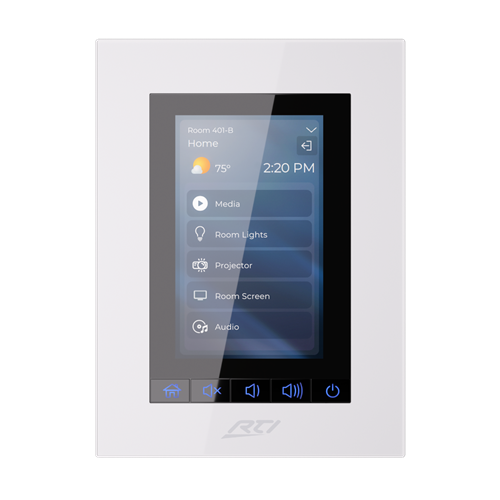

Ideal for single room commercial applications such as meeting rooms, classrooms, and lecture halls, the KX4 combines an in-wall touchpanel and hard button input with a built-in control processor. The result is an enhanced automation solution that combines control simplicity with power in a single cost-effective unit. For front panel control, the KX4 boasts a 4” high-resolution capacitive touch display with five configurable hard-buttons that can be customized with RTI’s Laser Shark engraving.

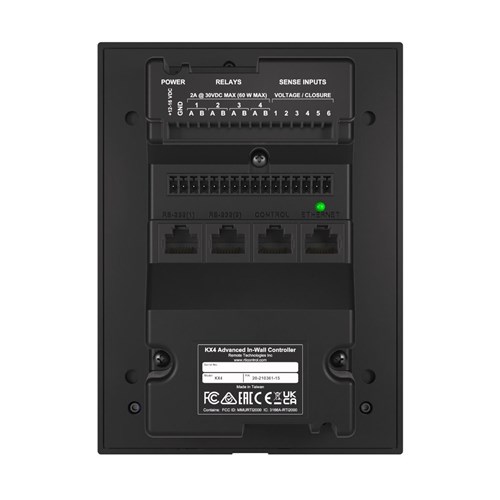

The built-in control processor features advanced capabilities, including support for two-way drivers, RTiPanel App and expansion configurations. Back panel connections enable direct control of devices via IR, IP and two RS-232, six voltage sense ports with sense-event capabilities, and four relays for control via contact closure.

Integration Designer software only available to authorized RTI dealers.

Included in the box:
KX4, bezel (white), RJ45 to DB9 serial adaptor (2), mounting wings (2), drywall template, screws (4)


Key Features

  • Vivid 4” WVGA (480x800) capacitive touch screen, and five hard buttons provide an incredibly simple and intuitive control experience.
  • Built-in control processor features advanced capabilities including support for two-way drivers, RTiPanel App and expansion capabilities.
  • Control processor also enables direct control of devices via IR, IP and two RS-232, six voltage sense ports with sense-event capabilities, four relays for control via contact closure and an astronomical clock for time-based events.
  • Built-in 2.4GHz ZigBee® RF transceiver module and antenna enables wireless remote control support.
  • Integrated 10/100 Base-T Ethernet (with PoE) for access to network security cameras, programming updates and more.
  • Proximity sensor wakes up the unit as a user approaches and an ambient light sensor adjusts the touchpanel’s backlighting.
  • Powered using power supply, CB8 connecting block or PoE (Power over Ethernet).

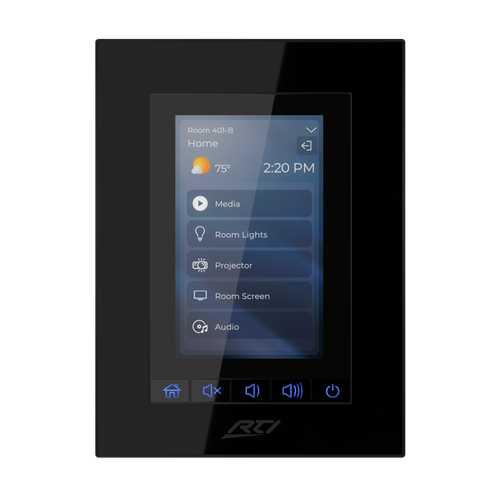

  • Stylish low-profile faceplate available in white or black (ships with white).

In-Wall
Blend your flush-mount touchpanel into the wall and make it a central point for controlling your home or business.

Hard Buttons
Five Hard Buttons provide quick access to often used control functions such as lights, music, audio/video source selection without the need to navigate through the graphical interface on your touchpanel.

2-Way
Convenient and reliable control with status feedback from controlled devices such as on/off or arm/disarm status, dimming value of lights, playlists, available stations.

RS-232
Two (2) control ports for 3-wire connection with the capability of polling status feedback from controlled devices or systems.

Relay
Four (4) built-in low voltage dry contacts that provide contact closure or switching control for loads up to 3A/30VDC (external power supply required).

Infrared
One (1) control port for 2-wire connection to infrared emitters, blasters and repeaters.

Sense Input
Six (6) inputs that sense contact closure from switches, windows or doors or voltage state from a voltage sensor to trigger a programmed control command or macro.

Ethernet
Standard 10/100 BaseT wired network connection for bidirectional control communication with RTI remotes, control accessories and devices that are controlled over IP network.

PoE
Power your touchpanel through a PoE network switch or PoE injector. No extra power supply required.

Zigbee
Standard wireless Zigbee connection for bidirectional control communication with RTI remotes.

Astronomical Clock
Built-in clock that syncs through an internet connection allows to schedule time-based events to automate all aspects of the installed environment, including climate, lighting, music, and much more.

Laser Shark
Customize the button labels with text or graphics.



Specifications

  • Power:    +9VDC to +16VDC, 1A max
  • Power Management:    Adjustable backlight brightness, Ambient light sensor, Proximity sensor
  • Touchscreen Display:
    • High-brightness color TFT LCD
    • WVGA (480x800 pixels) with 16.7M colors
    • Integrated high-resolution capacitive touch screen
  • Display Size:    4.0 in (97.2mm) diagonal
  • Display Backlight:    LED Backlit, 200nit
  • Infrared Output:
    • One, through control port, 200mA output
    • Drives up to 1000 ft (300 m) of wire
  • Serial Port:    Two RJ-45, RS-232 communication
  • Ethernet Port:    10/100 Base-T with Power-over-Ethernet
  • Relays:    Four, 3 Amps @ 30 VDC
  • Sense Inputs:    Six, 3-24VDC
  • Radio Frequency Control Range:
    • Up to 100 feet (30.5 meters)
    • Communication with optional wireless Interfaces
  • Radio Frequency Carrier:    802.15.4 @ 2.4GHz (Zigbee® Wireless Networking)
  • Microphone:    Silicon MEMS
  • Speaker:    One (1) 2 Watt, 8 Ohm
  • Flash Memory:    128MB Bytes Flash (non-volatile) memory
  • RAM Memory:    256MB
  • Device Capability:    Total number of devices is limited only by memory
  • Macro Capability:
    • Unlimited steps in a single macro
    • Total number of macros is limited only by memory
    • Macro capability on every button
  • Communications:    USB programming port
  • Enclosure:    High-impact molded ABS plastic
  • Mounting:    Integrated mounting wings, or screws through front plate
  • Bezel Dimensions (W x H):    4.352in (110.5mm) x 5.876in (149.25mm)
  • Installation Cut-Out (W x H):    2.942in (74.7mm) x 5.192in (131.8mm)
  • Total Depth in Wall:
    • 1.265in (32.1mm), with mounting wings 1.624in(41.2mm)
    • NOTE: Additional room may be required depending on connections
  • Weight:    8.9 oz (252 g)
  • Operating Temperature:    +32°F to +122°F (0°C to +50°C)
  • Operating Humidity:    5% to 95% Non-condensing
  • Warranty:    Three Years (Parts & Labor)
