Strymon Zuma R300 - Ultra Low Profile DC Pedal Power Supply

Product Code: SN-ZUMA-R300

Brand
Strymon
RRP $419.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Strymon
Product type Power Supply



High Horsepower, Low Profile.

Zuma R300 is the highest horsepower, most technologically advanced low profile effects pedal power supply. You get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a pedalboard friendly, expandable package, giving you room to grow. Zuma R300’s ultra-low profile design means that it can fit under just about any pedalboard.

Dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.

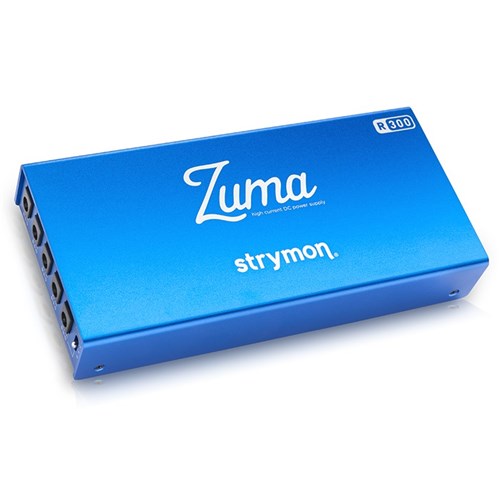

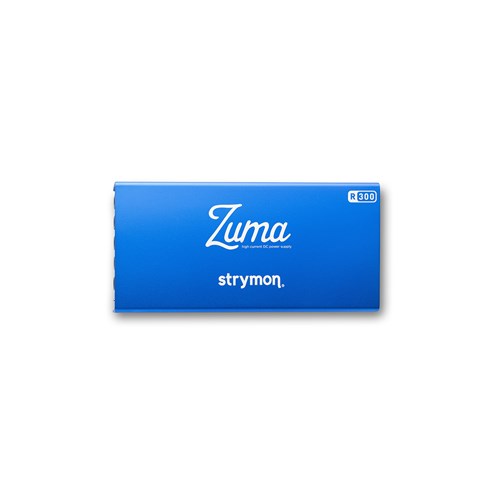

Strymon Zuma R300 pedal power supply

Dual isolation.

Zuma R300’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.

Ultra-low profile.

Zuma R300’s ultra-low profile design means that it can fit under just about any pedalboard. With built in threaded hardware, mounting to your board is simple.

Never run out of outputs.

Have a growing rig? Zuma R300 is part of an expandable system. Add more outputs by connecting a Strymon Ojai or Ojai R30 (sold separately) with the 24V Out jack.

Features

Never run out of outputs.

Strymon power supplies powering pedals

Is your pedalboard growing? Add more outputs to your Zuma R300 by connecting a Strymon Ojai or Ojai R30(sold separately) with the 24V Out jack.

Zuma R300 is part of a truly expandable, modular power distribution system that can grow with your pedalboard.



Ins & Outs

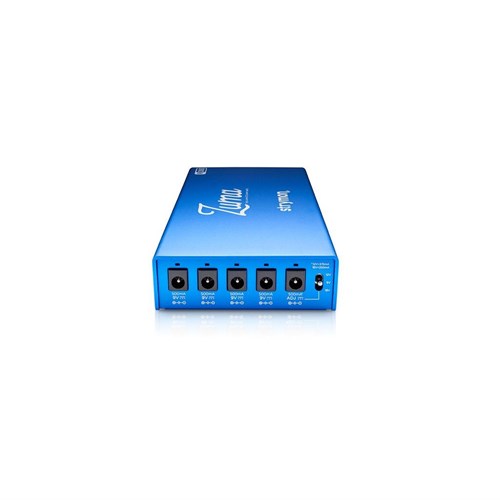

Left Panel

Strymon Zuma R300 pedal power supply

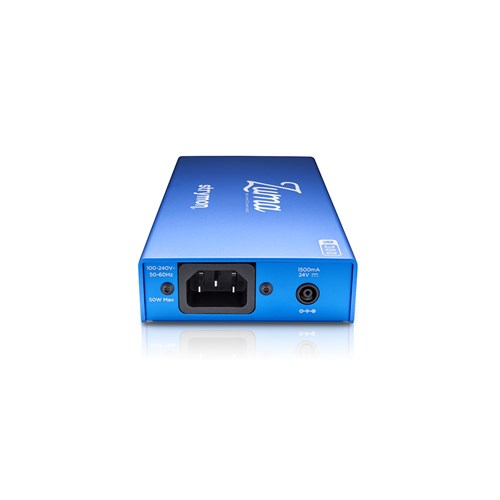

Right Panel

Strymon Zuma R300 pedal power supply

Design

Our power design team has over 25 years of experience in power system design, from developing mission-critical power systems for the aerospace industry, to developing best-in-class power supplies for top-selling power amplifiers, studio monitors, guitar amplifiers, and more. We’re using this vast experience to provide clean, dependable power to all of your effects pedals.

Specs

  • 5 high-current, fully isolated outputs with center-negative polarity
    • 4 dedicated 9V outputs (500mA)
    • 1 adjustable output offers 9V (500mA), 12V (375mA), or 18V (250mA) DC options
  • 500mA per 9V output powers nearly any pedal
  • Delivers a maximum of 36W
  • 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
  • IEC cable included
  • 24V Thru jack allows connection to Strymon Ojai or Ojai R30 (sold separately)

Frequently Asked Questions

What are the dimensions and weight of Zuma R300?

Zuma R300 Dimensions: 7.25″ x 3.5″ x 1.18″ (184mm x 88mm x 30mm)

Zuma R300 Weight 0.9 lbs. (400g)
