Yamaha - 10-Flxuc1500 FLXUC1500 Yamaha - Revolabs

Product Code: RY-FLXUC1500

Brand
YAMAHA
RRP $2,019.00


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands Yamaha
  • Details
  • Downloads
  • Where to Buy
  • Ordering

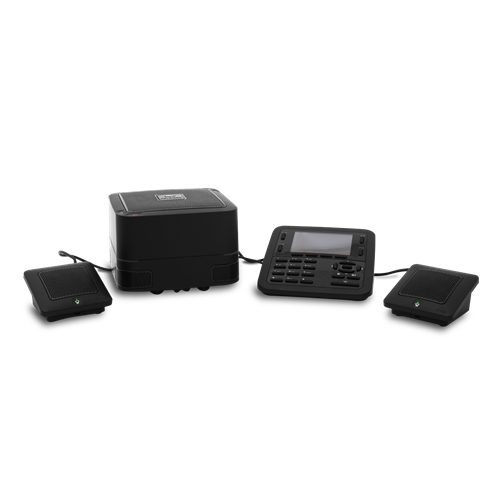

Revolabs FLX UC 1500

USB & VOIP CONFERENCE PHONE

Combining superior speaker, microphone, and audio processing technologies, this line of conference phones sets a new audio standard for conference calls, desktop audio, and PC communication tools. Designed to offer a greater audio frequency range than conventional devices, these phones deliver crisper, richer tones to facilitate remarkably clear communication.

REVOLABS FLX UC1500 FEATURES

With designs suited for huddle rooms, large conference rooms, and every space in between, these phones offer smart features that will make the most of your space.


  • Directional extension microphones (2 included in the FLX™ UC 1500) for audio capture in larger conference rooms
  • Ultra-wideband support (up to 16kHz input, 20kHz output)
  • High fidelity and full-duplex audio for authentic sound with tweeter and mid-woofer elements
  • Four corner microphones for 360° audio coverage SIP support for IP PBX’s and cloud or on-premise environments
  • Call bridging between VoIP and USB conference calls
  • Fully integrated Acoustic Echo Cancellation (AEC) for crystal clear audio
  • Enables unified communications by supporting both USB audio and SIP telephony
  • Connect to IP telephone systems and softphone applications such as Microsoft Teams, Zoom, WebEx and more
  • Designed for VoIP and BYOD (bring-your-own-device) environments
Larger conference rooms in the enterprise require additional microphones at the ends of the table to ensure quality call performance. Current solutions for this scenario involve connecting multiple units for additional speaker output and microphone input, which increases the overall system footprint for a minor improvement in audio quality.

The Revolabs FLX™ UC 1500 provides the answer for the larger conference room by building off the speakerphone capability of the FLX UC 1000 IP & USB Conference phone with two additional directional microphones.

The UC 1500’s integrated SIP technology works in all major telephony environments, whether on premise or in the cloud, and supports all market-leading IP PBX’s. In addition, the FLX UC 1500 easily integrates with your choice of PC applications for collaboration and conferencing. A key benefit of this integration is that the FLX UC 1500 is capable of bridging VoIP Calls and calls via USB and third party softphone applications – allowing your team to communicate using the best medium for collaboration.

The FLX UC 1500 offers the most extensible solution for USB, VoIP, and conference bridging for enterprise conferencing and collaboration.

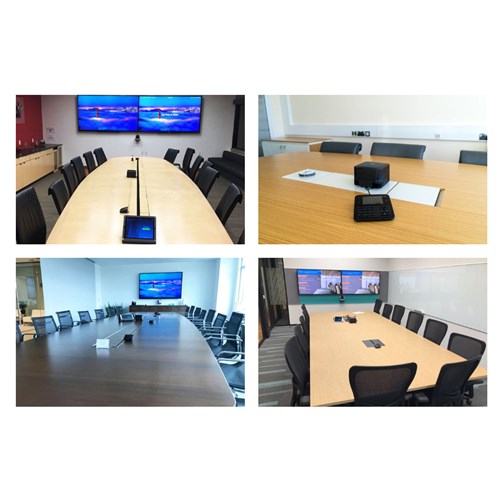

FILLS THE CONFERENCE ROOM WITH HIGH QUALITY SPEAKER SOUND
In conference rooms sized for up to 18 people, speaker audio can be heard by every meeting participant; the FLX UC 1500’s powerful speakers can fill the entire conference room with audio.


COMPLETE ROOM MICROPHONE COVERAGE
Every word by the meeting participants is picked up and transmitted to the far end due to the complete 360° coverage of the four built-in directional microphones and additional directional microphones.


FULL DUPLEX

Participants can communicate naturally as if they are in the same room, and the technology in the FLX UC 1500 supports simultaneous audio play back and audio capture ensuring every word is heard.


INTEGRATED ECHO CANCELLATION
The meeting participant speaking has his audio picked up and transmitted clearly; built-in digital signal processing separates out the speech of the meeting participant, room noise, and audio from the speaker of the device to ensure only the correct audio is transmitted to the far end. Real discussions between conference participants are finally possible.

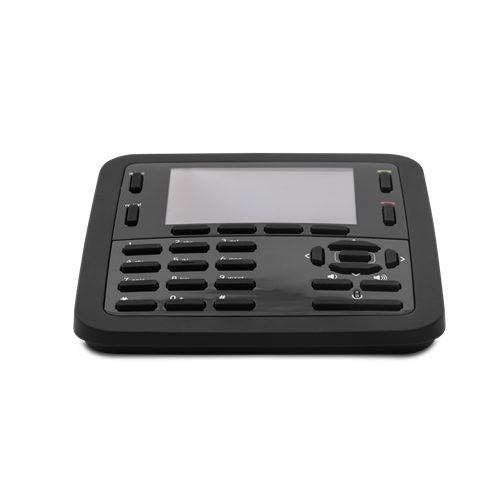

INTUITIVE DIALER WITH FULL COLOR GRAPHICS DISPLAY
The keypad provides quick access to the key calling features: On-Hook, Off-Hook, Volume Up/Down, Mute, Redial, and Main Menu, with additional context-dependent soft keys, navigational buttons, and telephone keypad for ease of use and dialing. The intuitive dialer boasts an easy to use, iconbased menu system on the full color graphics display.


FEATURES AND SPECIFICATIONS

SIP
  • Call Handling:Make Call, Answer, Hold, Resume, Transfer (Blind and Supervised), Forwarding, Do not disturb, Redial, Call Timer, Call ID, Speed Dial, Missed Call Notifications, Voice Mail Notifications (switch-configured)
  • Call Bridging:Supports Bridging SIP and USB Calls. Join, Split, Hold, Resume, 3+1 Lines: Up to 2 SIP calls, 1 USB call, plus the user
  • Codecs: G.711 (A-law and μ-law), G.722, G.726, G.729
  • DTMF Support: RTP event, SIP in-band, SIP info package support
  • Security: SRTP/SRTCP Support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs), SSIP, Password
    protected configuration files, Password protected login, HTTPS Secure Provisioning
  • Network provisioning: DHCP or Static IP, Server Based Central Provisioning, Web Portal for Individual Unit Configuration

DEVICE FEATURES
  • Base Unit: Capacitive Touch Buttons for On-Hook, Off-Hook, Volume Up/Down, Mute
  • Dialer Keypad: 12-key telephone keypad, 4 context-dependent soft keys, 5 Navigation buttons with select key, On-Hook, OffHook, Volume Up/Down, Mute, Redial, Menu
  • Dialer Display: 3.5in diagonal color graphics display, 480x320 pixels
  • User Interface: Date & Time Display, User-configurable Local Contact List, Call History (Missed Calls, Placed Calls, Received Calls), User-Selectable Ring Tones, Unicode UTF-16 Character Support, Multilingual User Interface Capacitive
  • Extension Mics: Touch Button for Mute and Status indicator

AUDIO FEATURES

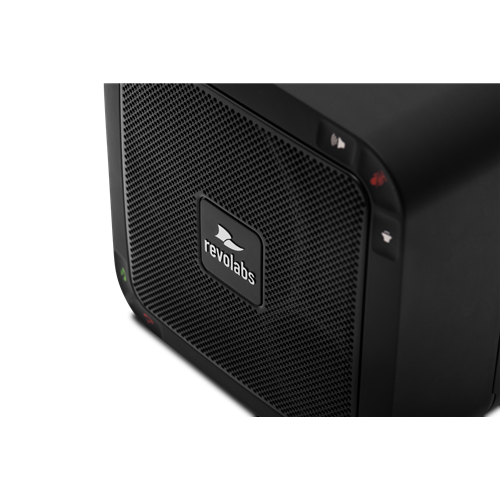

  • Speaker Elements: Tweeter, Mid-Woofer
  • Speaker Frequency Response: 160 – 20,000 Hz
  • MAX SPL: 91 dB at 1m
  • Microphones:
    • 4 embedded directional
    • 2 directional extension microphones
  • Microphone Coverage: 360° Audio Pick-Up
  • Microphone Frequency Response: 160 – 16,000 Hz
  • Echo Cancellation: Individual AEC per microphone
  • Full Duplex: Yes

INTERFACES
  • Power: Power over ethernet (PoE)
  • USB: Mini USB 2.0 Connector

ENVIRONMENTAL
  • Operating Temperature: 32 – 104 °F (0 - 40 °C)
  • Storage Temperature: -22°F to +131 °F (-30°C to +55 °C)
  • Relative Humidity: 20%-85% (noncondensing)

COMPLIANCE
  • Safety:
    • CE Mark: EN 60950
    • IEC 60950
    • UL 60950
    • CSE C22.2, No. 60950
    • AS/NZS 60950
  • EMC:
    • FCC (47 CRF Part 15) Class B
    • ICES-003 Class B
    • EN55022 Class B
    • CISPR22 Class B
    • AS/NZS CISPR22 Class B
    • VCCI Class B
    • EN55024
  • Environmental: RoHS

SIZE, WEIGHT, POWER
  • Base Unit Height: 4.84 in (123mm)
  • Base Unit Width:5.9 in (150mm)
  • Base Unit Length:5.9 in (150mm )
  • Dialer Unit Height:1.6 in (41mm)
  • Dialer Unit Width:5.2 in (133mm)
  • Dialer Unit Length:5.3 in (136mm)
  • Weight:3 lb (1.3 kg)
  • Power:IEEE 802.3af Power over Ethernet (PoE)

SYSTEM INCLUDES:
  • 1 Base Unit
  • 1 Dialer Unit
  • 1 USB Cable, 6.56ft (2.0m)
  • 1 Ethernet Cable, 25ft (7.62m)
  • 2 Directional Extension Microphones
  • Quick Start Guide
