Xilica and Yamaha UC medium room ki - Amber Tech
Products

Xilica

Xilica and Yamaha UC medium room kit

Product Code: XI-XYB-M

Brand
Xilica
RRP $11,715.00


Quantity In Cart: 0
Unit of Measure
EACH

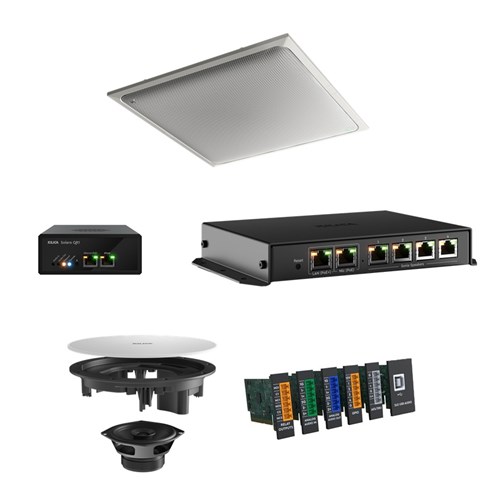

Kit Components
Code
Item
Qty
RY-RM-CGW
ADECIA Ceiling Array Mic White RM-CG-W Yamaha
1.0
XI-QR1-SOLARO
Qr1-Frame QR1-SOLARO Xilica
1.0
XI-SONIA-AMP
4 channel PoE amp with Dante Use with Sonia C5 speakers
1.0
XI-SONIA-C5-P
In-ceiling speaker with RJ45 Use with Sonia amp - PAIR
1.0
XI-XC-SUB
Solaro XC-SUB
1.0
Technical Specifications
Brands Xilica
Product type Room Kit

Medium UC room kit with QR1, XC-SUB,Sonia Amp , Sonia C5 speakers(pair) & Adecia RMCG Ceiling mic

CEILING MICROPHONE (WHITE)

A ceiling array microphone equipped with unique audio signal processing technology that enables high-quality communication

  • “Dynamic Voice Tracking” that scans for human voice
  • Four “Auto Tracking Beams” track simultaneous speech allowing for lively conversations
  • Utilizes innovative Yamaha technologies like Adaptive Echo Canceller, Automatic Gain Control, Noise Reduction, and Dereverberation
  • Automatic detection and configuration with Remote Conference Processor RM-CR
  • Standard network audio support for “Dante”
  • Utilizes one PoE+ network cable connection avoiding troublesome wiring and enabling audio control via Dante
  • Supports 3 types of mounting methods for use with a variety of ceiling conditions

QR1-SOLARO

Deliver exceptional audio quality to every space with the ultra-small-footprint Solaro QR1, a PoE-powered digital signal processor with eight user-configured I/O card slots. This open-architecture product can be populated with all combinations of Solaro Series I/O card, offering capabilities including analog audio, USB (with volume/mute status sync), GPIO, relay control and AES/EBU digital audio. Additionally, Solaro QR1 connects to an installed network over standard CatX cable with in-built 4x4 Dante audio networking, for streamlined connection of ceiling microphones and other IP-based audio products. With license-activated HearClearTM acoustic echo cancellation and an integrated control engine capable of Lua scripting, Solaro QR1 is an ideal solution for individual conference rooms, classrooms and legislative spaces at an exceptional price-point.



SONIA

Sonia Amp is a PoE+ IP-addressable amplifier designed to power up to eight (8) Sonia C5 5.25" speakers from a single unit. Offering four (4) distinct channels that can supply Sonia C5 speakers with either the identical or different audio feeds, Sonia Amp allows a single amplifier to drive audio in anywhere between one and four different rooms. Sonia Amp is entirely CatXbased, requiring no proprietary audio connectors or traditional copper speaker wire. Instead, IT technicians can install Sonia systems with standard Category cable and RJ45 connectors, dramatically lowering time and cost of deployment. Unlike traditional amplifiers that require a dedicated equipment rack for mounting and ventilation, Sonia Amp mounts directly to the rear of any Sonia C5 speaker, eliminating in-room storage and permitting a full room speaker system to be hidden in a suspended ceiling. Sonia Amp is convection cooled without any fan noise and is Plenum rated to enable installation in air handling spaces. Sonia Amp is Dante enabled, AES67-compatible, and offers an integrated network switch with PoE to enable the powering of a ceiling-mounted microphone array. In this respect, Sonia Amp adds additional value to the IT technician by creating just one single Category cable drop to the ceiling for the full room audio system. When paired with a Xilica Solaro QR1, an entire audio system can be deployed in the drop-ceiling. Sonia Amp additionally offers fault sensing on each channel, providing the same monitoring capabilities as an individually-addressable IP speaker without the cost.

SONIA C5

Sonia C5 is a 5.25" in-ceiling speaker with Category cable connection, designed to enable anyone to deploy speaker systems into meeting rooms, classrooms and discussion spaces using standard IT infrastructure. Plenum-rated, Sonia C5 mounts into suspended ceiling grids using an included tile bracket and double-stepped dog ears, enabling blind installation from below. Sonia C5 features no proprietary audio connectors and is connected to a Sonia Amp using standard Category cable. Each Sonia C5 features VoiceMatch™ technology when used in conjunction with Sonia Amp/Solaro Series, enabling speech optimization for added intelligibility. Sonia C5 features a magnetic, fully-paintable grille with removable logo and offers integrated mounting for Sonia Amp, allowing the entire speaker system to be contained within a drop ceiling with no in-room racks.



Solaro XC-SUB

a 2x2 (send/receive) USB audio card for Solaro Series processors. The XC-SUB offers volume and mute status sync for Microsoft Teams and connects over a USB 2.0, Class 1 Audio Type B female connector. Solaro XC-SUB is an essential for conferencing, education and hybrid applications demanding high quality computer-based audio, leveraging Xilica proprietary signal processing algorithms and HearClear acoustic echo cancellation.
