Wyrestorm EXF-300-H2 HDMI over OM3 Multi-Mode Fiber

Product Code: WY-EXF300H2

Brand
Wyrestorm
RRP $1,809.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type Extenders
  • Details
  • Downloads
  • Where to Buy
  • Ordering

4K 4:4:4 60Hz 18Gbps HDMI HDCP 2.2 Bidirectional IR or RS-232 over OM3 Multi-Mode Fiber

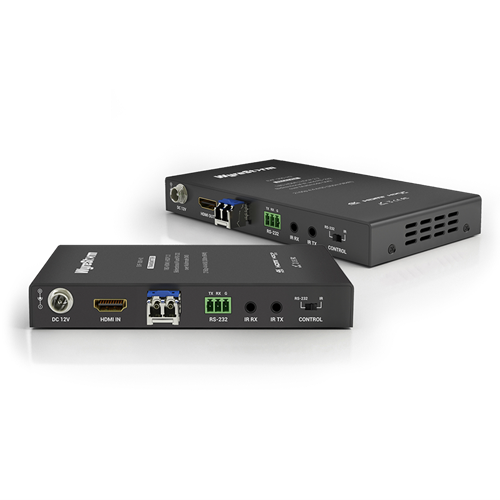

EXF-300-H2
WyreStorm’s first fiber-optical extender, ensuring perfect transmission of 18Gbps HDMI signals to 300m/984ft. The EXF-300-H2 is compatible with 2160p 4:4:4/60 or high frame rate HDR content with HDCP 2.2 encryption, and will send it via a 10G OM3 multi-mode cable without any effect from EM or RF interference along the way.

LET THERE BE LIGHT
Having a physical form, copper cable causes attenuation and weakens a signal with every metre that it has to travel. Pixel-perfect transmission of HDMI content as light is now possible over optical fiber up to 300m/984ft.

HDMI 2.0 MAXED OUT
The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can be sent using the latest optical transmission technology.

HIGH FRAME RATE HDR
HDR Content has recently enjoyed an up-shift in refresh rates after starting its life at 24Hz on UHD Blu-Ray discs. High frame-rate HDR is now available at 60Hz on certain discs and via games consoles like the Xbox One X.

HIGH RESISTANCE TO EM OR RF INTERFERENCE
Optical transmission is immune to EM and RF, meaning that electronically “noisy” environments such as industrial or retail premises have historically been difficult for copper as a medium. Using optical transmission over a multi-mode fiber core, the EXF-300-H2 ensures a solid, stable signal over nearly 1000ft.


Features

  • Extends 18Gbps HDMI transmissions using multi-mode fiber up to 300m/984ft
  • Compatible with the latest HDR-10 content and 4K/60 4:4:4
  • HDCP 2.2 compliant
  • Passes IR or RS-232 control signals bidirectionally
  • Ideal for long distance transmission in environments with high-levels of EM or RF interference

SPECIFICATIONS

Audio and Video

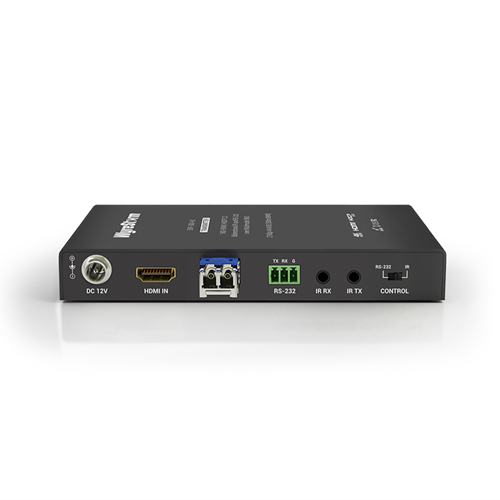

  • Inputs
    • (Transmitter) 1x HDMI 19-pin type A
    • (Receiver) 1x SFP + Fiber LC Connection
  • Outputs
    • (Transmitter) 1x SFP+ Fiber LC Connection
    • (Receiver) 1x HDMI 19-pin type A
  • Output Video Encoding: TMDS over fiber
  • Encoding Data Rate: 10Gbps
  • Audio Formats: 2ch Analog/PCM | Multichannel: LPCM and Up to Dolby TrueHD and DTS-HD Master Audio
  • Video Resolutions (Max)Video ResolutionsHDMIMM OM3
    1920x1080p @60Hz 12bit15m/49ft300m/984ft
    1920x1080p @60Hz 16bit7m/23ft300m/984ft
    3840x2160p @24Hz 10bit 4:2:0 HDR3m/10ft300m/984ft
    3840x2160p @30Hz 8bit 4:4:47m/23ft300m/984ft
    3840x2160p @60Hz 10bit 4:2:0 HDR3m/10ft300m/984ft
    4096x2160p @60Hz 8bit 4:2:07m/23ft300m/984ft
    4096x2160p @60Hz 8bit 4:4:43m/10ft300m/984ft
  • Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
  • Maximum Pixel Clock: 600mHz
Communication and Control
  • HDMI: HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
  • Fiber Multimode: HDMI | HDCP 2.2 | EDID
  • RS-232: 1x 3-pin Phoenix | Bidirectional over OM3
  • IR: 1x IR RX: 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono | Bidirectional over OM3
Power
  • Power Supply: 12V DC .5A
  • Max Power Consumption: 4W
Environmental
  • Operating Temperature: 0 ~ +45°C (32 ~ +113 °F) | 10% ~ 90% non-condensing
  • StorageTemperature: -20 ~ +70°C (-4 ~ +158 °F) | 10% ~ 90% non-condensing
  • Maximum BTU: 14 BTU/hr
Dimensions & Weight
  • Rack Units | Wall Box: <1U
  • Height With | Without Feet: 20mm/0.79in
  • Width With | Without Brackets: 150mm/5.91in
  • Depth With | Without Handles: 74.4mm/2.93in
  • Weight: 0.3kg/0.66lbs
Regulatory
  • Safety and Emission CE | FCC |RoHS
