Wyrestorm Ex-70-G2 Extender EX70G2 Wyrestorm

Product Code: WY-EX70G2

Brand
Wyrestorm
RRP $459.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDBaseT
Product type Extenders
  • Details
  • Downloads
  • Where to Buy
  • Ordering

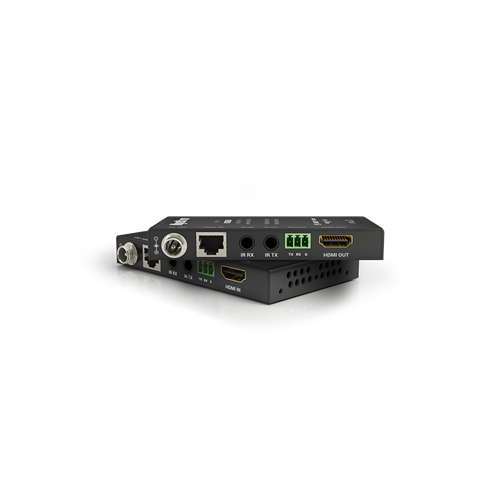

4K UHD HDBaseT™ Extender Set with HDCP 2.2 & 2-way PoH and CEC Passthrough (4K: 35m/115ft | 1080p: 70m/230ft)

EX-70-G2

With unbeatable value and reliability, the EX-70-G2 extender features HDBaseT Class B technology, extending 4K UHD video, audio, and control up to 35m/115ft.


UHD & HD BEST OF BOTH WORLDS
We might live in a 4K world, but not every application needs it. Compatible with the latest 4K/60 and 1080p sources alike, the EX-70-G2 delivers whatever content you have, wherever its needed.

2-WAY POH FOR FLEXIBLE INSTALL
No two installs are the same, which is why the EX-70-G2 and all H2 Series extenders can be powered from either TX or RX side for the most convenient and flexible installation imaginable.

SMALL BUT POWERFUL
Weighing in for the featherweight title at just 15mm thick, the EX-70-G2 can be installed just about anywhere, but still packs the punch to deliver video, audio, control and power like a champ.

BIDIRECTIONAL CONTROL WHATEVER THE PROTOCOL
Need to send control signals both up and downstream? The EX-70-G2 has you covered with IR, RS-232 and even CEC signals able to be passed-through, end-to-end bidirectionally for simultaneous source & display control.



FEATURES

  • 4K HDMI extender set capable of transmitting AV content over medium distances using a single category cable
  • HDBaseT Class B transmission supporting 1080p up to 70m/230ft
  • 4K UHD transmissions up to 4096x2160p 60Hz 4:2:0 8bit also supported up to 35m/115ft
  • 2ch PCM and multichannel audio supported up to DTS:X and Dolby Atmos™
  • 2-Way PoH allowing TX or RX to be remotely powered from either end for flexible installation options
  • Bidirectional IR pass-through
  • Bidirectional RS-232 pass-through
  • Supports CEC communication between devices*
  • Automatic EDID Management (copy from RX-TX)
  • Low profile 15mm chassis allows quicker, easier installation behind flush-mounted screens
  • Threaded bushings allow use of both standard and locking DC power plugs

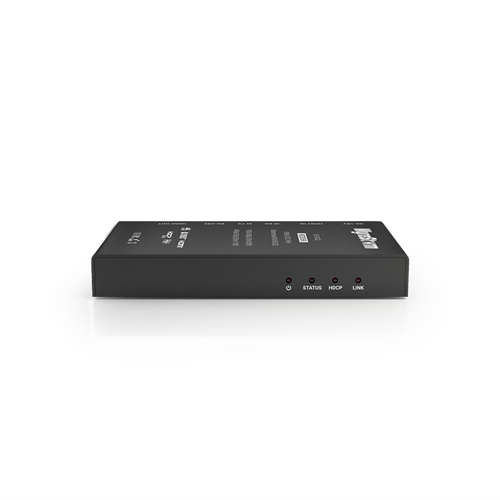

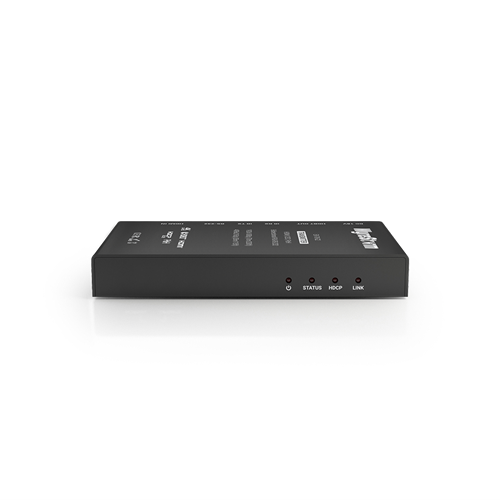

  • Visual LED indication for power supply to units, signal status to show established display connection, HDCP presence and HDBaseT link between devices
  • Cable termination follows IEEE-568B standards
  • Energy efficient universal power supply included
  • *While this product supports CEC, WyreStorm cannot guarantee compatibility with all forms of CEC communication.

SPECIFICATIONS

Audio and Video

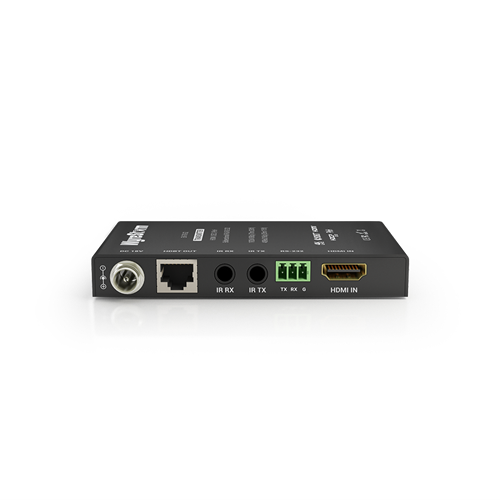

  • Inputs
    • (Transmitter) 1x HDMI 19-pin type A
    • (Receiver) 1x HDBaseT™ 8-pin RJ-45 female
  • Outputs
    • (Transmitter) 1x HDBaseT™ 8-pin RJ-45 female
    • (Receiver) 1x HDMI 19-pin type A
  • Output Video Encoding: HDBaseT™ Class B
  • Encoding Data Rate: 9.2Gbps
  • End to End Latency Formats: 10μs (micro seconds)
  • Audio Formats: 2ch PCM | Up to DTS-X and Dolby Atmos
  • Video Resolutions (Max)Video ResolutionsHDMICat6Cat6a/7
    1920x1080p @60Hz 12bit15m/49ft70m/230ft100m/328ft
    1920x1080p @60Hz 16bit7m/23ft70m/230ft100m/328ft
    3840x2160p @30Hz 8bit 4:4:47m/23ft35m/115ft70m/230ft
    3840x2160p @60Hz 8bit 4:2:07m/23ft35m/115ft70m/230ft
    4096x2160p @60Hz 8bit 4:2:07m/23ft35m/115ft70m/230ft
  • Supported Standards: DCI | RGB
  • Maximum Pixel Clock: HDMI: 300MHz | HDBaseT: 297MHz
Communication and Control
  • HDMI: HDMI 2.0 | HDCP (v1 chassis 1.4 | v2 chassis 2.2) | EDID Pass-through | CEC Pass-through | DVI/D supported with adapter (not included)
  • HDBaseT™: HDMI 2.0 | HDCP (v1 chassis 1.4 | v2 chassis 2.2) | EDID Pass-through | 2-way PoH | Bidirectional IR
  • IR: 1x IR TX: 3.5mm (1/8in) TS Mono | 1x IR RX: 3.5mm (1/8in) TRS Stereo
  • RS-232: 1x RS-232: 3-pin Phoenix (v2 chassis only)
Power
  • Power Supply: 18V DC 1A
  • Max Power Consumption: Transmitter: 7W | Receiver: 17W
  • PoH: IEEE 802.3af 15.4W Max | 2-way
Environmental
  • Operating Temperature:
    • 32°F ~ 113°F (0°C ~ 45°C)
    • 10% ~ 90%, non-condensing
  • StorageTemperature:
    • -4°F to ~ 158°F (-20°C ~ +70°C)
    • 10% ~ 90%, non-condensing
  • Maximum BTU: Transmitter: 24 BTU/hr | Receiver: 58 BTU/hr
  • v1 Chassisv2 Chassis
    Rack Units | Wall Box<1U<1U
    Height With | Without Feet15mm/0.6in15mm/0.6in
    Width With | Without Brackets109mm/4.3in108.8mm/4.29in
    Depth With | Without Handles64.2mm/2.53in64.2mm/2.53in
    Weight0.36kg/0.79lbs0.36kg/0.79lbs
Regulatory
  • Safety and Emission CE | FCC | RoHS
