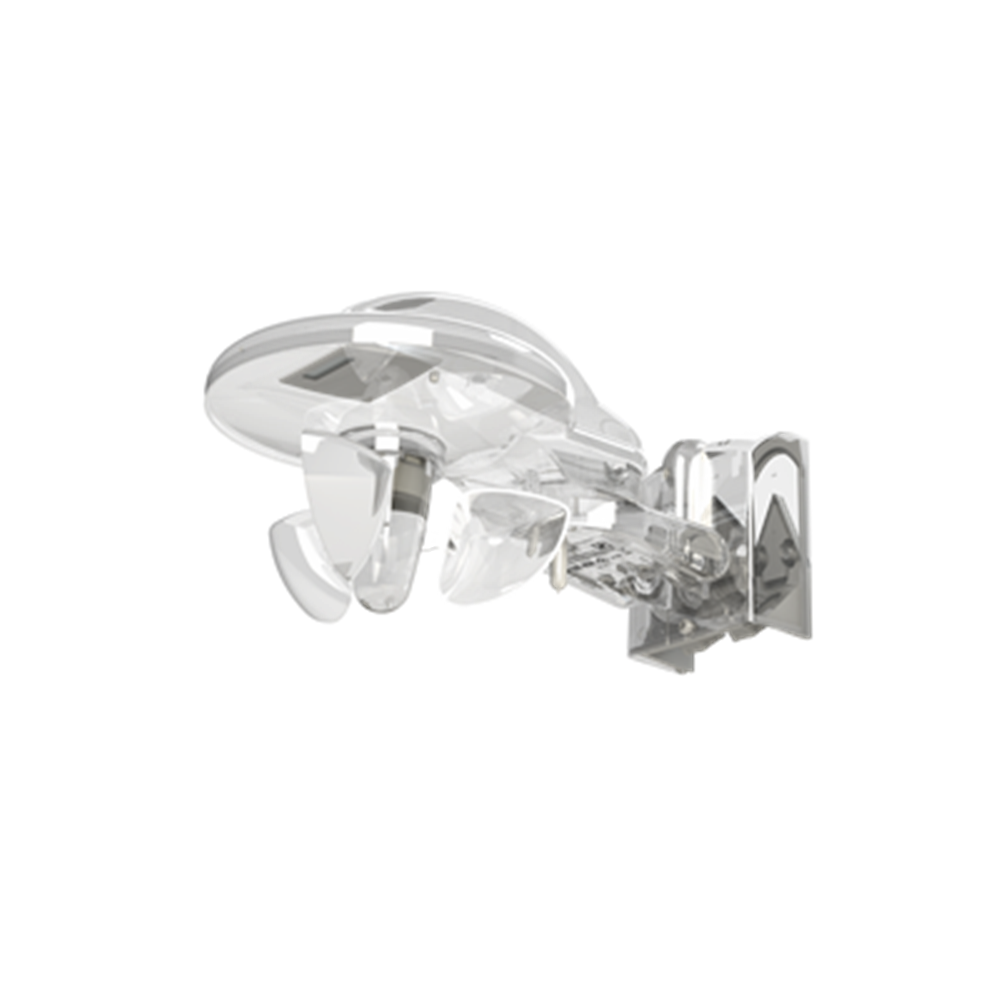

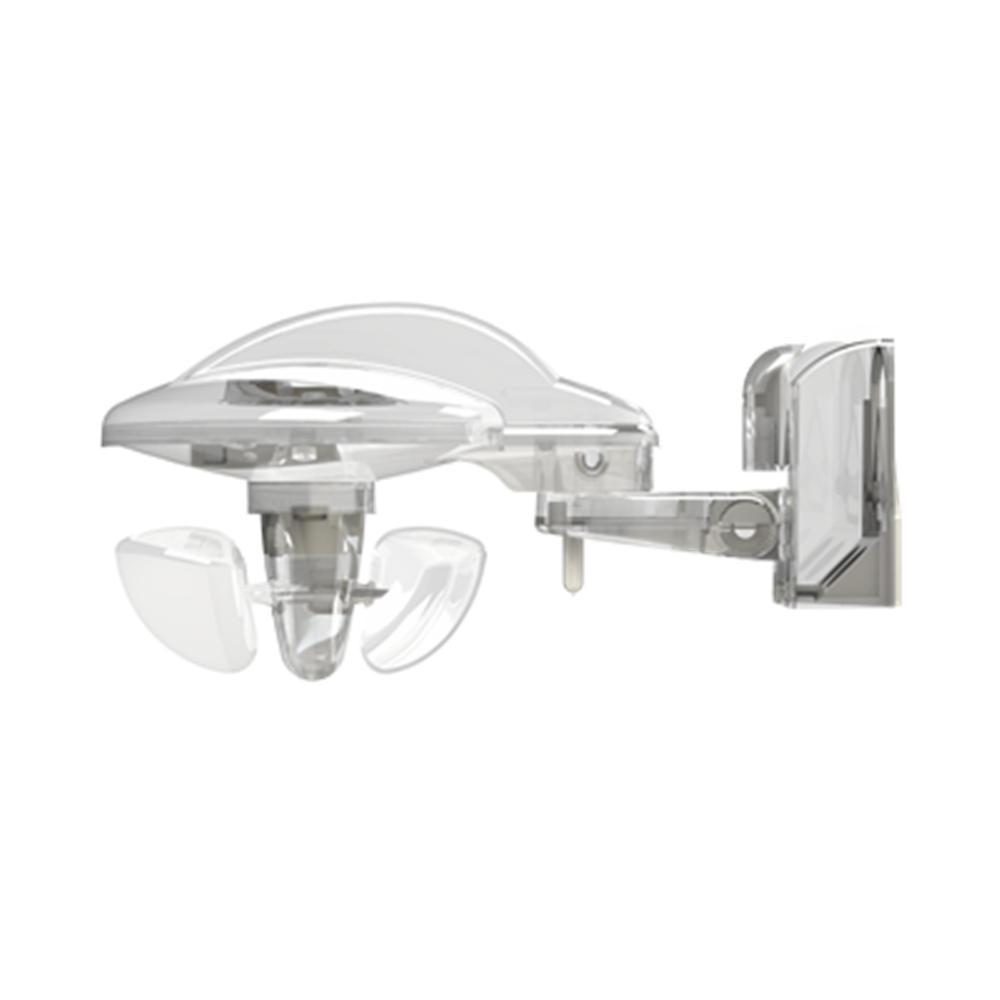

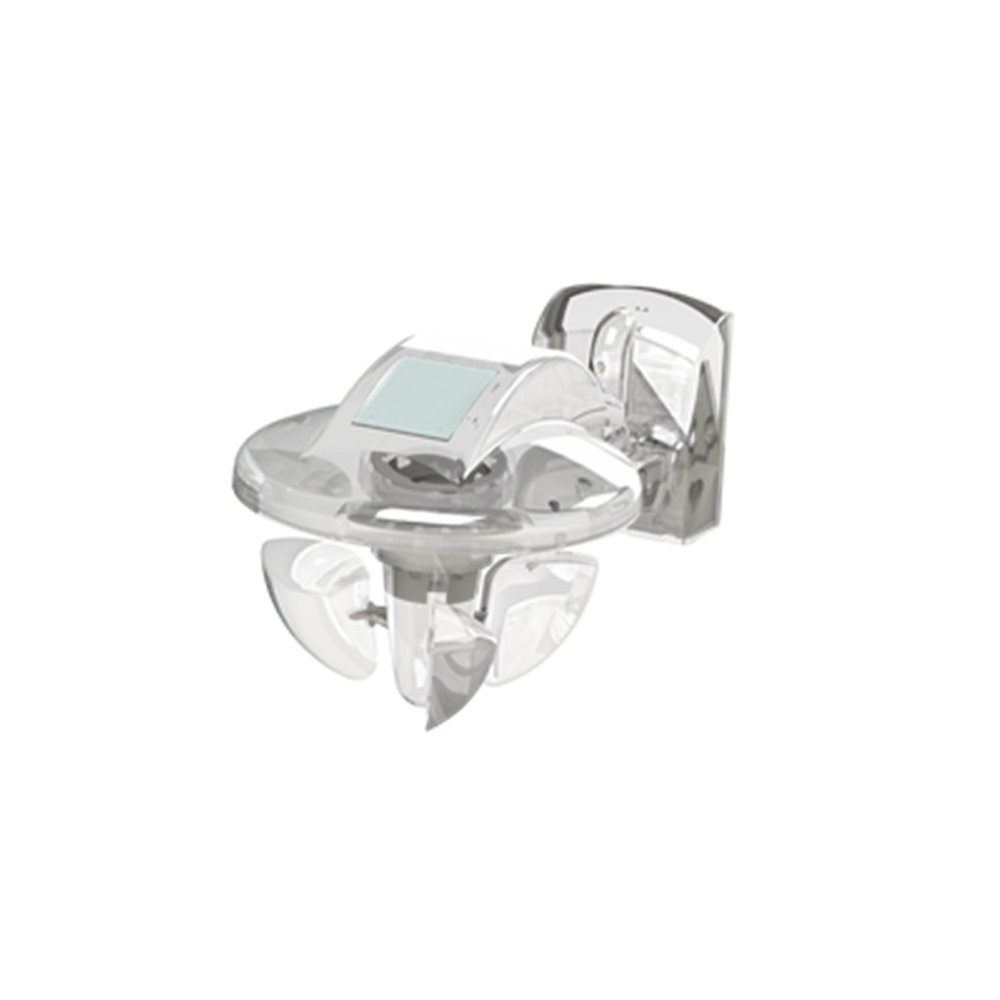

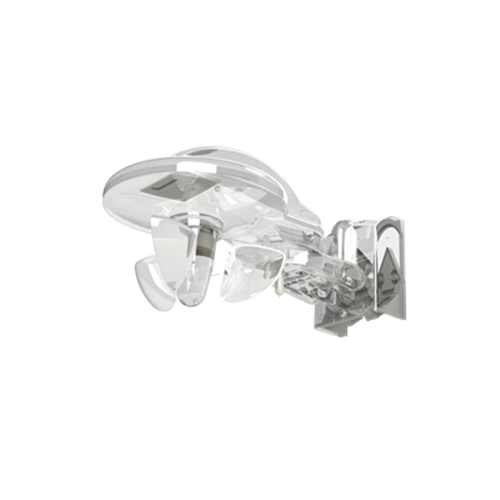

WEATHER STATION WS-1

Product Code: AB-WS-1

Brand
ABB FREE@HOME
$1,711.00 inc GST
RRP $1,711.00

Out of Stock
Increase value Decrease value
Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB-free@home

For recording and transmitting of brightness, temperature, wind speed and rain. Weather data can be linked with actuators to automatically control functions. ABB-free@home Weatherstation to record brightness, temperature, windspeed and rain.

With 3 Brightness Sensors.

With a temperature sensor.

With a windspeed sensor.

With a rain sensor.

Weather data can be linked with actuators to automatically control functions.

Weather data can be visualized in the free@home web interface and the free@home app.

The bus can be connected via enclosed terminal block.

ABB-free@home app for commissioning of basic and add-on parameters.

Programming only under connected bus voltage.

Wind speed measuring range 2 - 30 m/s

Brightness limiting values: 1 - 100.000 Lux

Bus voltage: 24 V

Power Supply for the Rain Sensor: 110V - 230V AC

Temperature range device: -20°C - 55°C

Storage temperature device: -20°C - 70°C


Installation
  • Mounting Type: Surface Mounted
  • Modular Components Included: Complete Device
Environmental
  • Ambient Air Temperature: Operation -20 ... +55 °C
  • Degree of Protection: IP44
Technical
  • Product Range: free@home
Electrical
  • Rated Voltage (Ur): 110 ... 230 V
  • Auxiliary Voltage AC/DC: 110 V AC/DC, 230 V AC/DC
  • Rated Frequency (f): 50 / 60 Hz
Dimensions
  • Product Net Width: 118 mm
  • Product Net Height: 230 mm
  • Product Net Depth / Length: 113 mm
  • Product Net Weight:  344.5 g
