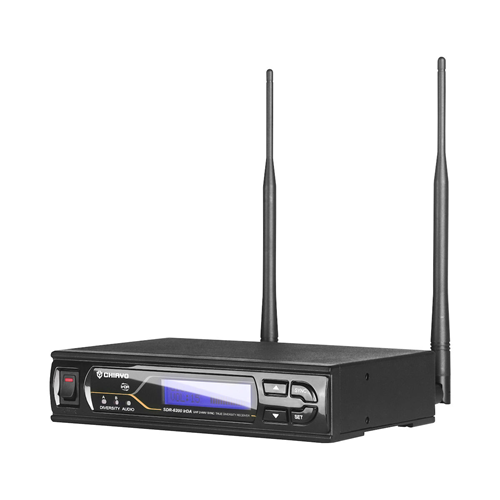

Uhf True Div Receiver 650Mhz SDR6200-6 Chiayo

Product Code: CH-SDR6200-6

Brand
Chiayo
RRP $499.00


Quantity In Cart: 0
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
Lifestyle - R
1
$141.90
Increase value Decrease value
Technical Specifications
Brands Chiayo Electronics
Microphone Type Receivers

SDR-6200 IrDA UHF 1/2 19" Single-Channel 2-Way Sync True Diversity Receiver

Patented IrDA® technology

  • Auto Scan quickly searches for an interference-free working channel.
  • World-first patented IrDA® technology provides rapid 2-way channel sync with one click.

Functions display

  • LCD: Channel, frequency,volume
  • LED: RF level, AF level, antenna selection

Intelligent Detected Mute Control

  • Pilotone, noise-detector and squelch circuits prevent noise, interference and improve operation distance.
  • True diversity reception for best performance and reliability.



Adjustable Squelch

Adjustable SQ. Increases receiver range with higher sensitivity and reduces interference with lower sensitivity.

Audio Output

  • Convenient gain/volume control(s).
  • Audio output jacks: balanced XLR or unbalanced 6.3mm.


Specifications

  • Model:    SDR-6200 IrDA
  • Chassis:    EIA standard 19" metal 1/2U
  • Receiving mode:    True diversity
  • Frequency range:
    • 5A - .520-526MHZ
    • 5B - .566-590MHZ
    • 6 - .650-675MHZ
  • Bandwidth:    25 MHz
  • Channel:    Single
  • Preset frequencies:    100
  • Channel sync:    2-way (RX ⇔ TX)
  • Frequency response:    50 Hz - 18 KHz
  • Peak deviation:    ± 40 KHz
  • Sensitivity:    S/N > 80 dBm at 10 dBμV
  • S/N ratio:    > 110 dB(A)
  • T.H.D.:    < 0.5% @ 1 KHz
  • Receiving antenna:    Detachable at rear-end, TNC female.
  • Oscillation:    PLL synthesized, frequency stability ± 0.005% (-10 - +60°C)
  • Squelch:    Pilotone & Noise-cancelling dual-squelch circuit
  • Audio connector:    Balanced XLR and unbalanced Ø6.3mm
  • Audio Output Adjustment:    Gain control circuit for adjustment of output volume
  • Power supply:    12V DC / 1.0A
  • Dimensions (mm):    200 x 150 x 44
  • Weight (kg):    0.63
