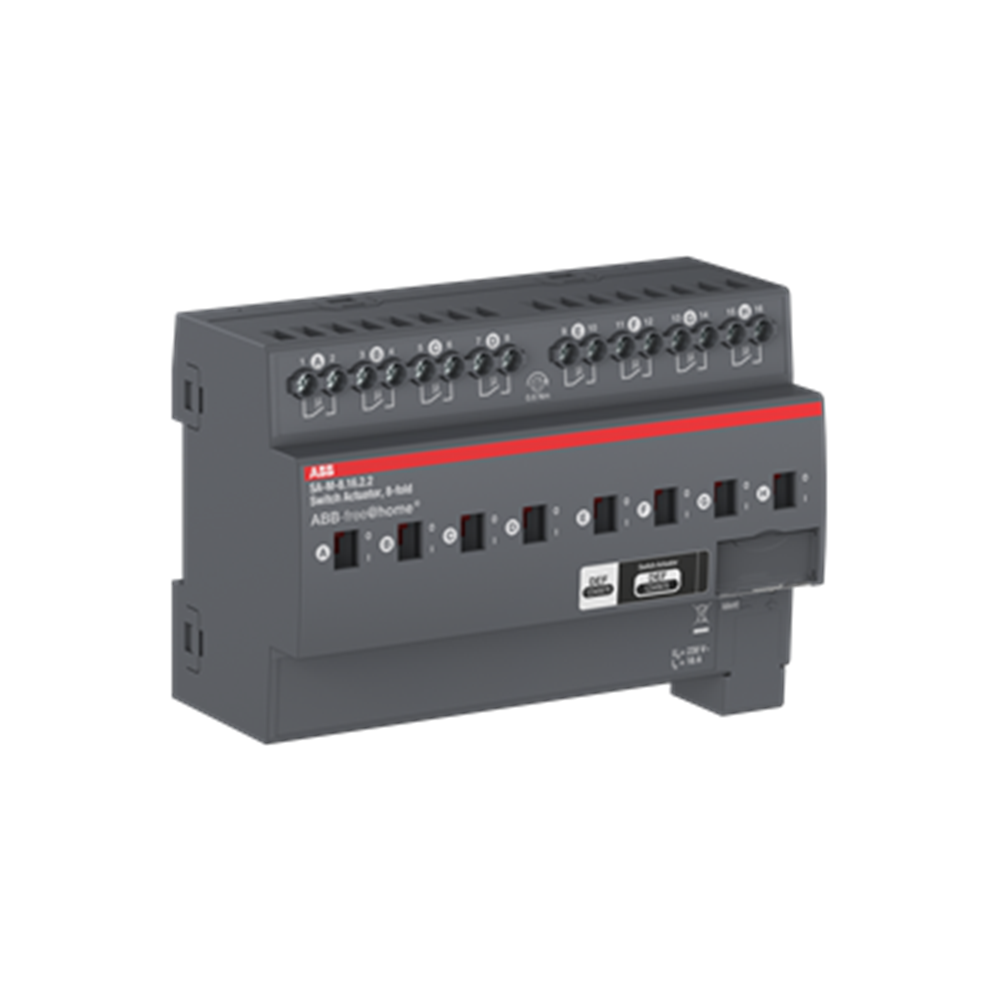

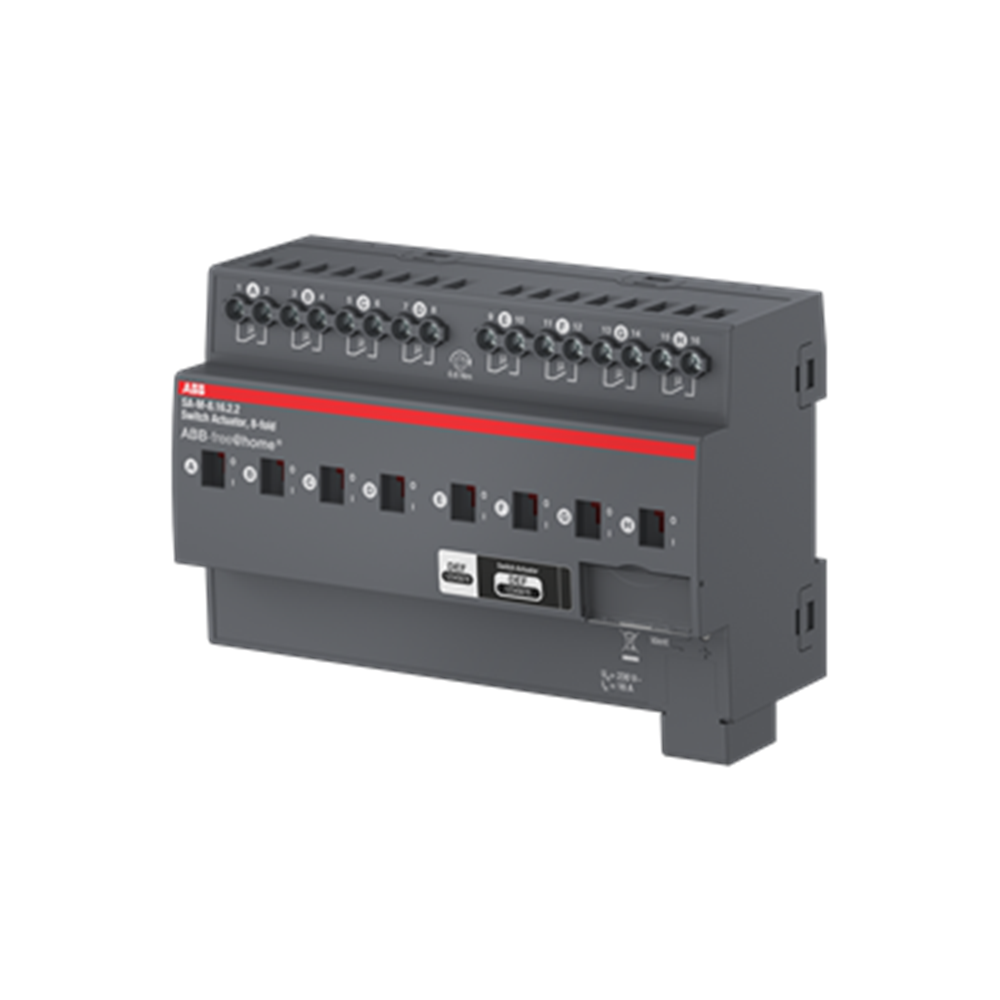

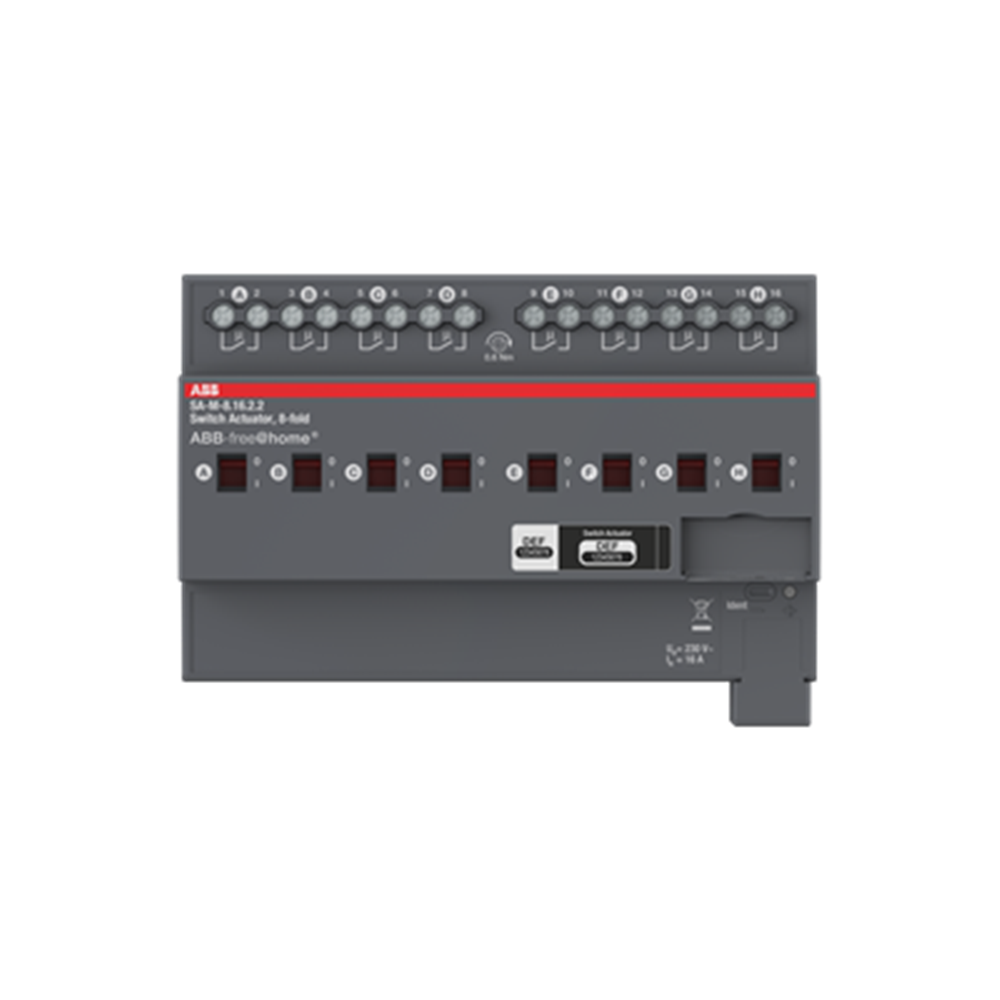

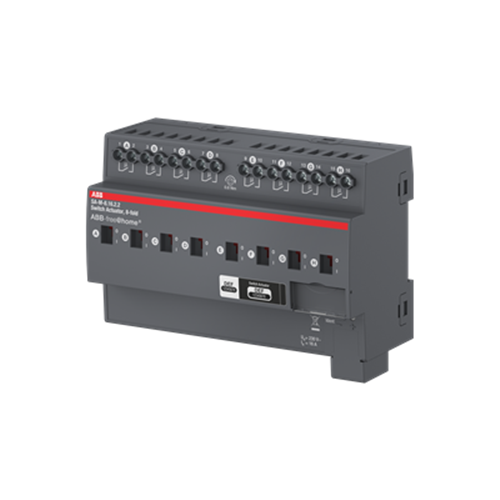

ABB SWITCH ACTUATOR, 8-FOLD, 16A, MDRC SA-M-8.16.2.2

Product Code: AB-SA-M-8.16.2.2

Brand
ABB FREE@HOME
RRP $727.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB-free@home

For switching 8 independent 127 V~/230 V~ loads. Each contact has a manual operation function independent of auxiliary voltage for additionally displaying the contact setting. The bus can be connected via enclosed terminal block.


Environmental
  • Degree of Protection: IP20
Technical
  • Contact Position Indication: ON / OFF
  • Number of Outputs: 8
  • Number of LEDs: 1
  • Maximum Number of Switching Outputs: 8
  • Compatible Bus Systems: free@home (TP)
  • Product Range: free@home
  • Manual Operation: Yes
  • Suitable for C-Load: No
  • Number of Batteries: 0
Electrical
  • Voltage Range: 230 V AC
  • Output Voltage (Uout): 230 V AC
  • Rated Current (In): 16 A
  • Maximum Switching Current: 16 A
  • Maximum Switching Power: 2500 W
  • Power Loss: 8 W
Design
  • Color: grey
Dimensions
  • Width in Number of Modular Spacings: 8.0
  • Product Net Width: 140 mm
  • Product Net Height: 90 mm
  • Product Net Depth / Length: 63.5 mm
  • Product Net Weight: 0.406 kg
  • Built-In Depth (t2): 63.5 mm
