  • JBL Synthesis - 8 x 300W Amp Class D Power Amplifier Bridgable to 600W SDA 8300

JBL Synthesis - 8 x 300W Amp Class D Power Amplifier Bridgable to 600W SDA 8300

Product Code: JB-SYNSDA8300

Brand
JBL
RRP $11,499.00


Quantity In Cart: 0
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
Lifestyle - R
2
$10,349.10
Increase value Decrease value
Technical Specifications
Brands JBL
Amplifier Type Power Amp
Channel count 8
Series Synthesis

SDA-8300

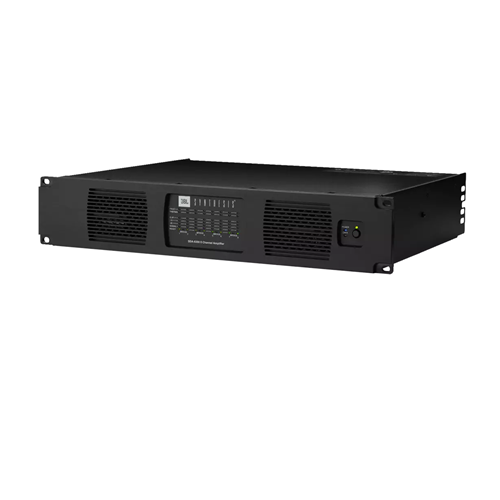

8-channel Bridgeable Class D Amplifier

The SDA-8300 is a versatile 8-channel Class D power amplifier designed to deliver maximum power while taking up minimal rack space. Each channel is rated to deliver 300W into 8 ohms and adjacent channel pairs can be bridged to deliver 600W into 8 ohms. This flexible channel configuration makes this an ideal amplifier to power LCR, surround, and height channel loudspeakers as well as in-wall subwoofers in JBL Synthesis immersive audio systems. Powerful built-in DSP allows for custom loudspeaker tuning and full external control allows for complete and easy system integration.


  • 300WPC INTO 8 OHMS, 600W INTO 8 OHMS BRIDGED CHANNEL PAIRS
  • BALANCED AND UNBALANCED ANALOG INPUTS VIA PHOENIX TERMINAL BLOCK CONNECTORS
  • BLU-LINK DIGITAL AUDIO NETWORKINGBARRIER STRIP SPEAKER TERMINALS
  • HIGH-EFFICIENCT INTERNAL COOLING FANS
  • ADVANCED DIGITAL SIGNAL PROCESSING WITH LIMITERS, DELAYS, AND ADDITIONAL CONTROL

SPECIFICATIONS

General

  • Cooling
    Continuously variable speed forced air, front to back airflow
  • Maximum Fan Noise (dBA SPL @ 1M)
    47
  • Required AC Mains (±10%)
    100Vrms - 240Vrms ~50/60Hz

Audio Specifications

  • Rated Output Power Into 8 Ohms
    300W
  • Rated Output Power Into 4 Ohms
    300W
  • Rated Output Power Into 2 Ohms
    150W
  • Bridged Output Power Into 8 Ohms
    600W
  • High Impedance
    70-Volt & 100-Volt Capable
  • Frequency Response (8Ω, 20Hz - 20kHz)
    ±0.25dB
  • Analog Input Signal to Noise Ratio
    104 dB
  • BLU link Input Signal to Noise Ratio (A-Weighted)
    >108dB
  • Total Harmonic Distortion (at full rated power, 20Hz - 20kHz)
    0.35%
  • Damping Factor (20Hz to100Hz)
    >1000
  • Input Impedance (nominal balanced, unbalanced)
    10kΩ, 5kΩ
  • Maximum Input Level before Compression (Low Gain Mode)
    (+)20dB
  • Load Impedance Stereo/Dual Mode
    2Ω - 16Ω; 70Vrms and 100Vrms
  • Load Impedance Bridge Mono
    4Ω - 16Ω; 140Vrms and 200Vrms

Dimensions

  • Width
    19 in. (48.3 cm)
  • Height
    3.5 in. (8.9 cm)
  • Depth
    14.25 in. ( 35.63 cm)
  • Weight
    23.5lbs (10.66kg)

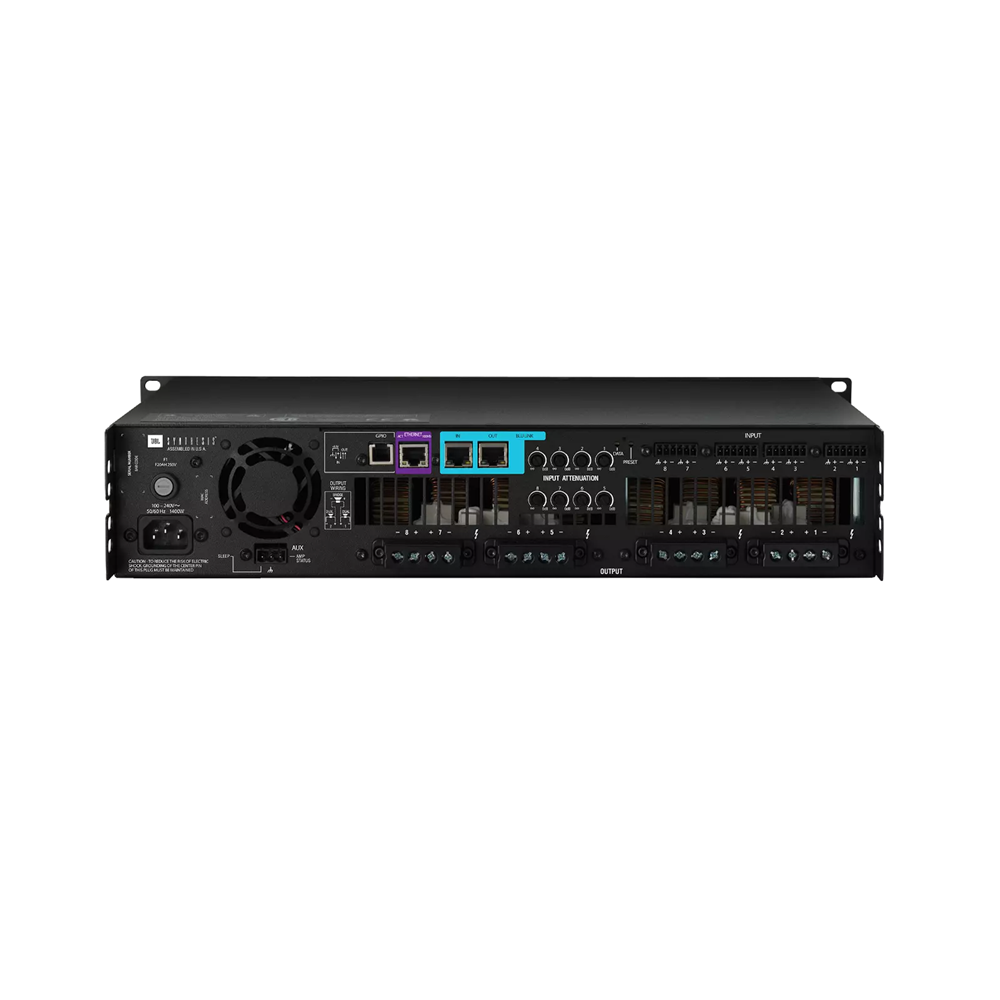

Control and Connection Specifications

  • Eight balanced line inputs
    6-pin block connectors (Two channels per block connector)
  • Eight speaker level outputs
    Terminal strip (accepts up to 10AWG wire)
  • BLU link Input/Output
    RJ-45 (Category 5e)
  • Ethernet
    RJ-45 (Category 5e)
  • Programmable General Purpose Input/Output Ports
    " 3-pin block connector (Enables SLEEP mode and monitoring of AMP STATUS)"
  • Power Connector
    15A IEC
