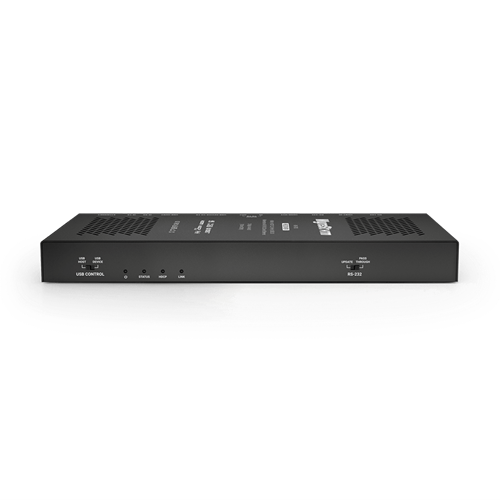

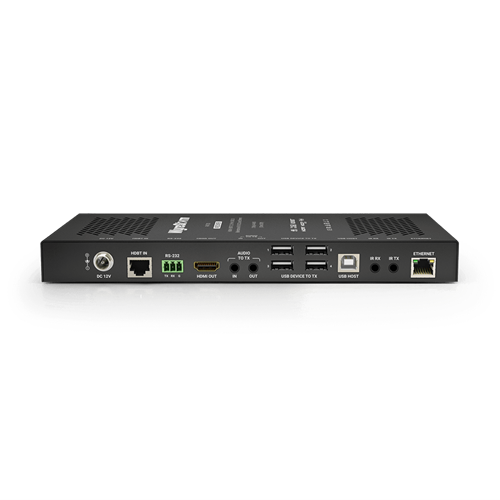

RX-700 4K HDR 4:4:4 HDBaseT 2.0 Receiver with USB inputs Ethernet & PoH 4K: 100m

Product Code: WY-RX700

Brand
Wyrestorm
RRP $1,159.00


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
5 Year
Technical Specifications
Brands WyreStorm
Input/output type HDBaseT
Input/output type HDMI
Input/output type USB
Product type Extenders
  • Details
  • Downloads
  • Where to Buy
  • Ordering

100m 4K60 HDBaseT DSC Receiver with USB


SKU: RX-700

Utilizing the best in HDBaseT technology, the RX-700 extends 5-Play functionality to your display device over 100m/328ft of Cat 6 cable.

Using DSC (display stream compression) the RX-700 can support HDMI video up to 2160p 4:4:4 at 60Hz without any visual loss in quality or latency. With HID’s and data transfer in mind, the RX-700 supports data transmission of USB 2.0 devices like HD webcams, smart whiteboards and flash drives alike.

  • CLASS C HDBASET
    Featuring the powerful HDBaseT 2.0 specification, UHD video & audio, Ethernet, control, USB and PoH are sent over distances of 100m/328ft. VESA recognized DSC at the point of transmission means lossless compression for HDMI & DP++ signals up to 18Gbps.
  • USB 2.0 PASS-THROUGH
    HDBaseT™ 2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities of 190Mbps for webcams or USB peripherals.
  • HDMI 2.0 MAXED OUT!
    Sporting an 18Gbps HDMI input, the RX-700 can support all UHD video signals up to and including 2160p 4:4:4/60, and high frame-rate HDR 12bit 4:2:2 up to 60Hz, along with multichannel audio up to DTS:X and Dolby Atmos.
  • DEDICATED AUDIO LANE
    Running in parallel to and completely separate to the HDMI signal within the HDBaseT link, the RX-700 can also support the bi-directional transmission of 2 separate stereo audio feeds, to and from the RX-700.

Features

  • HDBaseT Receiver supporting:
    • Content up to 4K/60 4:4:4 & RGB 8-bit
    • The latest HDR standards, including HDR-10, HLG and Dolby Vision at 30Hz
    • HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources
    • HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
    • 2160p 4:4:4 or 4:2:2 12-bit HDR content from a source to a display or projector using HDBaseT up to 100m/328ft
  • Automatically activated DSC lossless compression handles HDMI content up to 17.8Gbps
  • HDMI output supports bandwidths of up to 18Gbps
  • Compatible with DVI-I and DP++ v1.3 signals from compatible devices
  • Bidirectional USB 2.0 passthrough offering 190Mbps transfer and HID extension
  • Features 4 USB device ports
  • 10/100 Ethernet port for extension of LAN from TX
  • Bidirectional audio lane separate to HDMI signal sends and receives analog audio signals at either end (requires supporting TX device)
  • Bidirectional IR, RS-232 and CEC communication
  • DIP Switch selection for direction of USB control, long cable mode and firmware update
  • Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)
  • LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and transmission link
  • 2-way PoH (Power over HDBaseT) enables the receiver to be remotely powered by the transmitter or power a transmitter
  • Locking DC power jack
  • 12v DC PSU with US, UK, EU & AU Power cables included
  • Mounting brackets included

Specifications

TRANSMISSION

  • Transmission Encoding:    HDBaseT Class C | PAM16 Encoding
  • End to End Latency:    10µs
  • Maximum Transmission Bit Rate:    10.2Gbps

VIDEO

  • HDMI:    (v2.0b) TMDS | 600MHz Maximum with DSC (Display Stream Compression)
  • Input:    1x HDBT In: 8-pin RJ45
  • Output:    1x HDMI Out: 19-pin Type A Female
  • Maximum Pixel Clock:    HDMI: 600MHz | HDBaseT: 340MHz

Video Resolutions (Max) Video Resolution
1920x1080p @60Hz
2560x1440p @144Hz
3840x2160p @60Hz 8bit 4:4:4
3840x2160p @60Hz 10bit 4:2:0 HDR
3840x2160p @60Hz 12bit 4:2:2 HDR
HDMI
15m/49ft
15m/49ft
7m/23ft
5m/16ft
5m/16ft
Cat6
70m/230ft
100m/328ft
70m/230ft
70m/230ft
70m/230ft
Cat6a/7
100m/328ft
100m/328ft
100m/328ft
100m/328ft
100m/328ft

  • Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
  • Supported Standards:    DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100

AUDIO

  • Inputs:    1x Audio In: 3.5mm (1/8in) TRS Stereo 2ch audio over HDBaseT | 1-way to TX
  • Outputs:    1x Audio Out: 3.5mm (1/8in) TRS Stereo 2ch audio over HDBaseT | 1-way from RX
  • Audio Formats:    2ch PCM | Multichannel LPCM | DTS-X | Dolby Atmos
  • Maximum Sampling Rate:    192KHz
  • Maximum Audio Channels:    32
  • Audio Return Channel (ARC):    Not Supported

COMMUNICATION AND CONTROL

  • USB:
    • 1x Type B (host) | 4x Type A (device)*
    • USB direction must be set using switch before operation
    • USB hub compatible | Maximum: 7 devices, 23 endpoints
    • Maximum uplink speed: 190Mbps
    • *USB direction must be set using switch before operation
  • IR:    1x IR RX: 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono
  • RS-232:    1x RS-232: 3-pin Phoenix
  • HDCP:    Pass-Through, 2.3 Supported
  • EDID:    Pass-Through, RX > TX
  • Ethernet:    1x Ethernet: 8-pin RJ-45 Female | Bidirectional over HDBaseT | 100Mbps Supported
  • Consumer Electronics Control (CEC):    One-way display trigger from TX
  • Auto Low Latency Mode (ALLM):    Supported
  • Variable Refresh Rate (VRR):    Supported

POWER

  • Power Supply:    18V DC 3A
  • Max Power Consumption:    10W
  • Power-over-HDBaseT (PoH):    Supported, 2-way

ENVIRONMENTAL

  • Operating Temperature:    32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
  • Storage Temperature:    -4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
  • Maximum BTU:    2.93 BTU/hr

DIMENSIONS & WEIGHT (CONNECTOR HOUSING)

  • Installation:    Wall mounted | Free standing
  • Height:    25mm/0.98in
  • Width:    25mm/9.46in
  • Depth:    90mm/3.54in
  • Weight:    0.62kg/1.36lbs

REGULATORY

  • Safety and Emission:    CE | FCC | RoHS | RCM | EAC
