RTI MULTIVIEWER SCALER

Product Code: RT-VMS-741

Brand
RTI
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands RTI
Input/output type Displayport
Input/output type HDMI
Product type AV matrixes

RTI VMS-741 Multiviewer

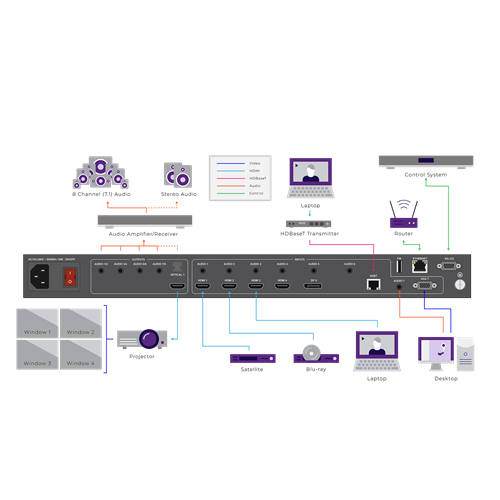

The VMS-741 4K MultiViewer is designed for meeting spaces, auditoriums, sports bars and other installations requiring a wide range of video sources with differing resolutions and formats. To meet the unique challenges of these environments, the unit combines AV switching with advanced scaling to display content from up to seven sources including HDMI, DisplayPort, VGA and an HDBaseT input.

The powerful multiviewer function allows up to four video sources to be displayed simultaneously on one display, with user selectable window layout combinations. The innovative VMS-741 also offers audio embedding and de-embedded audio outputs.

Included in the box:
VMS-741 4K MultiViewer, power cable (1), rack mount ears (2) with screws

Features

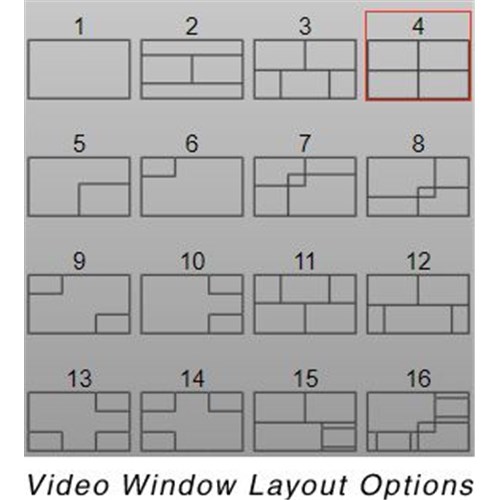

  • Multiviewer function allows up to 4 sources to be viewed simultaneously via 16 preset window layouts.
  • Built-in 4K scaler with up-scaling and down-scaling support.
  • Provides signal switching of up to 7 video sources (4 HDMI, 1 Display Port, 1 HDBaseT, 1 VGA).
  • HDMI 1.4 and is HDCP 1.4 compliant.
  • Supports multiple output resolutions up to 3840 x 2160 @ 30Hz.
  • Audio embedding via analog stereo inputs.
  • 8-channel (7.1) analog audio and TOSLINK optical audio outputs.
  • Supports up to 16 different preset window layouts.
  • Auto-scaling, auto-detect EDID.
  • Control via front panel buttons, RS-232, Ethernet or Web GUI.
  • USB port for firmware updates.
  • 1RU rack mountable.


Specifications

  • AC Input Voltage    100VAC ~ 240VAC, 15 Watts
  • Mounting    Rack mount, 1 RU or free standing
  • Dimensions WxHxD    17.28″ (439mm) x 1.73″ (44mm) x 10.98″ (279mm)
  • Weight    7.27lb (3.5kg)
  • Operating Temperature    -10 to +40°C / +14 to +104°F
  • Operating Humidity    5% to 95% Non-condensing

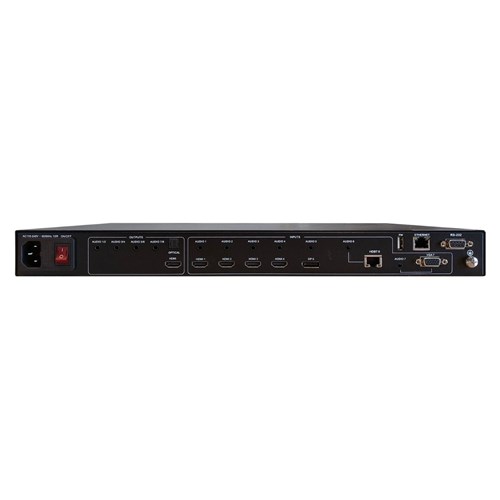

  • Digital Video Input    Four HDMI/MHL, One Display Port
  • HDBaseT Input    One, RJ45
  • Analog Video Input    One VGA, female 15-pin (VGA, YPbPr, Composite Video)
  • Video Output    One HDMI
  • Output Resolution Range    Up to 4K@30Hz
  • Compliance    HDMI 1.4, HDCP 1.4
  • Audio Line Input    Seven, Analog Stereo (3.5mm jack)
  • Audio Input Impedance    20kΩ
  • Audio Output    Embedded, HDMI
  • Digital Optical Audio, TOSLINK
  • 8 Channel (7.1 Surround) Analog Audio, 4 x 3.5 mm Stereo Audio Jack
  • Frequency Response    20Hz to 20KHz

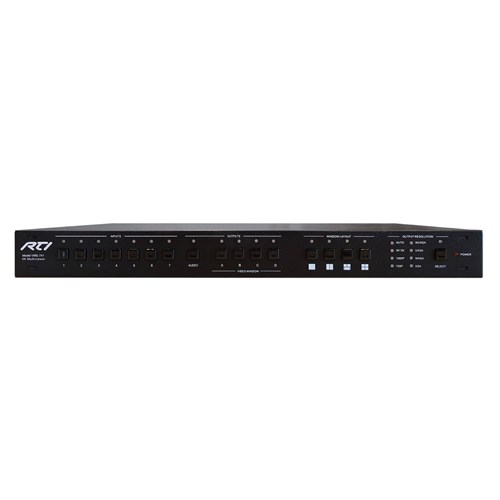

  • Front Panel Control    17 Buttons for Input Select and Menu
  • RS-232    One, Bi-directional (9-pin D-sub connector)
  • Ethernet Port    One, 10/100Base-T (RJ45)
  • Warranty    Three Years (Parts & Labor)
