RTI EIGHT DEVICE CONNECTING BLOCK (FOR USE WITH RTI IN-WALL CONTROLLERS)

Product Code: RT-CB-8

Brand
RTI
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
Lifestyle - R
1
$356.15
Increase value Decrease value
Technical Specifications
Brands RTI
Accessory Type Installation Accessory

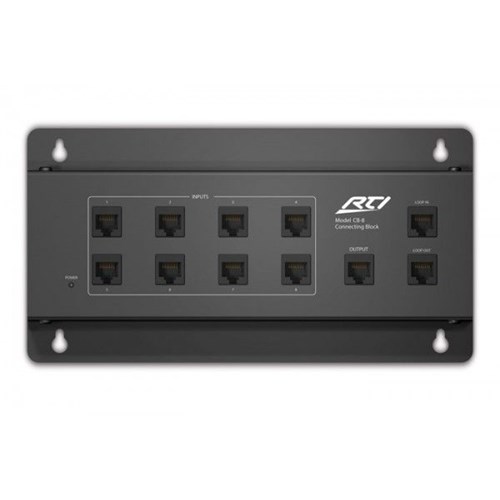

CB-8 Connecting Block


The CB-8 is an installation accessory designed to provide convenient and reliable power connections for up to eight (8) RTI in-wall keypads, touchpanels and other devices. In addition to providing power, the CB-8 combines and routes the infrared outputs from the touchpanels to a single output for connection to an RTI control processor. Multiple CB-8 units can be daisy-chained for connecting more than eight devices. A 4.3 Amp, 16VDC power supply is included.


Features

  • Includes 16VDC, 4.0 Amp power supply capable of powering up to eight RTI in-wall keypads, in-wall controller and other devices*.
  • Combines and routes the infrared output from in-wall system controllers to a single output for connection to an RTI control processor
  • Multiple CB-8 units can be daisy-chained for connecting more than eight devices
  • RJ45 ports for easy connection of devices

* NOTE - The maximum number of in-wall controllers varies by model. Find the latest cabling/power information in the operation guide found

Specifications

  • Power:    +16VDC, 4.0A
  • Maximum Current per Port:    1.5A
  • Enclosure:    Formed Steel, black powder coating
  • Mounting:    Wall-mount or free standing
  • Dimensions (H x W):    5.0" (127mm) x 9.4 " (239mm)
  • Operating Temperature:    +32°F to +122°F (0°C to +50°C)
  • Operating Humidity:    5% to 95% Non-condensing
  • Weight:    24.7oz (700g)
  • Warranty:    Three Years (Parts & Labor)
