RTI CONTROL PORT CONNECTING BLOCK

Product Code: RT-CPB-1

Brand
RTI
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
Lifestyle - R
2
$313.65
Increase value Decrease value
Technical Specifications
Brands RTI
Accessory Type Installation Accessory

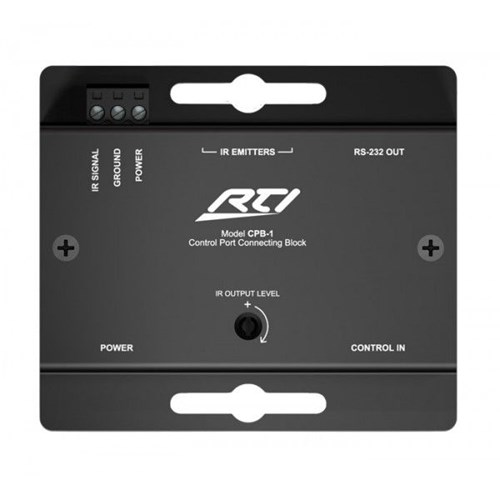

CPB-1 Control Port Connecting Block

The CPB-1 Control Port Connecting Block provides a cost effective solution for one-room installations such as classrooms, that require an in-wall controller and both infrared and RS-232 control of local devices. The CPB-1 provides power to one RTI user interface and has two output ports that allow the connection of up to two single or dual infrared emitters. It also incorporates an RS-232 port for control of devices without the need of an RTI processor.

Features

  • Provides power for one in-wall controller
  • Two infrared emitter outputs
  • Variable IR output power
  • Allows RTI in-wall controllers to communicate via one-way RS232 to devices without a processor
  • Steel construction
  • 12VDC power supply included

Specifications

  • Power:    +12-16VDC
  • Number of IR Output Ports:    Two
  • Output Ports:
    • 3.5mm jacks
    • Works with industry-standard IR emitters
  • IR Output Drive:    100mA maximum (per port, adjustable)
  • Infrared Input:    Compatible with industry-standard repeaters and receivers
  • RS-232:
    • RJ45 Connection
    • Includes RJ45 to Db9 adapter
  • Enclosure:    Formed steel, black powder coating
  • Mounting:    Wall-mount or free standing
  • Dimensions (W x H x D:    4.0” (102mm) x 3.5” (89mm) x 1.1” (28mm)
  • Operating Temperature:    +32°F to +122°F (0°C to +50°C)
  • Operating Humidity:    5% to 95% Non-condensing
  • Weight:    8.4oz (238g)
  • Warranty:    Three Years (Parts & Labor)
