RTI 4K INTELLIGENT VIDEOBAR

Product Code: RT-UCIVB50

Brand
RTI
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
3 Year
Technical Specifications
Brands RTI
Native Resolution 4K
  • Details
  • Downloads
  • Where to Buy
  • Ordering

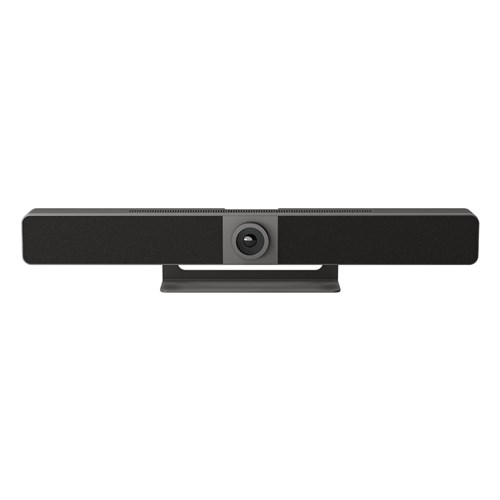

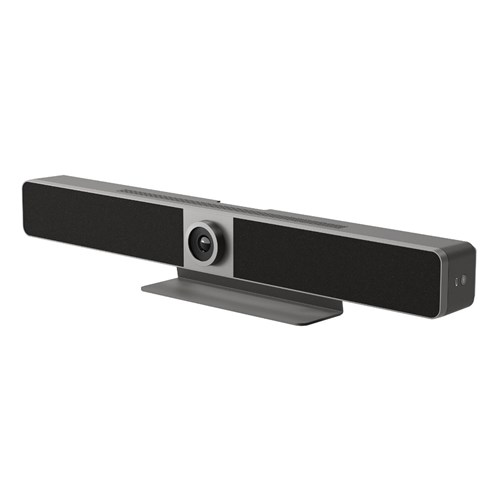

UC-IVB-50 4K Intelligent Video Bar



Elevate your meeting space with effortless wireless presentation, vivid 4K video, and crystal clear audio.

The Intelligent Video Bar is the centerpiece of the RTI Intelligent Meetings Ecosystem. From huddle spaces to large conference rooms, RTI Intelligent Meetings enables the audio, video, and collaboration needed in today’s hybrid work environment.
Host more efficient, engaging, and productive meetings, elevating the quality of interactions and outcomes on your preferred conferencing platform.

Intuitive Meeting Room Experience

  • Clear instructions for all presenters, with Wi-Fi connectivity information for guests.
  • Customizable background.
  • Multiple connection types:
  • AirPlay®, Miracast®, PC, and Media Xchange™.


Included in the box:

  • UC-IVB-50 4K Intelligent Video Bar (1)
  • Bluetooth Remote Controller (1)
  • 16.4ft/5m 4K HDMI 2.0 Cable (1)
  • 16.4ft/5m USB 3.0 USB-A to USB-B Cable (1)
  • Magnetic Lens Cap (1)
  • Wall Mounting Kit (1)
  • DC 24V Power Adapter with US IEC cable (1)
  • Drywall anchors (4)
  • Mounting Screws (4)

Details

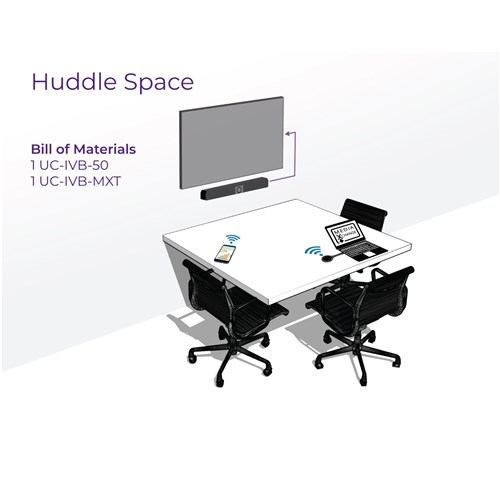

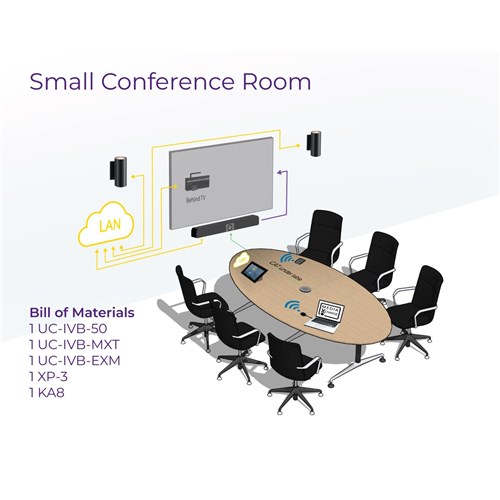

Your Meeting, Your Way
Both wired and wireless connections make the UC-IVB-50 an efficient collaboration tool in any meeting space, from huddle rooms to board rooms.

4K UHD Collaboration
Experience crystal clear 4K UHD with up to 2 different sources on the screen at any time.

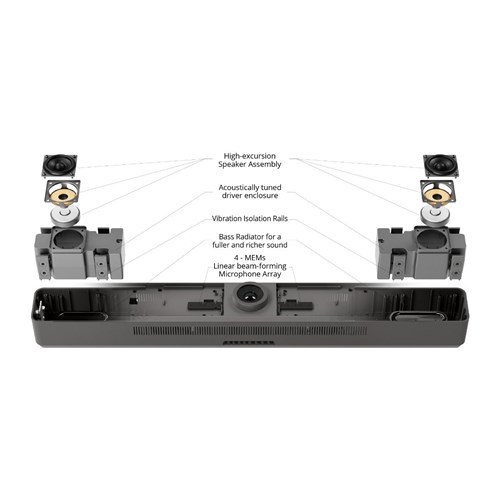

Microphone
4 distinct MEMS (Micro Electro-Mechanical Systems) microphone arrays work together to steer audio pickup wherever it’s needed, whether this is to an individual speaking or a group talking together.

Speaker Bar
2 full range 8-Watt speakers with bass radiators ensure that every voice is heard with full presence and clarity.

Intelligent Camera
Integrated AI software helps keep the 120° FOV 4K camera focused on the most important subjects in a meeting, with auto-framing and speaker/presenter tracking.

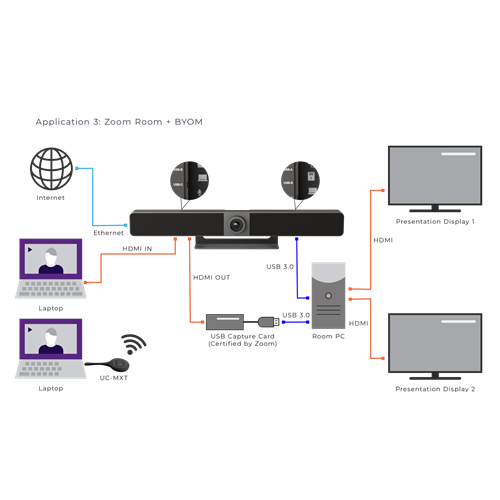

Conferencing Platform Ready
Universal OS connectivity is ready to work with Zoom, Microsoft Teams, WebEx and more.

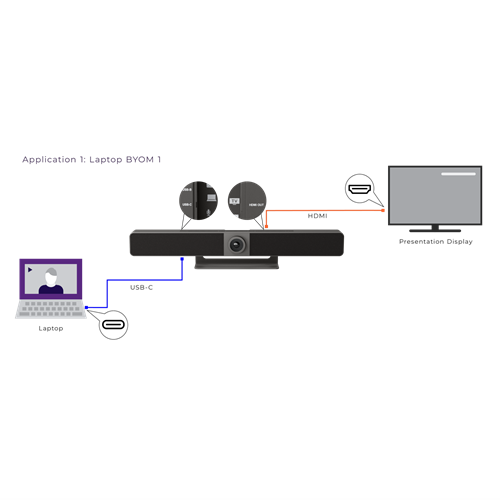

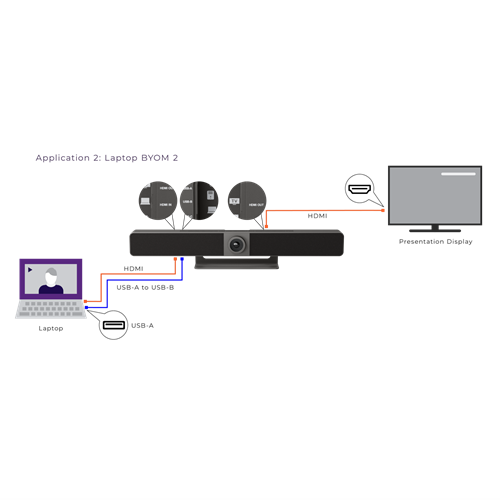

Wired BYOM Connectivity
Connect a local PC using HDMI and USB—or a single USB-C cable—for an easy BYOM (Bring Your Own Meeting) experience.

Wireless BYOD Connectivity
Mobile device ready with both AirPlay® and Miracast® means that meetings can get started quickly and without all the cable hassles.

Media Exchange Transmitter
Connect the Intelligent Video Bar to one or two RTI UC-IVB-MXT Media Exchange™ wireless transmitters (sold separately) to make sharing content from multiple users just a click away.

Integrated Control
Native RTI integration means the best setup and daily experience possible right out of the box.

Standalone
A built-in WEB interface and included remote control make this a complete, standalone solution without requiring a control system.

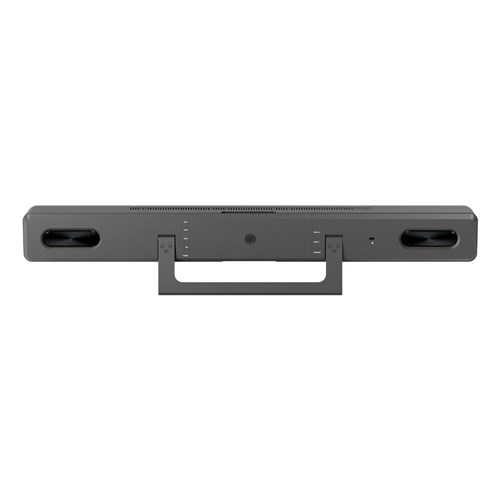

Mounting
Included are dual mounting solutions, on-wall and table-top, giving installers multiple options for placement.

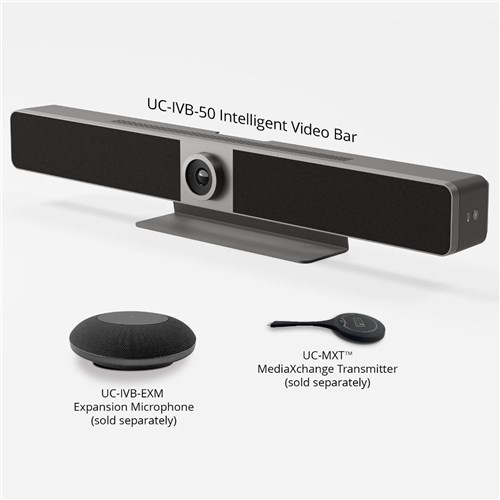

Expanded Options
Optional accessories are available, adding flexibility to the UC-IVB-50 4K Intelligent Video Bar

  • The UC-IVB-EXM expansion microphone addresses large areas where the distance between the video bar and attendees is greater than the optimal pick-up range of the built-in IUC-IVB-50 microphone array (~16.4ft/5m). Coverage is easily increased by daisy-chaining additional UC-IVB-EXM microphones (up to 5) to handle the largest meeting rooms.
  • The UC-IVB-MXT Media Xchange™ Transmitter adds a quick and easy way for participants to join and share content during a collaboration session or meeting. Connect the Media Xchange™ Transmitter to the USB-C port of any laptop or mobile device and press the share button to start. No software or network connection is necessary, making it the perfect companion to any UC-IVB-50 video bar.
  • The UC-IVB-TM is a TV mount that attaches to any VESA mounting bracket to seamlessly float the video bar right below the TV.

Key Features

Advanced Hardware

  • Collaborate clearly in 4K UHD.
  • Capture every voice with linear beam-forming microphone array.
  • Hear everything through two full-range 8-Watt speakers with bass radiators.
  • Focus on what is important with the Intelligent 4K Camera, featuring 120° Field-of-View and AI tracking.

Seamless Collaboration

  • Connectivity App Ready: Works with Zoom, Microsoft Teams, WebEx, and more.
  • Wired BYOM Connectivity: 4K UHD HDMI™ input and USB 3.0 or USB-C
  • Wireless BYOD Connectivity: Media Xchange™, AirPlay®, and Miracast®.
  • Media Xchange™: Wireless transmitter for click-and-go sharing.

Control

  • Native RTI integration enables full room control.
  • Use standalone with integrated web interface and remote control.
  • Full-featured API for infinite integration options.

Mounting Options

  • Wall and tabletop mount included; TV mount sold separately.
Specifications

Video

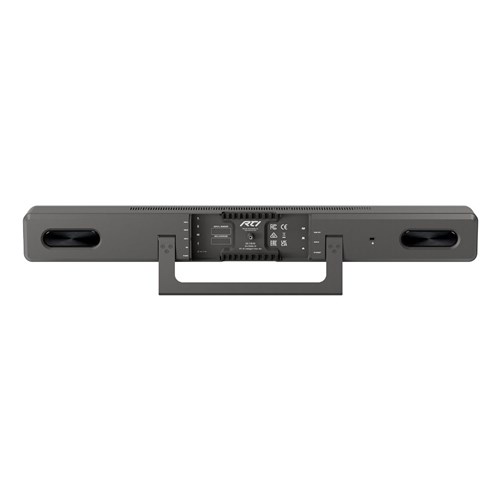

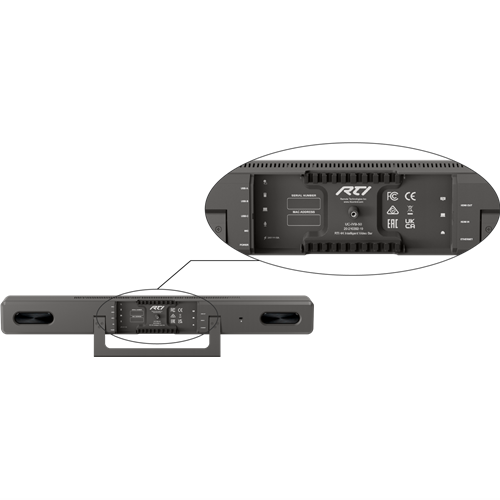

  • Interface:    1 x HDMI in, 1 x HDMI out, 1 x USB-C, 1 x USB-B, 1 x USB-A, 1 x Mic, 1 x GbE, 1 x DC
  • Video Resolutions:    up to 4K@30Hz
  • Output Video Encoding:    MJPEG / YUY2/NV12 / H.264 / H.265 | UVC 1.1

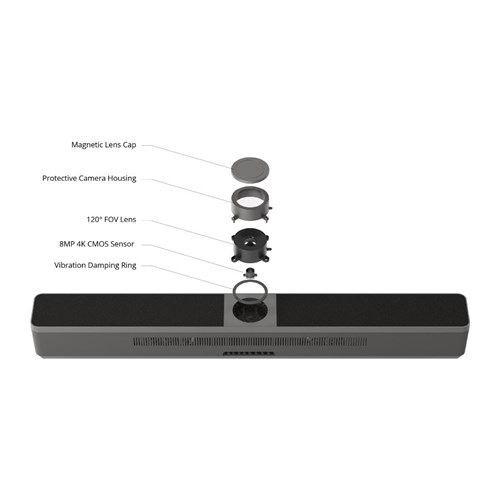

Camera and Sensor

  • Sensor:    8.0 MP CMOS
  • Viewing Angle:    120° FOV (Field of View)
  • ePTZ:    Supported | 5 x Digital Zoom
  • HDR:    Supported
  • Tracking Mode:    Auto Framing / Speaker Tracking / Presenter Tracking

Audio

  • Microphone:
    • 4 x MEMs Linear (180°) Microphone Arrays
    • Pick-up Range: 16.4ft/5m~26.2ft/8m
  • DSP:
    • ANS (Automatic Noise Suppression)
    • AEC (Automatic Echo Cancellation)
    • AGC (Automatic Gain Control)
  • Speaker:    2 x 8W with Bass Radiators

Communication and Control

  • HDMI:    HDMI 1.4, HDCP 2.2
  • USB-C:    USB 3.0 host with DP In and PD (60W max charging)
  • USB-A:    USB 3.0 Device
  • USB-B:    USB 3.0 Host
  • Micro USB-B:    Custom 10-Pin for UC-IVB-EXM
  • USB Protocol:    UAC, UVC, USB HID
  • Ethernet:    IEEE 802.3a / 1000Base-T (1GbE), RJ45
  • WiFi:    IEEE 802.11 a/b/g/n/ac
  • BYOD:    Media Xchange™, Airplay®, Miracast®
  • Compatible OS:
    • Windows 10 or above
    • Mac OS 10.15 or above
  • Control Method:    RTI Integration, Web UI, Bluetooth Remote Controller, or TCP/IP API

General

  • Mounting:    TV Mount (sold separately) or Wall-Mount with included Wall hanging Bracket or free standing
  • Tilt Adjustable:    Up to 30° (when used with the tabletop stand, wall-mount or TV mount)
  • Power Supply:    DC 24V 5A
  • Power Consumption:    100W (Max)
  • Dimensions (WxHxD):
    • 27.44” x 3.06” x 3.13"
    • 697mm x 78 mm x 80mm
  • Product Weight:    5.324lb/2.42kg
  • Operating Temperature:    +32 to +104°F / 0 to +40°C
  • Storage Temperature:    -4 to +140°F / -20 to +60°C
  • Operating Humidity:    5% to 95% Non-condensing
  • Warranty:    Three Years (Parts & Labor)
  • All features and specifications subject to change without notice.
