Roland Reac Merge Unit S4000M ROLAND

Product Code: RO-S4000M

Brand
Roland
RRP $1,799.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Roland

Enable new Digital Snake possibilities by merging up to four REAC devices. The S-4000M REAC Merge Unit allows up to four Digital Snake heads to be merged into a REAC stream where the master device recognizes it as single REAC slave unit.  This important technology enables distribution of multiple input/output units around a location, venue or stage for flexible point-to-point digital snake or V-Mixing System configurations.

Features:
  • Merge up to 4 REAC devices into a single REAC stream
  • Power REAC devices supporting embedded power
  • Assign channels automatically with auto map function
  • Patch input and output assignments using PC software or the M-480 / M-300 V-Mixer
  • Automatically assign input channels using the Auto Map feature

Merge up to four REAC devices together.

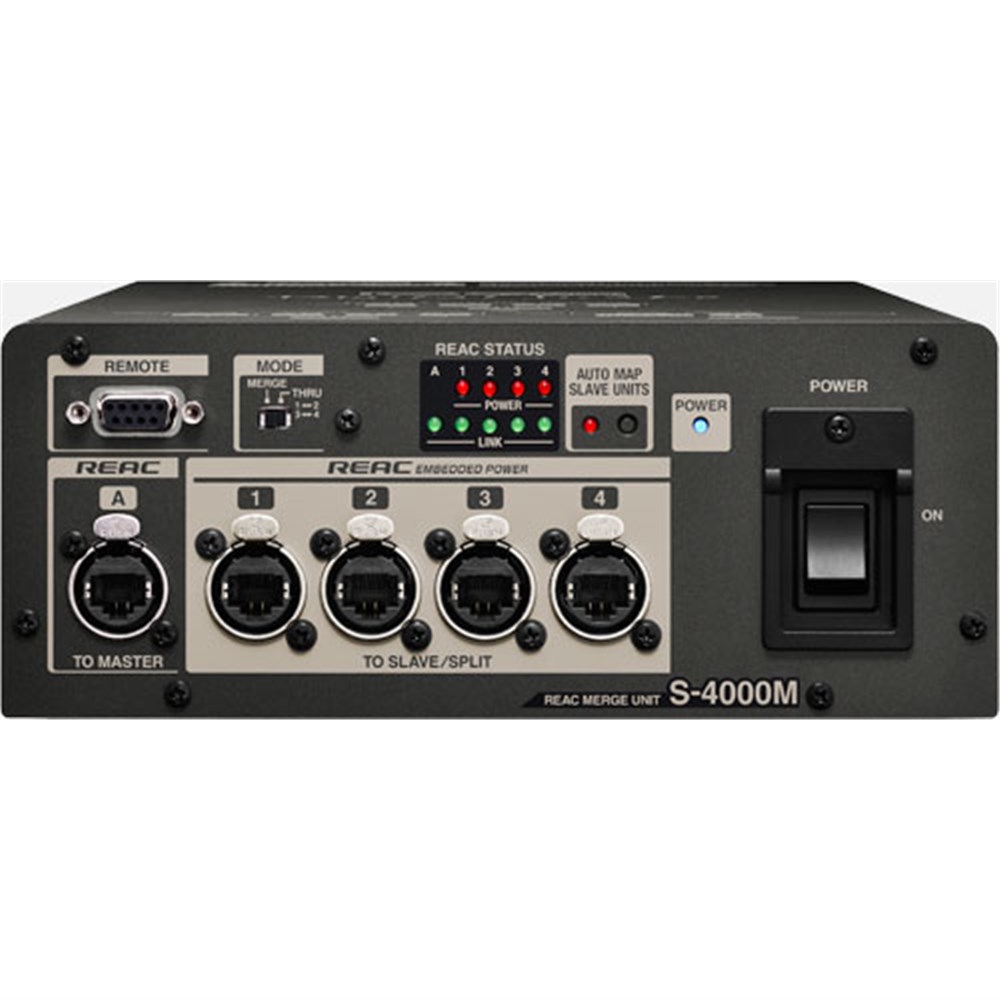

The S-4000M merges up to four Digital Snake heads, such as the S-0808, S-1608 and S-4000, and merges the input/ouput to a single REAC signal. Ports 1 to 4 supply REAC embedded power to compatible product such a s the S-0808. The intelligent Auto Map function assigns input channels automatically. REAC master devices recognize the S-4000M as a single REAC slave unit even when multiple digital snake heads are connected.

Distribute outputs to multiple devices.
The S-4000M also serves as a distributor of outputs and/or splitter. Any inputs returning from Port 1 (Master) are distributed to the outputs depending on the devices connected. When S-0808 sare connected, specific output assignments can be set.

Configure Routing from a PC or V-Mixer.
The M-480 / M-300 V-Mixer or dedicated PC Remote Control Software (S-4000RCS) configures routing, input gain, PAD and phantom power.
