REVEL L12XC LANDSCAPE BURIAL SUBWOOFER RVL12XC

Product Code: RE-ARCL12XC

Brand
Revel
RRP $5,299.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Revel
Series Architectural Series
Size 12"
Speaker Type Subwoofer
  • Details
  • Downloads
  • Where to Buy
  • Ordering

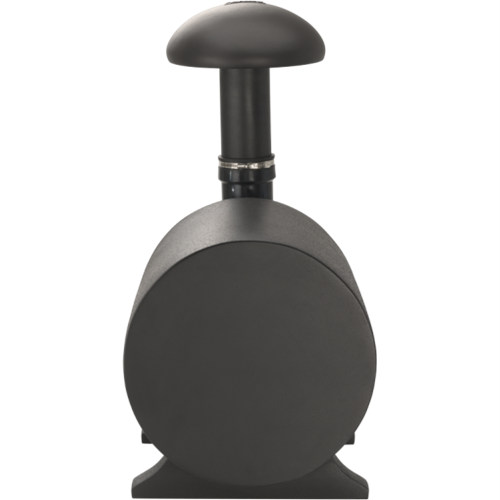

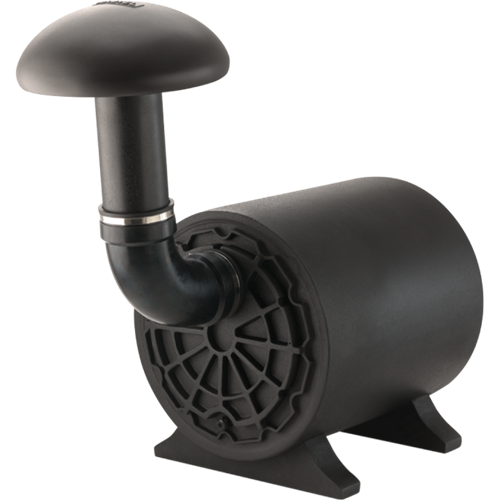

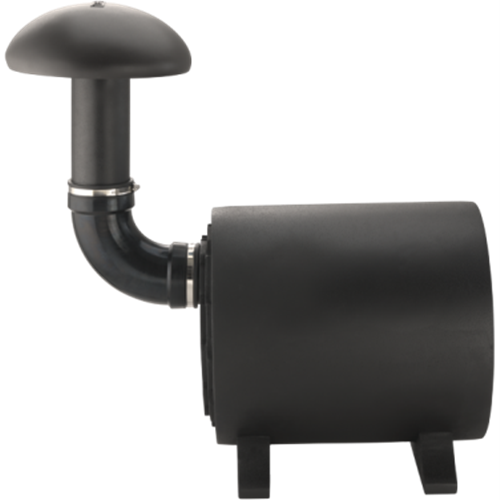

L12XC - Direct Burial Subwoofer

The L12XC is a powerful direct burial subwoofer with a 12-inch enclosure that can be operated in 6-ohm or constant line voltage systems with the separate 70V multi-tap transformer. The transformer is disguised as a garden rock, allowing it to seamlessly integrate into any landscape environment. Top-of-the line materials and construction provide powerful bass response that stands the test of time, as well as the elements. The L12XC is designed with extreme stealth in mind – only the bass vent canopy is visible.

L12XC Highlights

  • 12-inch / 305mm durable aluminum cone woofer
  • Stealth design - only the bass vent canopy is visible
  • IP67 rating on the underground enclosure; IP43 rating on the above-ground canopy.
  • 6-Ohm or 70V operation via external transformer with selectable power taps up to 250W
  • Composite housing with aluminum canopy and polymer port tube stack

General Specifications

  • Low-frequency Driver Components    12" Anodized Aluminum Cone Subwoofer
  • Recommended Amplifier Power    250W RMS
  • Sensitivity    86dB (2.83V @1M) Without Transformer
  • Voltage Gain    70V
  • Weight    66.4 lbs / 30.1kg
  • Dimensions (H x W x D)    34.6”/18”/35” (87.8cm/45.5cm/88.7cm)
  • Frequency Response (+/-3dB)    25Hz – 100kHz @-3dB
  • Transformer Taps    31.75W, 62.5W, 125W, 250W
  • Impedance    6 Ohm Without Transformer
