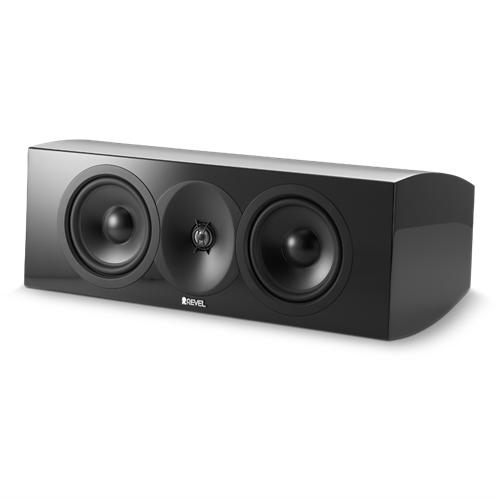

REVEL Concerta C25 Black Gloss Centre Speaker RVC25BG (Each)

Product Code: RE-CONC25BLK

Brand
Revel
RRP $1,399.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Revel
Series Concerta2
Size 2 x 5.25"
Speaker Type Centre

C25

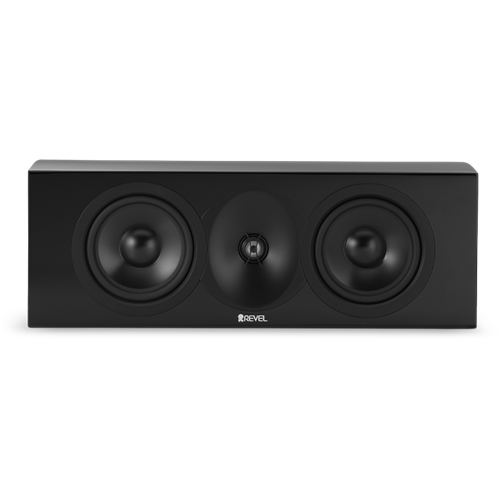

2-way Dual 5.25" Center Channel Loudspeaker

C25 Highlights

  • Derived from Revel’s award-winning Performa3 Series Loudspeakers
  • 5.25"deep anodized aluminum cone woofers
  • 1" Aluminum Tweeter
  • Fourth generation Acoustic Lens waveguides
  • Computer optimized driver positioning and network integration
  • No visible fasteners on the front, top or side panels

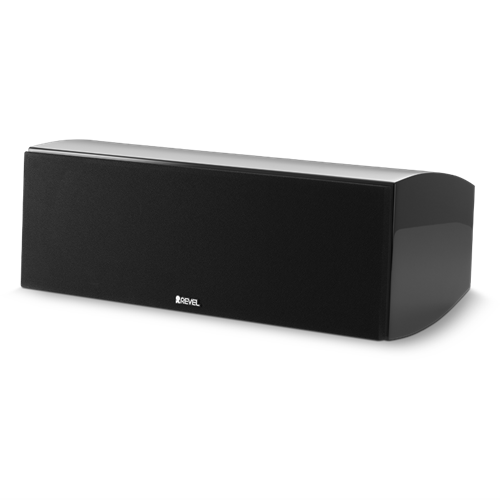

  • Magnetic grilles with brushed metallic logos
  • High-gloss Black and High-gloss White painted finishes

The C25 is a true full range 2-way 5.25” center channel loudspeaker that was designed to be the true acoustical anchor for the entire system. It will deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.

High frequency response is supported by 1 inch aluminum dome tweeters that were derived from Revel’s Performa3 series. Low/Mid range frequency response is supported by 5.25” Aluminum cone woofers featuring low-distortion motor-structures for greater clarity and accuracy with improved sensitivity and output capability.

The patented wave guide design improves tweeter to woofer blend and significantly improves off-axis response for consistent performance over a wide listening area. In doing this we sacrificed no details by making sure no fasteners were visible allowing the speaker to show enhancing smooth lines of the cabinet and magnetically attached grilles. To finish the enclosure, we selected high gloss black and white finishes to highlight the features of this beautiful speaker.

General Specifications

  • Crossover Frequencies    2.1kHz
  • Enclosure Type    Sealed
  • High-frequency Driver Components    1" Aluminum Tweeter with Acoustic Lens Waveguide
  • Nominal Impedance    6 Ohms

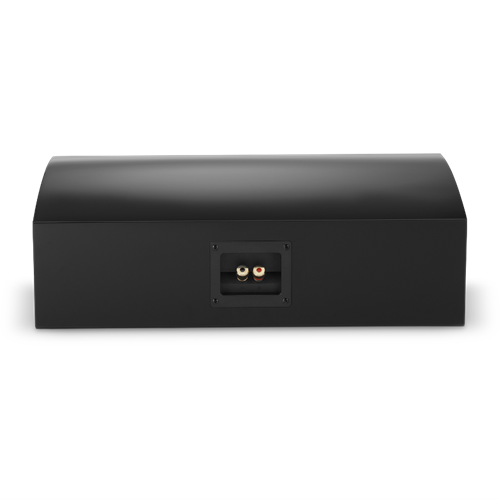

  • Input Connections    Five-way binding posts
  • Low Frequency Extension    80Hz, 68Hz, 48Hz (-3 dB, -6 dB, -10 dB)
  • Low-frequency Driver Components    2 x 5.25" Aluminum Cone Woofer
  • Recommended Amplifier Power    40-120W
  • Sensitivity    89dB (2.83V @ 1M)
  • Dimensions    7.25" x 19.45"x 10.1" (18cm x 49cm x 27cm)—Including Feet
  • Weight    20 lbs
