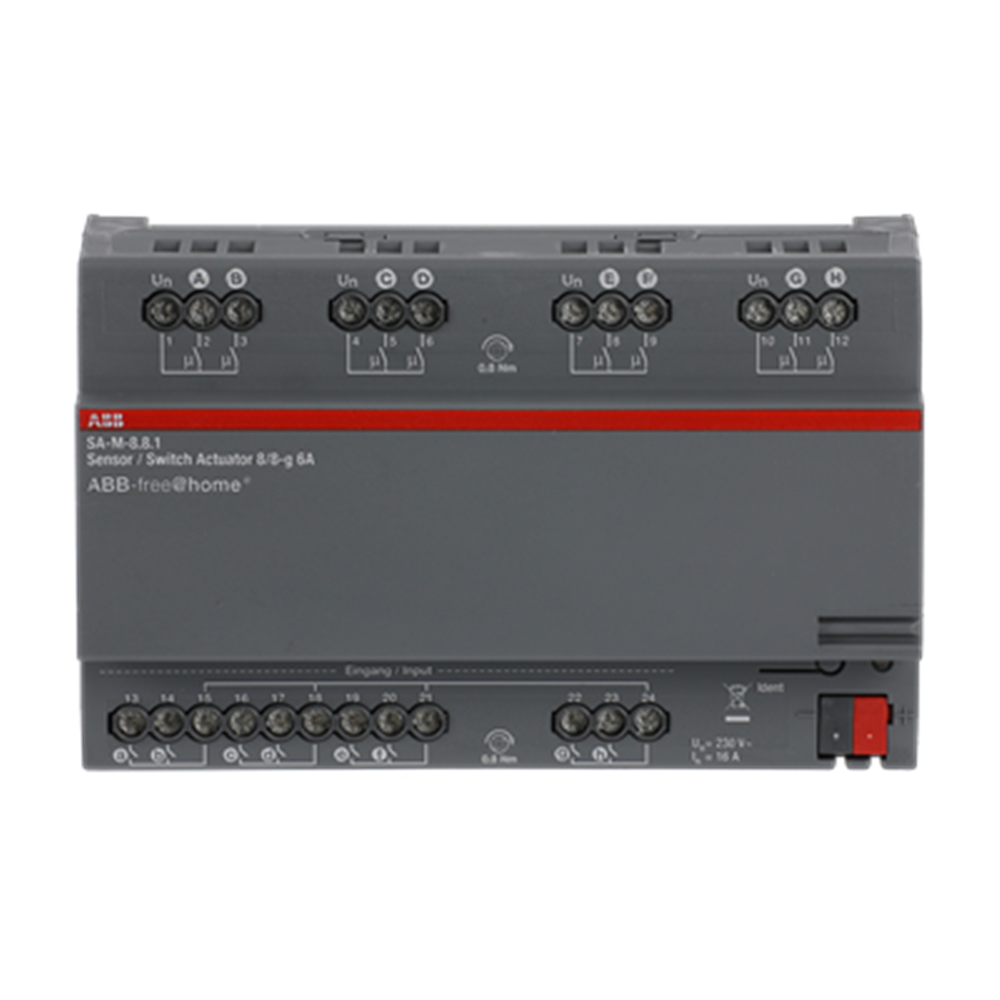

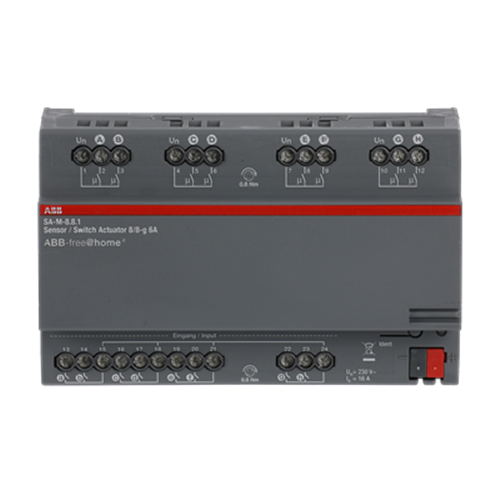

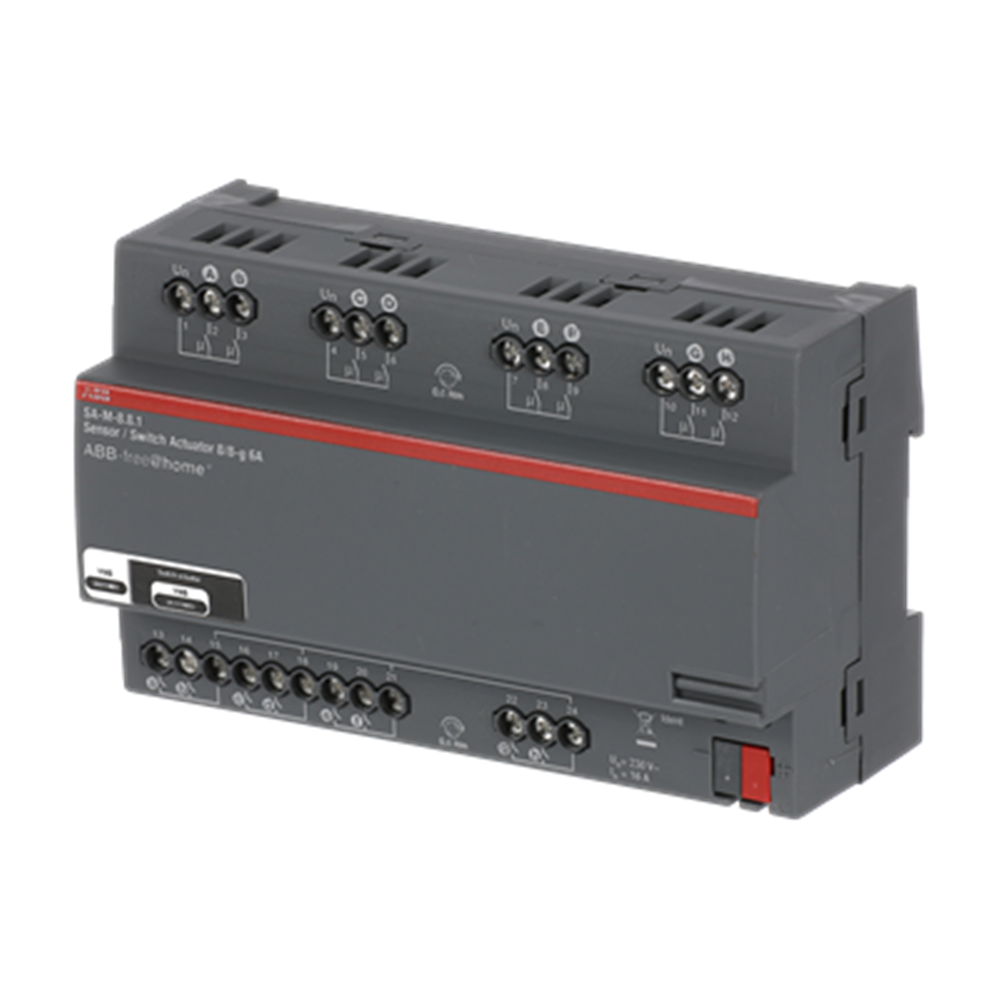

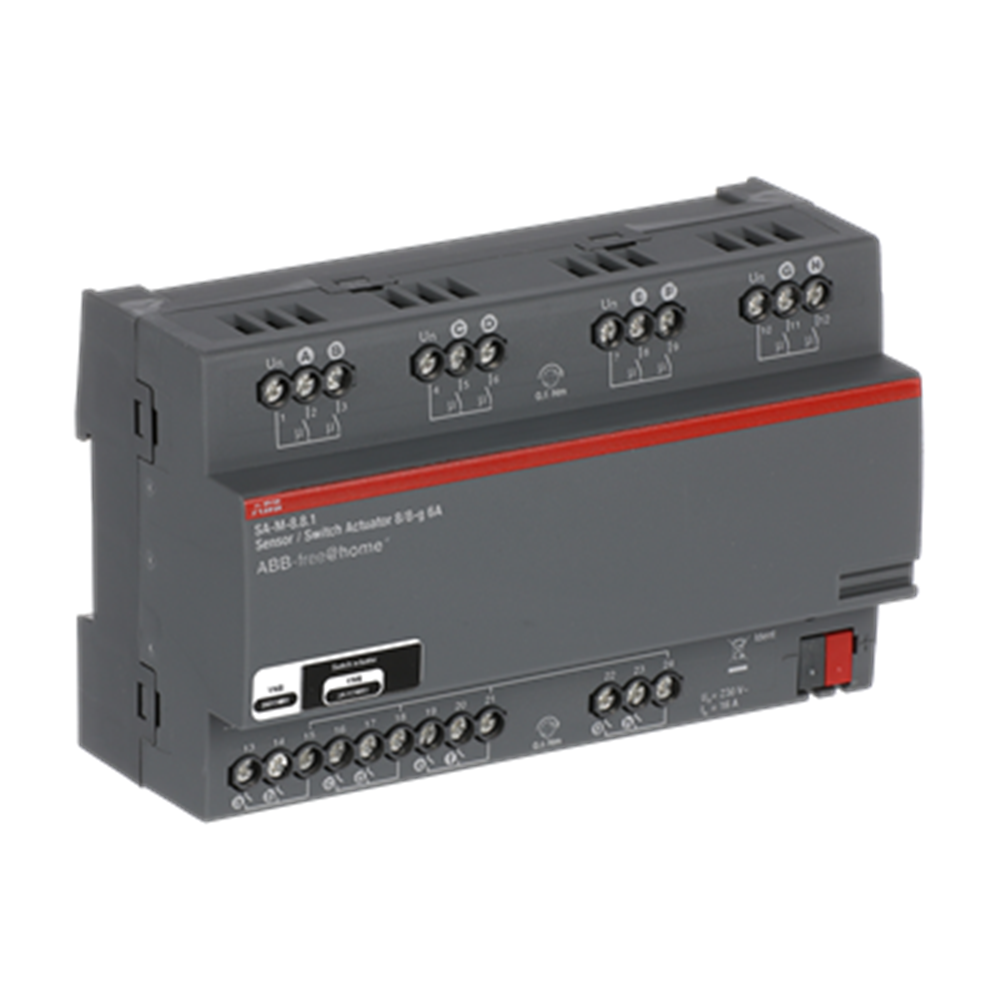

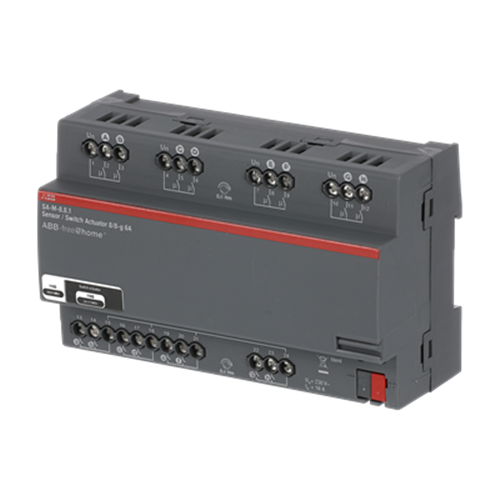

RELAY 8GANG, 6A / 8GANG BINARY INPUT, MDRC SA-M-8.8.1

Product Code: AB-SA-M-8.8.1

Brand
ABB FREE@HOME
RRP $1,128.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB-free@home

Combination device with 8 binary inputs and 8 switch actuators. Conventional push-buttons or auxiliary contacts can be connected to 8 channels.The information of the contact enquiry can be used for activating ABB-free@home® actuators or for recording status information. The contact polling voltage is made available by the device itself.

Installation
  • Mounting Type: DIN-Rail
Environmental
  • Degree of Protection: IP20
Technical
  • Contact Position Indication: ON / OFF
  • Number of Outputs: 8
  • Maximum Number of Switching Outputs: 8
  • Number of Digital Inputs: 8
  • Compatible Bus Systems: free@home (TP)
  • Product Range: free@home
  • Manual Operation: Yes
  • Suitable for C-Load: No
  • Number of Batteries: 0
Electrical
  • Voltage Range: 230 V
  • Output Voltage (Uout): 230 V AC
  • Rated Current (In): 6 A
  • Maximum Switching Current: 6 A
  • Maximum Switching Power: 1200 W
  • Power Loss: 2 W
Design
  • Color: grey
Dimensions
  • Width in Number of Modular Spacings: 8.0
  • Product Net Width: 144 mm
  • Product Net Height: 90 mm
  • Product Net Depth / Length: 64.5 mm
  • Product Net Weight: 0.3 kg
  • Built-In Depth (t2): 64.5 mm
