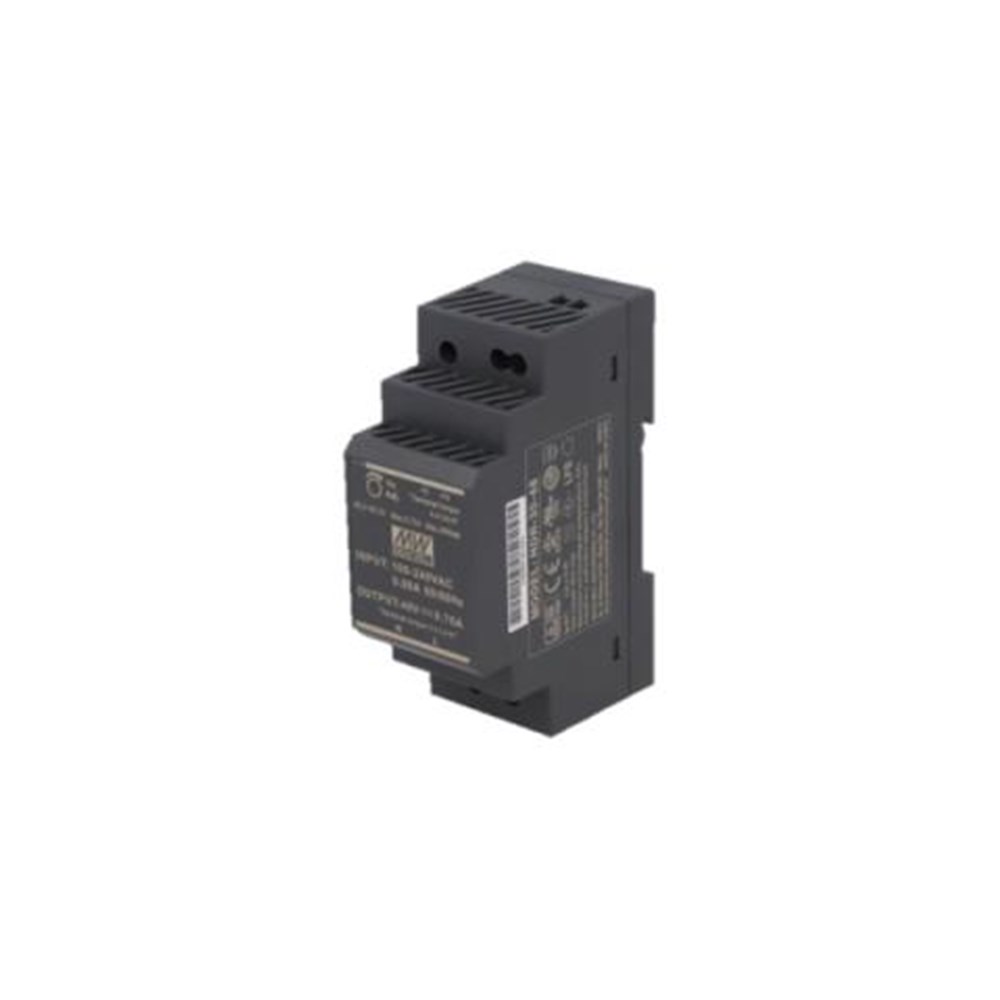

PSU, input 85-264 VAC IPS-AC1 Zenitel

Product Code: ZE-IPS-AC1

Brand
Zenitel
$200.00 inc GST
RRP $200.00

Out of Stock
Increase value Decrease value
Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Zenitel

In order to comply with UL safety requirements, ICX-500/510 has to be powered by a Limited Power Source (LPS) or PS2 (based on IEC/UL 62368-1 definition) or NEC Class 2 source of supply.  Zenitel's PSU IPS-AC1 (1002510000) meets this criterion.

PSU for ICX-500/510

  • DIN-Rail mounting
  • Ultra slim design with 35 mm (2SU width)
  • Input 85~264 VAC, Output 48VDC
  • No load power consumption <0.3W
  • Isolation class II
  • Pass LPS (Limited Power Source)
  • Protections : Short  circuit / Overload / Over voltage
  • Over voltage category III
  • LED indicator for power on
General
  • Size (WxHxD)    35 x 90 x 55 mm
  • Weight    0.12 kg including packaging
  • Nominal output voltage    48V DC
  • Voltage adjustment range    43.2 - 55.2 V DC - fully within the ICX-500 min/max voltage specification
  • Input voltage    85VAC - 264VAC
  • Rated power    36W
  • Operating Temperature and humidity    -30 °C to 70 °C; 20-90 % non-condensing
  • Storage Temperature and humidity    -40 °C to 85 °C; 10-95 % non-condensing
  • Operating altitude    2000 meters, operating temperature derates at 3.5°C/1000 meters above 2000 meters
  • Vibration    10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
  • Mounting    DIN rail TS-35/7.5 or 15 mountable
  • EMC Emission    EN55032, EN61000-3-2, EN61000-3-3
  • EMC Immunity    EN55024, EN55035, EN61000-6-2, EN61204-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11
  • Safety    UL60950-1, UL508, EN61558-2-16, IEC60950-1, EACTP TC 004, BSMI CNS14336-1
