Speakers

PSB PWM2 ON-WALL SPEAKER - BLACK (EACH)

Product Code: PS-BPWM2BLK

Brand
PSB Speakers
RRP $2,499.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands PSB Speakers
Series PWM Series
Size 2 x 4"
Speaker Type On-Wall
  • Details
  • Downloads
  • Where to Buy
  • Ordering

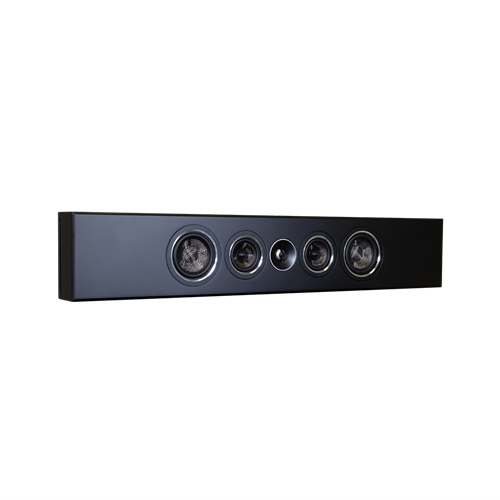

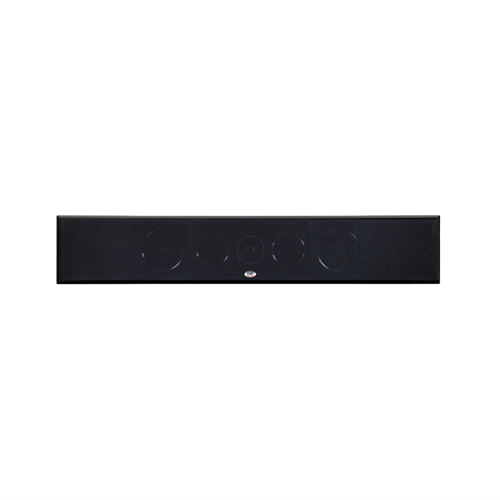

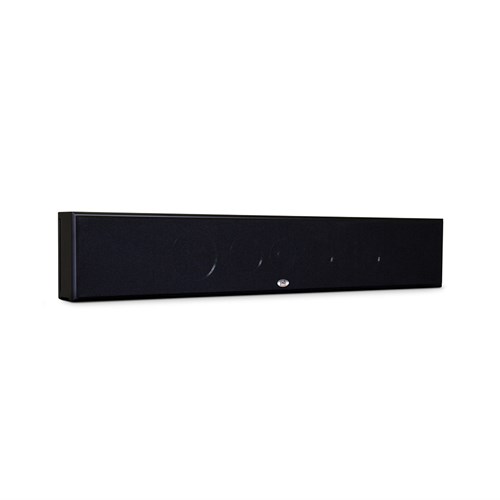

PWM2 On-Wall Speaker

Ultra-slim, single-channel flat-panel speaker
The PWM2 achieves a level of tonal balance and detail which sets a new standard for on-wall speaker design. Every aspect of this speaker was painstakingly studied and designed to create a refined and dynamic performance. Both music lover and movie buffs will be impressed with its effortless reproduction of the most demanding material. It’s 3-way design features a 1” titanium tweeter, customized dual 3” mid-range drivers and dual 4” woofers which combine to project an expansive soundstage regardless of whether it is mounted vertically or horizontally.

Key Features of the PSB PWM2:

  • Slim Profile premium On-Wall speaker system
  • 2 x 4” woofers with carbon fiber cones, rubber surrounds
  • 2 x 3” chambered midrange drivers with carbon fiber cones, rubber surrounds
  • 1” Titanium Dome Tweeter
  • Vertical or horizontal mounting options
  • Wall mount bracket included
  • LCR or for surround speaker application
  • Design and final voicing engineered by Paul Barton
  • Available in Satin White or Satin Black

Today’s home audio applications demand solutions that traditional designs are simply not able to fulfill. Regardless of the installation, PSB believes that the sound should never be compromised. PWM Series melds refined, elegant looks, versatile application and unwavering performance.

The slim profile hugs the wall and maintain a minimal visual presence. Their clean and simple lines complement virtually any design aesthetic. Interior designers, architects, custom home builders and system integrators will appreciate the understated elegance and highest performance levels offered by the Performance Wall Mount Series.

Newly developed drivers employing four-layer voice coils with powerful magnets and carbon fiber cones for exceptional detail, low distortion and superior power handling. The new proprietary 1” titanium dome tweeter is ferrofluid cooled and features a Neodymium magnet for high sensitivity and power handling. A wave guide on the front of the tweeter helps match the response of the tweeter near the crossover point with the woofer for a seamless transition.

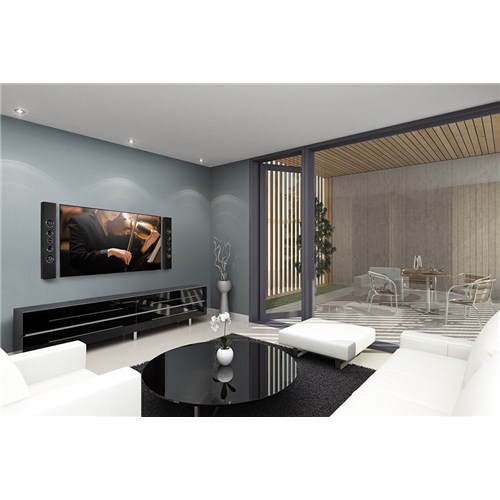

Whether as part of a complete on-wall system, a basic TV application or as an on-wall center channel solution for floor standing speakers; PWM series deliver legendary PSB sonic performance coupled with aesthetics and install cues desired in today’s interior design.



Specifications

Sensitivity
  • Anechoic Chamber    86dB
  • Typical Listening Room    89dB
Frequency response
  • On Axis +/- 3db    70Hz-23kHz
  • LF Cutoff    40Hz
Impedance
  • Normal    8 Ohms
  • Minimum    6 Ohms
Recommended Amplifier Power (Acoustic Design)
  • Tweeter (Nominal)    1" (25mm) Titanium Dome with Ferrofluid
  • Midrange (Nominal)    2x 3" (75mm) Carbon Fibre Cone Rubber Surround Cast Basket
  • Woofer (Nominal)    2x 4" (100mm) Carbon Fibre Cone Rubber Surround Cast Basket
  • Design Type    Bass Reflex
Construction
  • Cabinet    MDF
  • Grille Face    Acoustic Transparent Cloth
  • Frame    MDF
Size (W x H x D)
  • Net W    36” (914mm)
  • Net H    6.5” (165mm)
  • Net D    3.38” (85mm)
Finish
  • Available Finishes    Satin Black, Satin White
  • Grille Type    Magnetic, Cloth Grille
Mount
  • Wall Bracket    Wall Mount included for Vertical and Horizontal Mounting
  • Note: Bracket is not designed as ceiling mount
