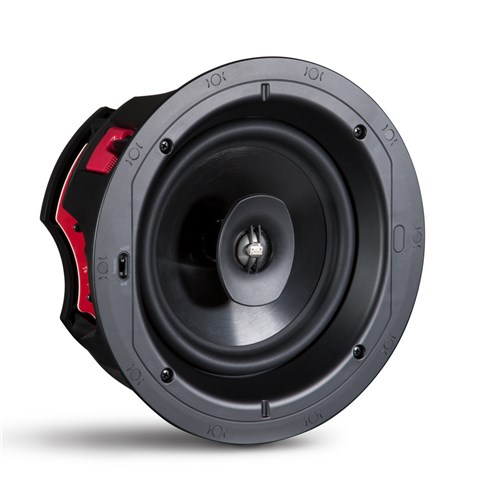

PSB CS810 - 8" IN-CEILING SPEAKER (EACH)

Product Code: PS-BCS810

Brand
PSB Speakers
RRP $749.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands PSB Speakers
Series Custom Sound Series
Size 8"
Speaker Type In-ceiling

CS810 – 8″ In-Ceiling Speaker

Select Performance Two-Way In-Ceiling Speaker

Featuring PSB’s trademark carbon-filled polypropylene cone woofer, this two-way, in-ceiling, flush-mount speaker delivers a warm and balanced hifi sound. Thanks to the high temperature voice coil, it also offers plenty of power handling. The CS810 perfectly combines advanced PSB technology with smart aesthetics to bring you an in-ceiling speaker that is both musical and nearly invisible, perfect for home theater or whole home audio.


  • 8″ (203mm) proprietary Imagine carbon-filled polypropylene cone woofer with steel basket
  • 1″ (25mm) aluminium dome tweeter
  • Frequency response: 48-20,000Hz (±3dB)
  • Aimable tweeter angle adjustment (ball-joint)
  • Precision crossover network for smooth wideband response
  • Dual-position switch for tweeter level
  • High-strength doglegs for easy installation and removal
  • Includes both round and square magnetic frameless grilles

Superb audio quality meets versatility
The CS810’s proprietary 1″ (25mm) aluminum dome tweeter is concentrically mounted and features a carefully engineered waveguide. This allows the tweeter to reproduce lower frequencies, blending perfectly with the woofer in the crossover region. In addition, a ball-joint pivot mount lets you aim the tweeter toward the listening position for enhanced imaging. A dual-position switch lets you adjust the tweeter level as well.

Ideal for music or home theatre
Backed by more than 45 years of cutting-edge research, this speaker provides unwavering sound quality that’s ideal for an in-ceiling music system or your home theatre setup.

Adaptable and stylish
The CS810 provides a nearly invisible speaker for your listening room without compromising sound quality or floor space. The simple and foolproof mounting system uses heavy-duty doglegs to ensure that installation is easy and efficient, and the provided magnetic frameless grille offers sleek concealment, allowing the CS810 to blend seamlessly into the ceiling. This discreet speaker design delivers the ultimate in performance and style.


Specifications

Frequency Response
  • On Axis @ 0° ±3dB    48-20,000Hz
Sensitivity
  • Anechoic Chamber    85dB
  • Listening Room    87dB
Impedance
  • Nominal    6 Ohms
  • Minimum    4 Ohms
Input Power
  • Recommended    10 - 100 Watts
Acoustic Design
  • Tweeter    1" (25mm) Titanium Dome with Ferrofluid
  • Woofer
    • 8" (203mm) Black Polypropylene Cone
    • Cast Basket
    • Foam Surround
  • Crossover    3,100Hz, LR4
  • Design Type    Open Back
Dimensions / Weight / Finish
  • Size (W x H x D)    Cutout Dimensions - 9 3/4" * (245mm)
  • Mounting Depth - 5" * (127mm)
  • Round Grille Diameter - 10 5/8" * (270mm)
  • Square Grille Size - 10 3/4" * (272mm)
  • Weight    Net - 4.95lb (2.25kg)/each
  • Shipping - 8.2lb (3.7kg)/each
  • Finish    White
Notes    * Non-metric measurements are approximate.
All specifications are subject to change without notice.
