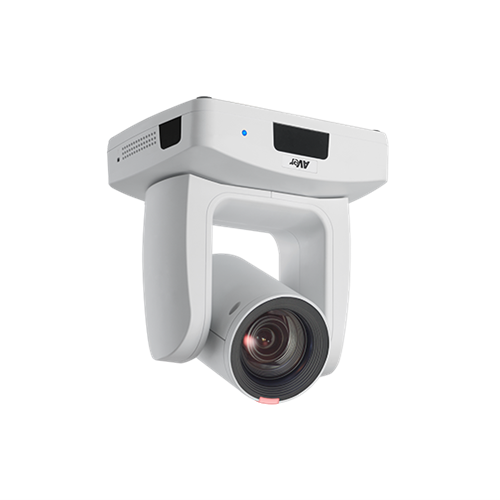

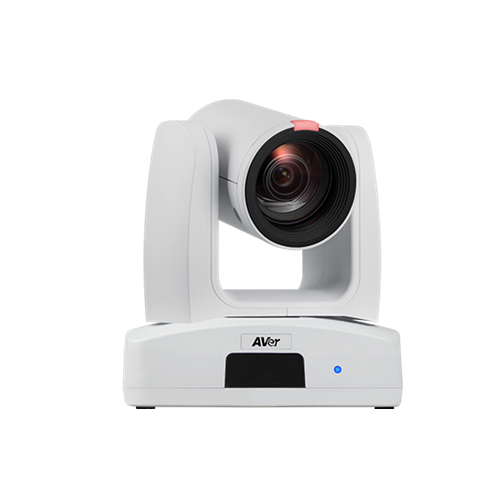

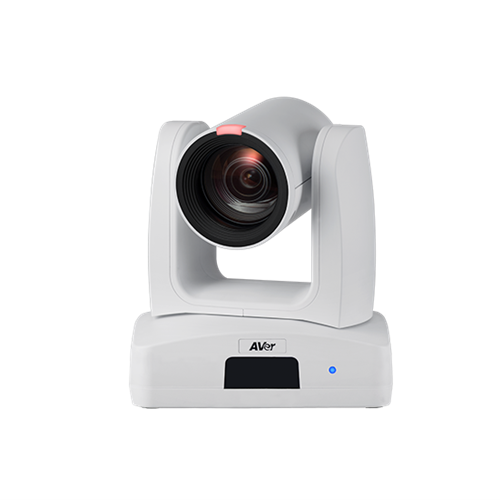

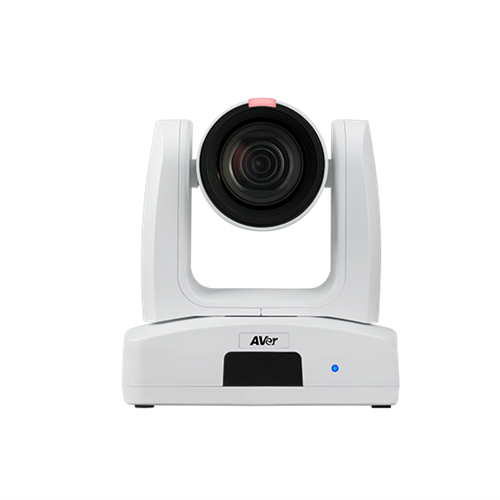

Professional PTZ Camera PTZ330UV2 AVER

Product Code: AF-PTZ330UV2

Brand
Aver
RRP $6,949.00


Quantity In Cart:
Unit of Measure
EACH



3 Year
Technical Specifications
Brands AVer
Native Resolution 4K
  • Details
  • Downloads
  • Where to Buy
  • Ordering

PTZ330UV2


Professional PTZ Camera
Stream Live. Stream Fascination.


Amaze your audience with AVer's PTZ330UV2 — the high-end PTZ camera that gives you full control of your streaming content. With 4K 60 fps HDMI/USB/IP outputs, a 30X optical zoom lens, and SmartShoot functionality, this advanced streaming solution is unmatched. Take your streams to the top and make a lasting impression with the PTZ330UV2!

  • 60 fps
  • 4K Ultra HD
  • 30X Optical Zoom
  • Sony Exmor™ CMOS Sensor
  • SmartShoot
  • IP/HDMI/USB/3G-SDI
  • Superior Camera Motion
  • Intuitive Web UI
  • Upside-Down Installation
  • Voice Tracking*


30X Optical Performance.
Harness the Power of Zoom
The 30X optical zoom camera and rapid autofocus ensure that every participant appears crystal-clear onscreen. With advanced zoom performance capturing every detail, you'll never miss a moment of any occasion.

4K Ultra HD.
A New Level of Clarity
With its industry-leading Sony sensor and 4K Ultra HD super-high resolution, the PTZ330UV2 takes every streaming experience from ordinary to stunning. And an advanced image processor automatically optimizes the quality of every shot, whether it’s a close-up or an extreme long shot.

HDMI/USB/IP + 4K 60 fps.
Smoother Streams
NDI<SUP>®</SUP> has praised the PTZ330UV2 for its real 4K 60 fps streaming capabilities via HDMI, USB, and IP outputs. With no complicated settings or tangled cords to manage, you can easily use multiple devices at the same time and still get a smoother video streaming experience.

0.1° to 200° Per Second Precision
Pro Camera Control
Customizable movement speed settings, ranging from 0.1° to 200° per second, offer high-level agility and precision for ultimate motion control during streams. The resulting sensitive and smooth multi-angle movement lets you capture extraordinary footage that dazzles your audience.


SmartShoot.
Keep People and Content in Focus
With embedded SmartShoot, the PTZ330UV2 uses real-time Human Detection to automatically move the camera smoothly between up to 4 preset zones. The camera focuses on the presenter to quickly switch between shooting zones whenever they do, delivering consistently clear images of them and their content.


PTZ Link.
Bring Voice Tracking to PTZ Cameras
PTZ Link is the only software that lets you connect PTZ Cameras to microphone systems. With the help of PTZ Link, you can easily turn your AVer PTZ Camera into a voice tracking camera by setting preset areas that let the camera automatically switch focus between different speakers in those spaces. Leverage seamless camera and audio integration with PTZ Link to experience ultimate -quality streams.

Specifications

Camera
  • Image Sensor: 1/2.8” 4K Sony Exmor CMOS
  • Effective Picture Elements: 8 Megapixels
  • Output Resolutions: 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
  • S/N Ratio: ≥ 50 dB
  • Gain: Auto, Manual
  • TV Lines: 1400 (Center/Wide)
  • Shutter Speed: 1/1 to 1/32,000 sec
  • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance: Auto, Manual, ATW, One Push
  • Optical Zoom: 30X
  • Digital Zoom: 12X
  • Total Zoom: 360X
  • Viewing Angles:
    • DFOV: 69.2° (Wide) to 2.8° (Tele)
    • HFOV: 62.3° (Wide) to 2.5° (Tele)
    • VFOV: 37.3° (Wide) to 1.4° (Tele)
  • Focal Length: f = 4.5 mm (Wide) to 135 mm (Tele)
  • Aperture (Iris): F = 1.8 (Wide) to 4.7 (Tele)
  • Minimum Working Distance:
    • 0.1 m (Wide)
    • 1.2 m (Tele)
  • Pan / Tilt Angles:
    • Pan : ±170°
    • Tilt : +90° / -30°
  • Pan / Tilt Speed (Manual):
    • Pan : 0.1° to 100° / sec
    • Tilt : 0.1° to 100° / sec
  • Preset Speed:
    • Pan : 200° / sec
    • Tilt : 200° / sec
  • Preset Positions:
    • 10 (IR)
    • 256 (RS-232, RS-422, IP)
  • Camera Control - Interfaces:
    • RS-232 (DIN8)
    • RS-422 (RJ45)
    • IP
  • Camera Control - Protocols:
    • VISCA (RS-232 / RS-422 / IP)
    • PELCO-D & PELCO-P (RS-232 / RS-422)
    • CGI (IP)
    • ONVIF
  • Image Processing:
    • Noise Reduction (2D / 3D)
    • Flip
    • Mirror
  • Power Frequencies: 50 Hz, 60 Hz
AI Function
  • Mode: SmartShoot
Audio
  • Channels: 2ch Stereo
  • Codecs: AAC-LC

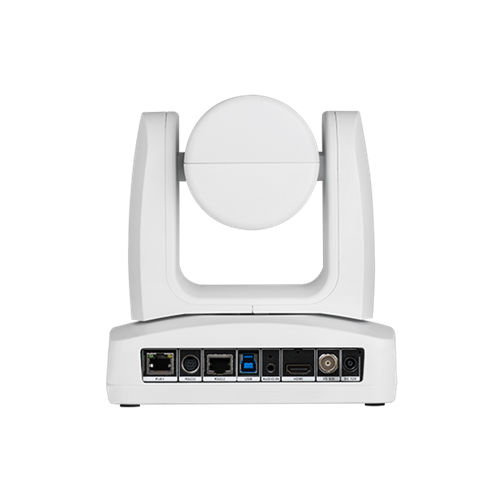

Interface
  • Video Outputs: 3G-SDI, HDMI, IP, USB
  • Audio Outputs: 3G-SDI, HDMI, IP, USB
  • Audio Inputs: MIC in, Line in
General
  • Power Requirement: AC 100 - 240V to DC 12V/2A
  • Power Consumption: 19W
  • PoE: PoE+
  • Dimensions (W x H x D): 180.0 x 192.0 x 145.0 mm
  • Net Weight: 2.0 (±0.1) kg
  • Application: Indoor
  • Tally Lamp: Yes
  • Security: Kensington Slot
  • Remote Control: Infrared
  • Operating Conditions: Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
  • Storage Conditions: Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
IP Streaming
  • Resolution: 4K 60fps
  • Network Video Compress Formats: H.264, H.265, MJPEG
  • Maximum Frame Rate: 4K 60fps
  • Bit-Rate Control Modes: VBR, CBR (selectable)
  • Range of Bit-Rate Setting: 512 Kbps to 120 Mbps
  • Network Interface: 10 / 100 / 1000 Base-T
  • Multi-Stream Capability:
    • 4
    • 4K 60fps: RTSP, HDMI & USB
    • 1080p 60fps: 3G-SDI
  • Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
  • NDI®|HX3: N/A
  • NDI® Genlock: N/A
USB
  • Connector: USB 3.1
  • Video Formats: MJPEG, YUY2
  • Maximum Video Resolution: 2160p
  • USB Video Class (UVC): UVC 1.1
  • USB Audio Class (UAC): UAC 1.0
Web UI
  • Live Video Preview: Yes
  • Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
  • Camera / Image Adjustment: Exposure, White Balance, Picture
  • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
  • IP Search and Configuration Tool: Support Windows® 7 or later
  • PTZ Management: Support Windows® 7 or later
  • PTZ Control Panel: Supports iOS & iPadOS® 11 or later
  • PTZ Link: Supports Windows® 7 or later, macOS® 10.14 or later
  • OBS Plugin for PTZ Cameras: Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
  • CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later
Warranty
  • Camera: 5 Years
  • Accessories: 1 Year
  • Package Contents: Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
  • Optional Accessories: AVer CL01 PTZ Camera Controller, L-Type Wall Mount

* Specifications may vary depending on location and are subject to change without notice.
