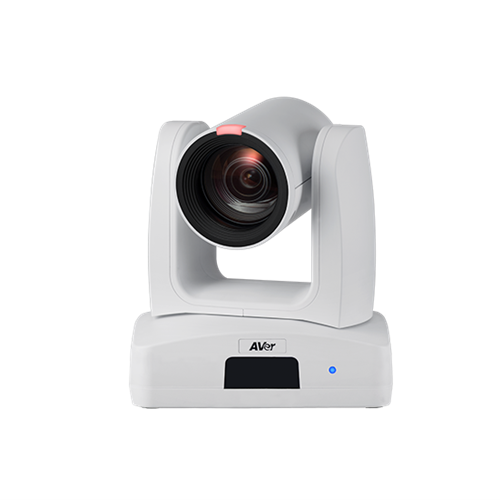

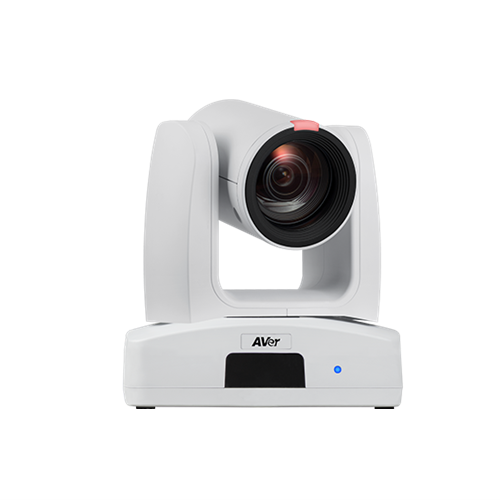

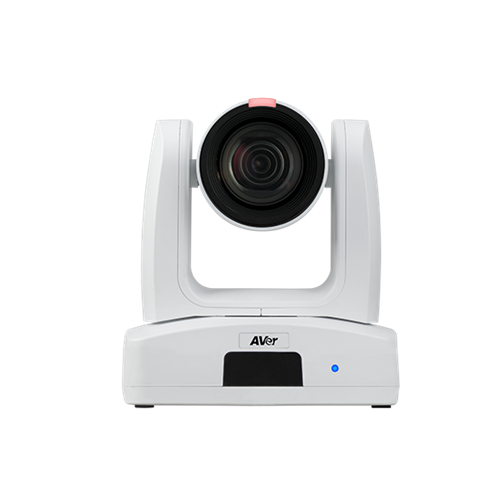

Professional PTZ Camera - NDI AF-PTZ330UNV2 AVER

Product Code: AF-PTZ330UNV2

Brand
Aver
RRP $7,349.00


Quantity In Cart:
Unit of Measure
EACH



3 Year
Technical Specifications
Brands AVer
Native Resolution 4K
  • Details
  • Downloads
  • Where to Buy
  • Ordering

PTZ330UNV2


Perfect Streams with NDI® HX3

NDI®|HX3 PTZ Camera

Stream like a pro with AVer’s latest NDI®|HX3 PTZ Camera! Get superior 4K 60 fps streaming through HDMI, USB, and IP outputs. And with a 30X optical zoom lens and embedded intelligent SmartShoot technology, you’ll have the flexibility to capture every detail of your presentation in perfect clarity. Upgrade your streaming experience today with the PTZ330UNV2!

  • NDI®|HX3
  • 60 fps
  • 4K Ultra HD
  • 30X Optical Zoom
  • SmartShoot
  • HDMI/USB/IP/3G-SDI Outputs
  • Superior Camera Motion
  • Intuitive Web UI

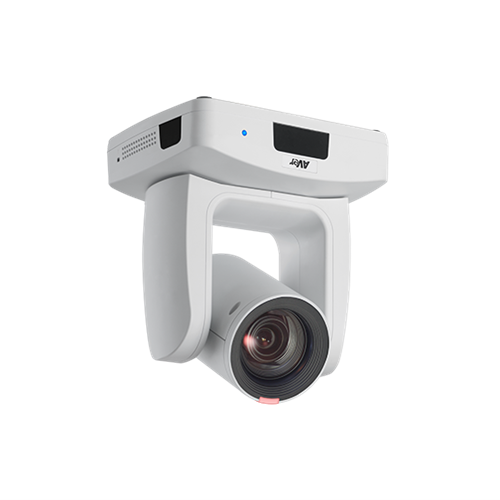

  • Upside-Down Installation
  • Voice Tracking*

NDI® is a registered trademark of Vizrt NDI AB.

NDI® is in the hands of millions of users allowing multiple video systems to identify and communicate with one another over IP. NDI® can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including video mixers, graphics systems, capture cards, and many other production devices. This makes it possible to exponentially increase the number of sources available for live production switching, without directly attaching to devices, changing locations, or investing in expensive, high-bandwidth networks that simply replace SDI-based workflows.

NDI® HX3 Compatible.
The Latest and Greatest
Revolutionize your streaming with PTZ330UNV2's NDI® HX3 technology! Enjoy lossless, low-latency video streaming without the hassle of a complicated setup. Experience the convenience of pan, tilt, and zoom functions. Get your hands on this next-generation tech and take your streaming to the next level!


30X Optical Performance.
Harness the Power of Zoom
The 30X optical zoom camera and rapid autofocus ensure that every participant appears crystal-clear onscreen. With advanced zoom performance capturing every detail, you'll never miss a moment of any occasion.

4K Ultra HD.
A New Level of Clarity
With its industry-leading Sony sensor and 4K Ultra HD super-high resolution, the PTZ330UNV2 takes every streaming experience from ordinary to stunning. And an advanced image processor automatically optimizes the quality of every shot, whether it’s a close-up or an extreme long shot.


HDMI/USB/IP + 4K 60 fps.
Smoother Streams
NDI® has praised the PTZ330UNV2 for its real 4K 60 fps streaming capabilities via HDMI, USB, and IP outputs. With no complicated settings or tangled cords to manage, you can easily use multiple devices at the same time and still get a smoother video streaming experience.

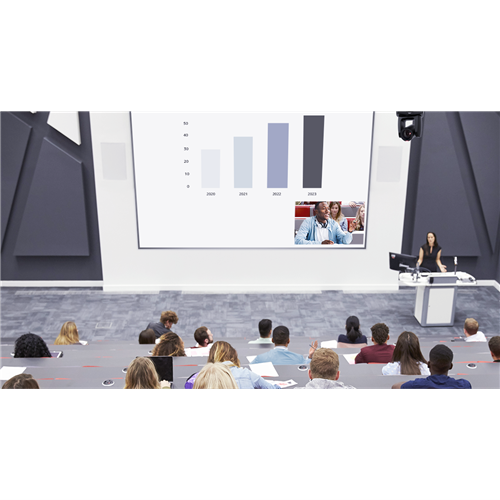

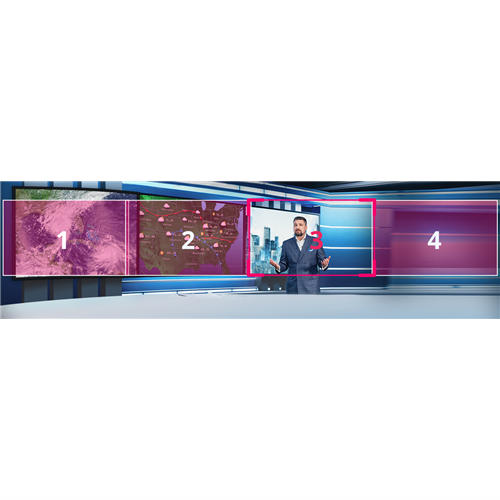

SmartShoot.
Keep People and Content in Focus
With embedded SmartShoot, the PTZ330UNV2 uses real-time Human Detection to automatically move the camera smoothly between up to 4 preset zones. The camera focuses on the presenter to quickly switch between shooting zones whenever they do, delivering consistently clear images of them and their content.

PTZ Link.
Bring Voice Tracking to PTZ Cameras
PTZ Link is the only software that lets you connect PTZ Cameras to microphone systems. With the help of PTZ Link, you can easily turn your AVer PTZ Camera into a voice tracking camera by setting preset areas that let the camera automatically switch focus between different speakers in those spaces. Leverage seamless camera and audio integration with PTZ Link to experience ultimate -quality streams.

Specifications

  • Camera
  • Image Sensor: 1/2.8” 4K Sony Exmor CMOS
  • Effective Picture Elements: 8 Megapixels
  • Output Resolutions: 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
  • S/N Ratio: ≥ 50 dB
  • Gain: Auto, Manual
  • TV Lines: 1400 (Center/Wide)
  • Shutter Speed: 1/1 to 1/32,000 sec
  • Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance: Auto, Manual, ATW, One Push
  • Optical Zoom: 30X
  • Digital Zoom: 12X
  • Total Zoom: 360X
  • Viewing Angles
    • DFOV: 69.2° (Wide) to 2.8° (Tele)
    • HFOV: 62.3° (Wide) to 2.5° (Tele)
    • VFOV: 37.3° (Wide) to 1.4° (Tele)
  • Focal Length: f = 4.5 mm (Wide) to 135 mm (Tele)
  • Aperture (Iris): F = 1.8 (Wide) to 4.7 (Tele)
  • Minimum Working Distance
    • 0.1 m (Wide)
    • 1.2 m (Tele)
  • Pan / Tilt Angles
    • Pan : ±170°
    • Tilt : +90° / -30°
  • Pan / Tilt Speed (Manual)
    • Pan : 0.1° to 100° / sec
    • Tilt : 0.1° to 100° / sec
  • Preset Speed
    • Pan : 200° / sec
    • Tilt : 200° / sec
  • Preset Positions
    • 10 (IR)
    • 256 (RS-232, RS-422, IP)
  • Camera Control - Interfaces
    • RS-232 (DIN8)
    • RS-422 (RJ45)
    • IP
  • Camera Control - Protocols
    • VISCA (RS-232 / RS-422 / IP)
    • PELCO-D & PELCO-P (RS-232 / RS-422)
    • CGI (IP)
    • ONVIF
  • Image Processing
    • Noise Reduction (2D / 3D)
    • Flip
    • Mirror
  • Power Frequencies: 50 Hz, 60 Hz
AI Function
  • Mode: SmartShoot
Audio
  • Channels: 2ch Stereo
  • Codecs: AAC-LC
Interface

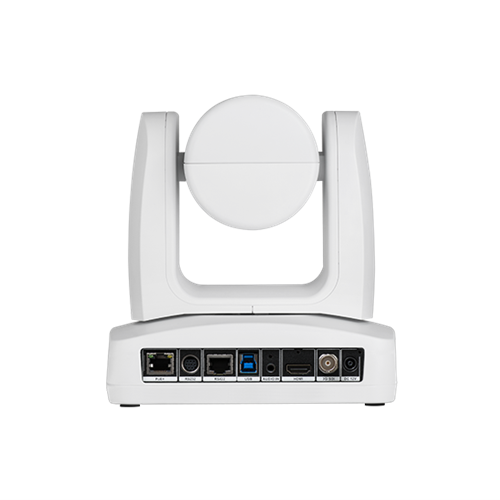

  • Video Outputs: 3G-SDI, HDMI, IP, USB
  • Audio Outputs: 3G-SDI, HDMI, IP, USB
  • Audio Inputs: MIC in, Line in
General
  • Power Requirement: AC 100 - 240V to DC 12V/2A
  • Power Consumption: 19W
  • PoE: PoE+
  • Dimensions (W x H x D): 180.0 x 192.0 x 145.0 mm
  • Net Weight: 2.0 (±0.1) kg
  • Application: Indoor
  • Tally Lamp: Yes
  • Security: Kensington Slot
  • Remote Control: Infrared
  • Operating Conditions: Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
  • Storage Conditions: Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
IP Streaming
  • Resolution: 4K 60fps
  • Network Video Compress Formats: H.264, H.265, MJPEG
  • Maximum Frame Rate: 4K 60fps
  • Bit-Rate Control Modes: VBR, CBR (selectable)
  • Range of Bit-Rate Setting: 512 Kbps to 120 Mbps
  • Network Interface: 10 / 100 / 1000 Base-T
  • Multi-Stream Capability**:
    • 5
    • 4K 60fps: RTSP, HDMI, USB & NDI® HX
    • 1080p 60fps: 3G-SDI
  • Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
  • NDI®|HX3: Yes
  • NDI® Genlock: Yes (available in Q3)
USB
  • Connector: USB 3.1
  • Video Formats: MJPEG, YUY2
  • Maximum Video Resolution: 2160p
  • USB Video Class (UVC): UVC 1.1
  • USB Audio Class (UAC): UAC 1.0
Web UI
  • Live Video Preview: Yes
  • Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
  • Camera / Image Adjustment: Exposure, White Balance, Picture
  • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
  • IP Search and Configuration Tool: Support Windows® 7 or later
  • PTZ Management: Support Windows® 7 or later
  • PTZ Control Panel: Supports iOS & iPadOS® 11 or later
  • PTZ Link: Supports Windows® 7 or later, macOS® 10.14 or later
  • OBS Plugin for PTZ Cameras: Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
  • CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later
Warranty
  • Camera: 5 Years
  • Accessories: 1 Year
  • Package Contents: Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
  • Optional Accessories: AVer CL01 PTZ Camera Controller, L-Type Wall Mount
