Pan tilt bracket for UBX Renkus Heinz W-WALL-UBX-PT-WT

Product Code: RH-WALL-UBX-PT-W

Brand
Renkus Heinz
RRP $375.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Renkus Heinz
Accessory Type Mount

Optional Pan/Tilt Wall Bracket

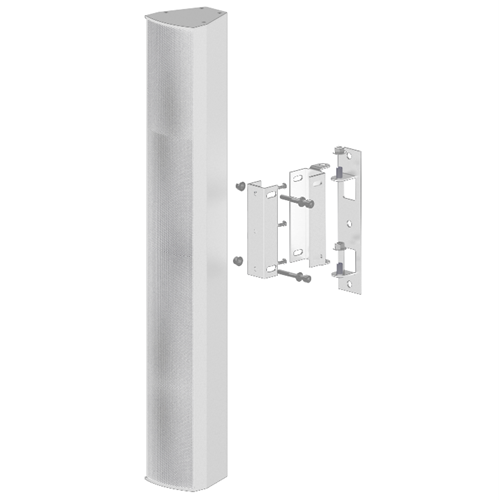

The UBX Series was designed to address most installations with surface-mounting plumb to the wall via the included wall bracket. For more extreme applications, Renkus-Heinz developed an optional Pan/Tilt Wall-Bracket, part number W-WALL-UBXPT.

  • Disassemble the bracket into the wall and loudspeaker halves by removing the 12 mm bolts and star washers. Remove the three, 6mm Phillips-head screws from the back of the loudspeaker using a #3 Phillips screwdriver. Be sure to use a #3 Phillips, using a #2 may damage the screws.
  • The speaker half of the bracket must first be disassembled into the 2 plates by removing the two 8 mm Socket Head Screws. The inner plate can then be attached to the loudspeaker using a #3 Phillips screwdriver. Be sure to use a #3 Phillips, using a #2 may damage the screws. After the inner plate has been attached to the loudspeaker, the speaker half can be reassembled, and angle set using the two 8mm Socket Head Screws.
  • The wall half of the bracket is intended to be installed with the bolts facing up. This allows the loudspeaker column to rest on the wall before tightening the nuts and locking splay angles.
  • The table below details the maximum down angles achievable with optional Pan/Tilt bracket.

Model Maximum Angle
UBX4 -15 degrees
UBX8 -15 degrees
UBX16 -10 degrees
