NAD CI 16-60 DSP 16 CHANNEL AMPLIFIER

Product Code: NA-DCI16-60

Brand
NAD
RRP $4,399.00


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
2 Year
Technical Specifications
Brands NAD
Amplifier Type Power Amp
Channel count 16
  • Details
  • Downloads
  • Where to Buy
  • Ordering

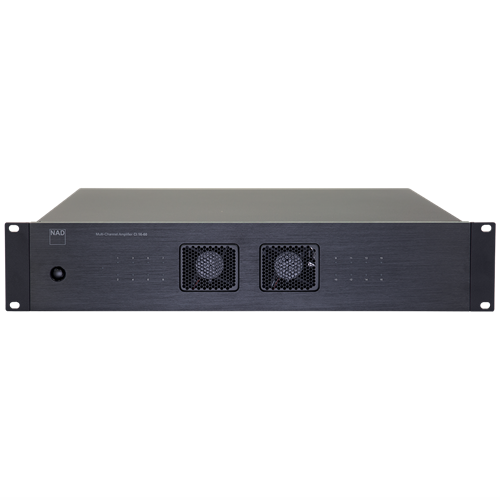

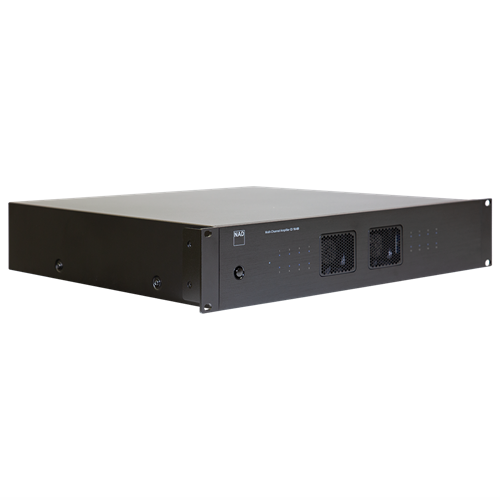

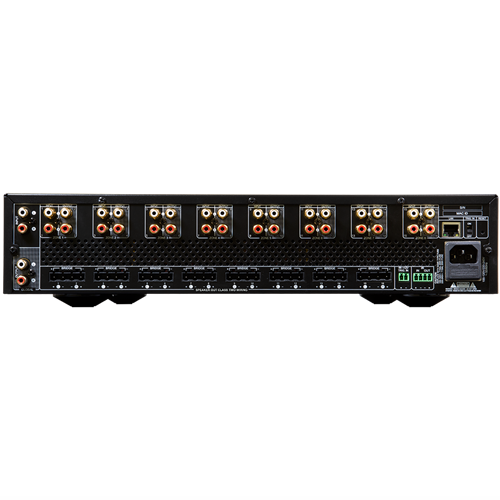

CI 16-60 DSP Multi-Channel Amplifier

Like every NAD product, legendary high performance is at the heart of this 16 channel amplifier. Promising reliability, stability and a variety of installer-friendly features, this amplifier will redefine the way you view high performance distributed audio systems.

Smart CI Solution with Audiophile Performance for Distributed Audio
Highly versatile and robust, the CI 16-60 is built for the demands of professional installations. This amplifier delivers a conservative 60 watts per channel at 8 ohms into all of its 16 channels with each pair of channels bridgeable to 140 watts per channel if more power is desired. The hybrid digital amplifier platform delivers stable and efficient power with high current capability all in a compact 2U rack space.

The CI 16-60 DSP uses a customized version of the proven Hypex UcD output stage to deliver great load invariant power with extremely low distortion and noise in the audible range. Every detail of this design has been carefully executed to bring out the best possible performance. Meticulously designed and built to deal with the demands of the custom installation market, the CI 16-60 can effortlessly handle long cable runs and difficult speaker loads.

NAD is keenly aware that reliability is paramount for a professional installer so all models will be based on tried and true amplification platforms delivering stable and reliable performance. The CI 16-60 amplifier is stable at 4 ohm impedance. A variety of power on methods are available as well as an Eco mode setting for minimal power consumption.


Key Features of the NAD CI 16-60 DSP Amplifier

  • 16 Channels X 60 Watts @ 8 Ohms
  • Any consecutive channel pair bridgeable to 2 x 140 Watts @ 8 ohm
  • Renowned NAD sonic signature
  • 2U Rack Height- saves valuable rack space
  • Platform accessed through IP control
  • Custom web app manages DSP calibration, Input assignments and more
  • Effectively handles long cable runs and difficult speaker loads
  • Dual global Inputs/Outputs
  • 5W Standby Mode, 3W Network Standby
  • 12V Trigger In; IR In/Out
  • Multiple power-up options and Eco Mode
  • Universal AC Power Supply

Specifications


GENERAL

  • Continuous output power into 8 ohms
    60 W (all channels driven, 1kHz 0.05% THD
    65 W (two channels driven, 1kHz 0.05% THD
  • into 4 ohms
    65 W (all channels driven, 1kHz 0.05% THD
    105 W (two channels driven, 1kHz 0.05% THD
  • Continuous output power into 8 ohms at Bridged mode
    140 W (all channels driven, 1kHz 0.05% THD
    240 W (two channels driven, 1kHz 0.05% THD
  • THD (1 W to 50 W, 8 ohms and 4 ohms)
    0.05 % (20 Hz – 3 kHz)
    0.2 % (3kHz – 20 kHz)
  • Signal-to-Noise Ratio
    80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
  • Clipping power (all channels driven)
    60 W (1 kHz 8 ohms 1 % THD)
    80 W (1 kHz 4 ohms 1 % THD)
  • Clipping power into 8 ohms at Bridged mode
    150 W (1 kHz 1 % THD – all channels driven)
    250 W (1 kHz 1 % THD – two channels driven)
  • IHF Dynamic Power (all channels driven)
    8 ohms: 65 W
    4 ohms: 125 W
  • IHF Dynamic Power (two channels driven)
    8 ohms: 70 W
    4 ohms: 125 W
  • IHF dynamic power (Bridged mode, all channels driven)
    8 ohms: 270 W
  • IHF Dynamic Power (two channels driven)
    8 ohms: 280 W
  • Peak output current
    15 A (1 ohm, 1 ms)
  • Damping factor
    110 (20 Hz to 1 kHz 8 ohms)
  • Frequency response
    ±1dB (20 Hz – 20 kHz)
  • Channel separation
    60 dB (1 kHz)
    55 dB (10 kHz)
  • Maximum undistorted input level
    2900 mV
  • Input sensitivity (for 50 W in 8 ohms, maximum volume)
    760 mV
  • Input impedance
    20 kohms//220pF
  • Analog input audio sense threshold (one channel with signal)
    3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)Trigger IN level3 – 30 Vdc
  • Standby power
    0.5W

DIMENSION AND WEIGHT

  • Gross dimensions (W x H x D)*
    483x100x435mm
    19 1/16 x 3 15/16 x 17 3/16 inches
  • Net Weight
    10.3 kg (22.7 lbs)
  • Shipping Weight
    12.8 kg (28.2 lbs)
