NAD D 8020 SPEAKERS NADD8020 - Amber Tech
Products

Speakers

This is a Special Order Item

NAD D 8020 SPEAKERS NADD8020

Product Code: NA-DD8020

Brand
NAD
RRP $499.00


Quantity In Cart: 0
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
Lifestyle - R
2
$449.10
Increase value Decrease value
Technical Specifications
Brands NAD
Size 3.5"
Speaker Type Bookshelf

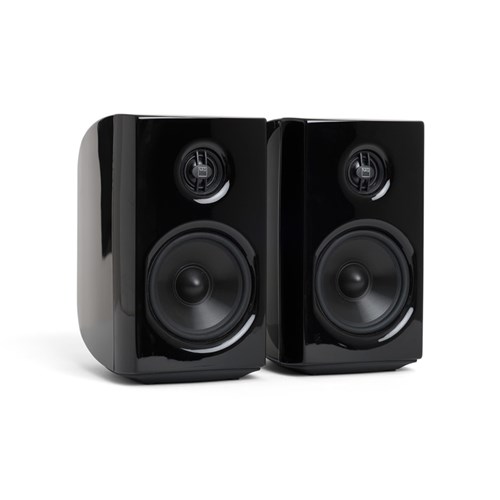

D 8020 Compact Monitor

Fantastic NAD sound is now available in a compact monitor system designed to match perfectly with NAD Digital Series amplifiers, including the award-winning D 3020 Hybrid Digital Amplifier and the D 7050 Direct Digital Network Amplifier. The NAD 8020 has been optimised and custom-tuned to the D 3020 and D 7050 with the BASS EQ set to on, which gives a full room-filling sound that defies the speakers’ small dimensions. The compact nature of these two-way speakers allows them to be used even on the most space-challenged desks, bookshelves, or sideboards.

Each speaker features a high-gloss curved cabinet, 3-1/2” metalized polypropylene woofer and 3/4” aluminum dome tweeter designed to deliver smooth response. This design allows the D 8020 speakers to “disappear” while projecting a large and detailed soundstage suitable for small to medium-sized rooms.

The NAD D 8020 comes with speaker cables terminated with gold-plated banana plugs in the box, so all you need to do is connect and play! An optional tilt base is available to adjust the speaker position for optimized stereo imaging in nearfield listening.


SPECIFICATIONS

  • Frequency Response
    • On Axis @ 0° ± 3dB - 80-22,000Hz
    • On Axis @ 0° ± 1 1/2dB - 90-20,000Hz
    • Off Axis @ 30° ± 3dB - 90-12,000Hz
    • LF Cutoff -10dB - 58Hz
  • Sensitivity (1W (2.83V) @ 1m, IEC-filtered Pink Noise, C-weighted)  - 84dB
  • Impedance
    • Nominal - 8 Ohms
    • Minimum - 6 Ohms
  • Input Power
    • Recommended - 15-80 Watts
    • Program - 60 Watts
  • Acoustic Design
  • Tweeter (Nominal) - 19mm (3/4”) Black Anodized Aluminium Dome
  • Woofer (Nominal) - 90mm (3 1/2”) Polypropylene Cone, Rubber Surround
  • Crossover - 2100Hz, LR4
  • Internal Volume - 1.9 litres (0.067 ft3)
  • Design Type
    • Bass Reflex
    • Rear Slot Port

GENERAL

  • Unit Dimension (WxHxD) - Gross* (includes grille, knobs, terminals and mounting brackets)
    • 114 x 197 x 174mm
    • 4 1/2 x 7 7/8 x 6 7/8”
  • Net weight  - 1.72kg (3.8lb)
  • Shipping weight  - 16.5kg (36.2lb)
  • Finish -  Gloss Black
  • Features -  5-way Gold-plated Binding Posts
  • Optional Accessories  - 15° Tilted Base (pair)
