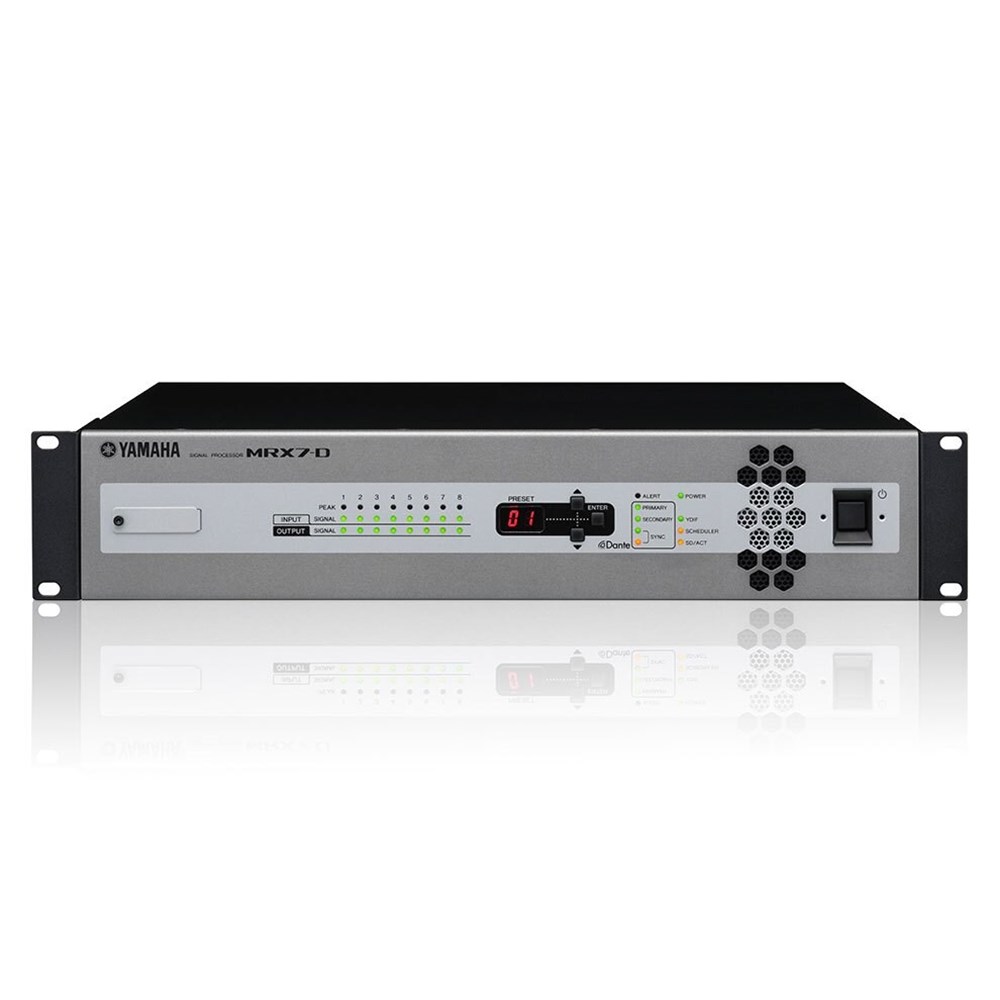

Sound system requirements for corporate conference rooms, educational facilities, shopping malls, and a variety of other environments are becoming increasingly large and complex. The MRX7-D offers outstanding control efficiency and flexibility for a broad spectrum of audio installations.
Because the MRX7-D's design architecture is freely configurable, it allows an audio engineer to create a unique solution for the customer which can incorporate many unique processing components and maximize the use of available DSP. Having built in Dante connectivity, it also allows audio systems to take advantage of the many other Dante enable products on the market including Yamaha's wide range of Digital Mixers.
Flexible & Expandable

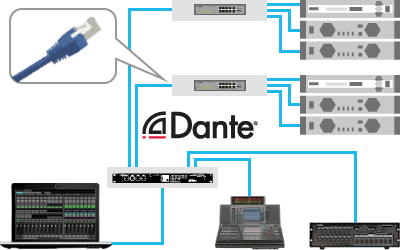

The MRX7-D takes full advantage of the globally adopted Dante networking technology. Dante is a true digital network that increases the flexibility and expandability of an audio system while helping to reduce the cost. It can handle and distribute high numbers of audio channels over long distances to many devices on the network simultaneously. With so many Dante enable devices available, such as microphones, processors, digital mixers and amplifiers, it is the ideal choice for medium to large scale system designs.

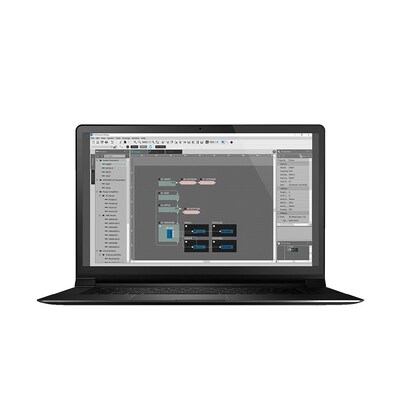

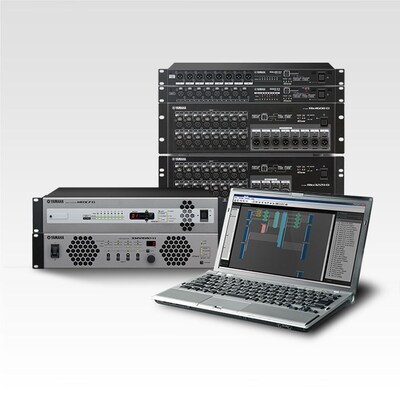

An Intuitive Graphical Interface for Sound System Design
There are two design software applications available for use with the MTX/MRX Series.
ProVisionaire Design
ProVisionaire Design is a comprehensive Windows software application that allows intuitive sound design when using compatible Yamaha products. It is perfect for designing systems that utilize Yamaha products such as the MTX/MRX Series, the XMV Series, Rio/Tio interfaces, and ADECIA solutions. ProVisionaire Design can also be combined with the ProVisionaire Control computer application, allowing integrated control of all aspects of a project, from system design and configuration to everyday operation and management.
MTX-MRX Editor
The MTX-MRX Editor is a software application that can be used to construct sound systems with the MTX/MRX Series or the XMV Series. It allows control of sound systems to suit the environments and applications of multiple different areas, including delivery of music and vocal audio tailored to the specific needs of each area, and timer-triggered automated music playback and announcements.
The entire operation of adjusting levels of microphones, Blu-ray players and other inputs, processing audio signals with internal EQ and other effects, and distributing those signals to power amplifiers or external controllers, can be handled with single device.

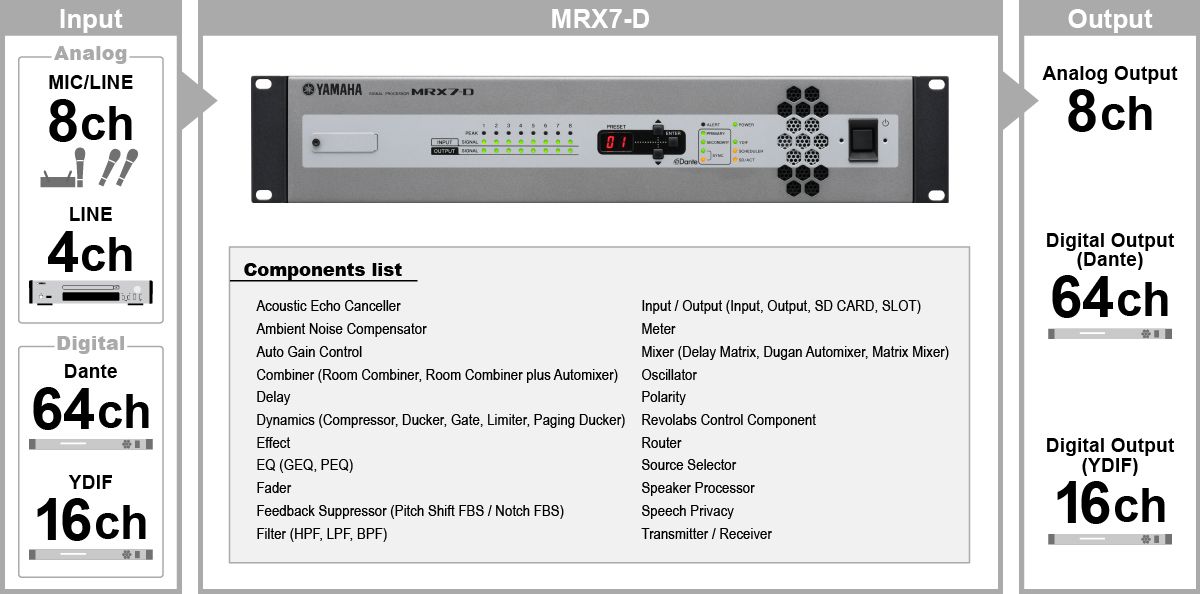

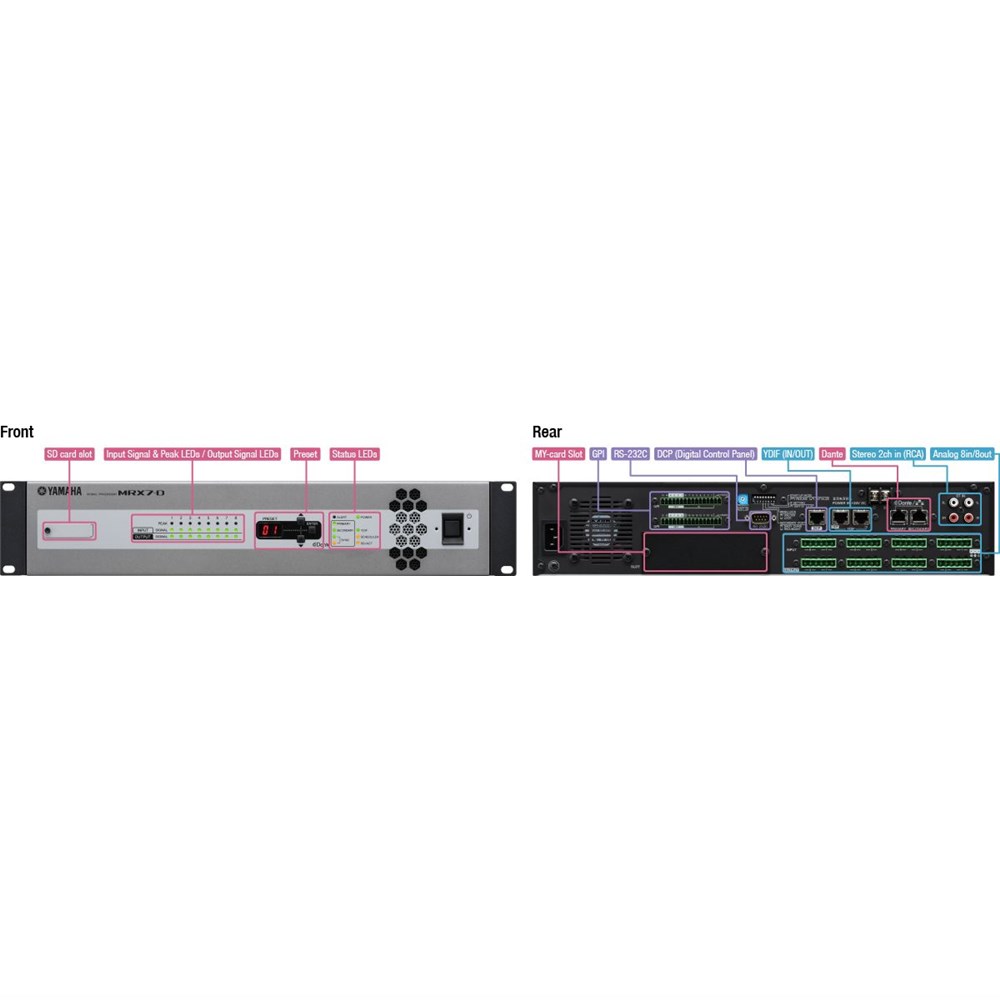

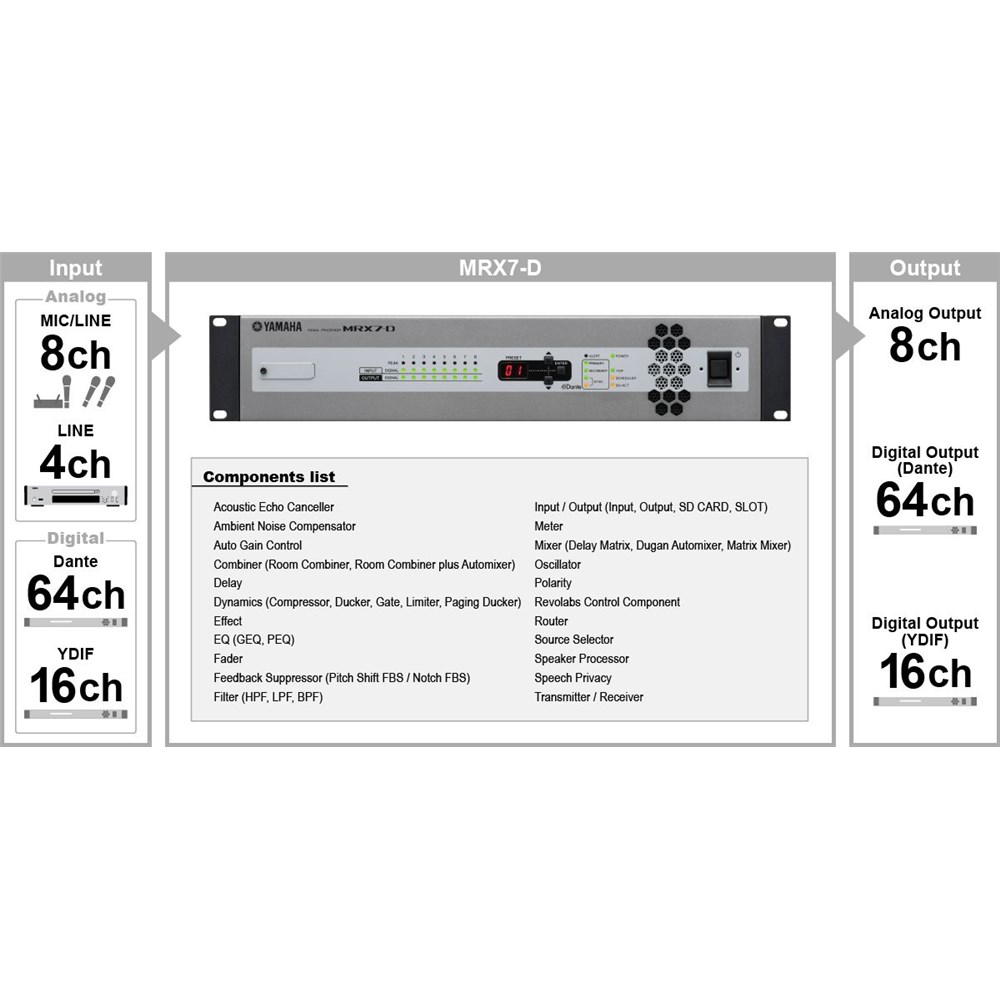

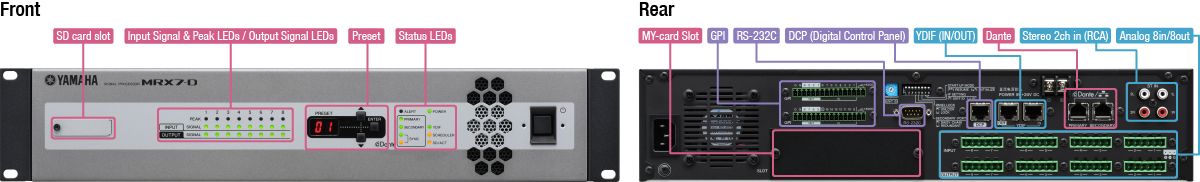

A closer look at the inputs and outputs of the MTX and MRX processors and provide an overview of the processing available in each one.

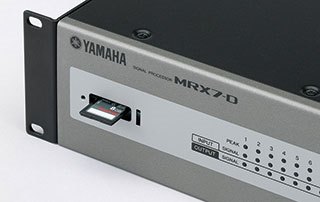

SD Memory Card Slot for Playback
The SD Memory Card slot allows direct playback of MP3 or WAV format audio files. These files could be a source for music playback which can be accessed remotely or, they could be preset announcements or messages that are broadcast according to the built-in scheduler function. Lastly, the SD card could also store the chime sounds which are triggered from a PGM1 paging station.

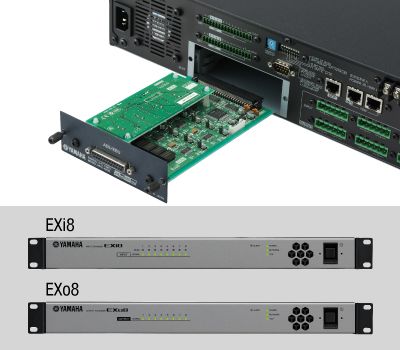

High Expandability offered by Mini-YGDAI Card Slot
It is possible to add to the MRX7-Ds built-in I/O using the EXi8 and EXo8 Input/Output expanders. Featuring either eight mic/line inputs or eight analogue outputs, they transmit to and from the MRX7-D using Yamaha's YDIF format over distances of up to 30m.
The MRX7-D also features one Mini-YGDAI card slot that can accommodate optional cards that support a variety of audio formats, and expansion by up to 16 I/O channels.

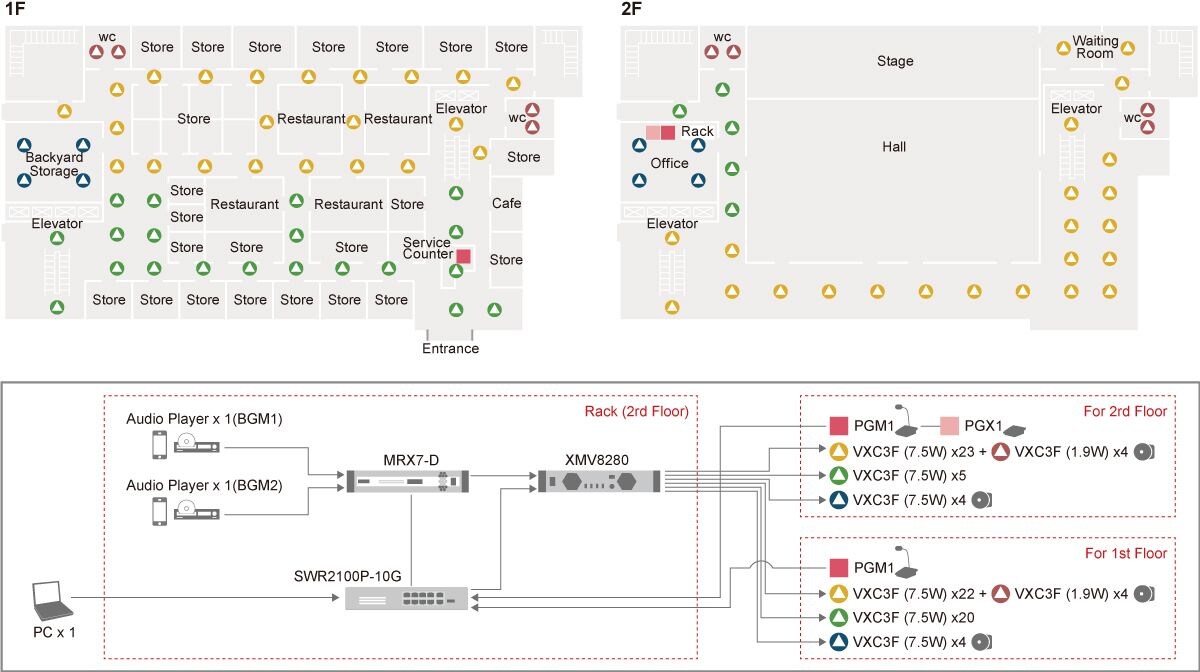

MRX7-D Digital Network SystemUsing two types of networking in MRX7-D can significantly reduce installation cost and time. The combination of YDIF for shorter system connections and DANTE for larger installations can considerably improve design flexibility.
Support for Dante Domain Manager, AES67 and Dante Device LockSupports the "Dante Domain Manager" audio network interconnectivity standard (update to version 3.31). Audinate Corporation's "Dante Domain Manager" is now supported. Audinate Corporation's "Dante Domain Manager" is network administration software that provides user authentication and role-based security settings. Now you can construct a safe and scalable sound system based on Dante infrastructure.MRX7-D signal processor now support the AES67 audio network interconnection standard. This allows connection via AES67 to audio networks such as Ravenna, Q-LAN, or Livewire, increasing the expandability of the system.Also supported is Dante Device Lock, which prevents a third party from modifying Dante settings. This can increase system security in environments such as concert halls where an outside operator is expected to operate the system or bring in equipment.

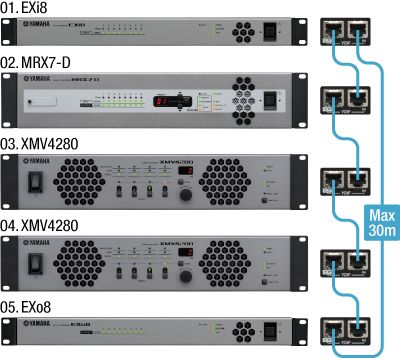

YDIFMRX7-D features the YDIF digital transmission format; a unique proprietary Yamaha technology that delivers 16ch audio and word clock transmission via standard CAT5 Ethernet cable. YDIF can be used for cascading multiple MRX/MTX Series or for feeding audio signal to XMV Series power amplifiers with very simple cabling up to 30 metres.

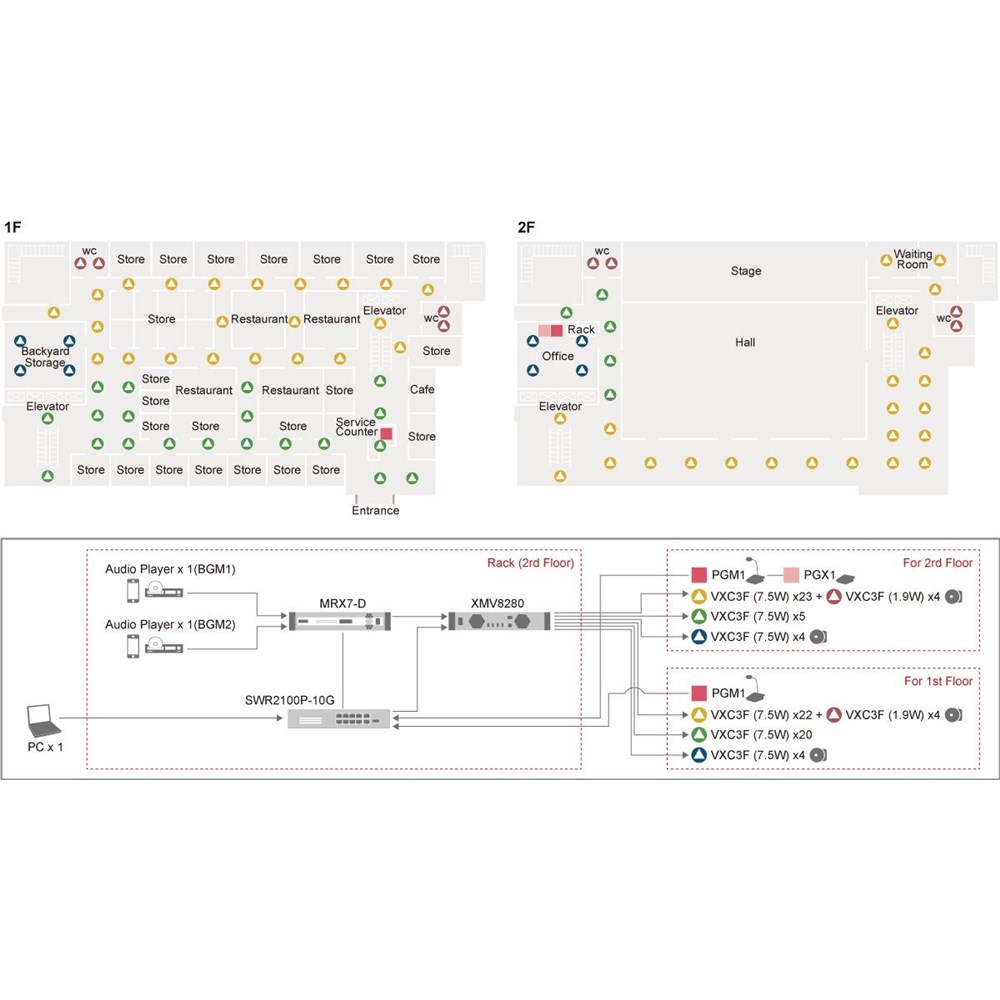

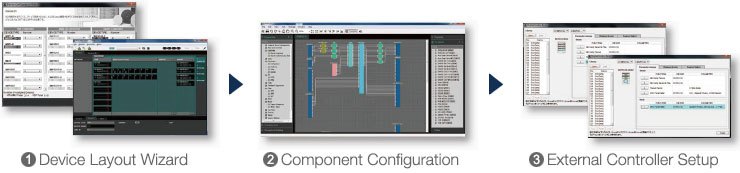

Smart, Flexible Paging System for Large Commercial SpacesThe PGM1 paging station and PGX1 paging expander are designed to work specifically with MRX7-D or MTX5-D. They work using PoE and connect to the network via Dante. Each PGM1 can be expanded with up to two PGX1 units and up to 4 units of PGM1 can be connected to a single system.Yamaha's PGM1/PGX1 are paging stations that can be used with the MTX5-D or MRX7-D. It can be networked via a Dante Network and using Power Ethernet or PoE. This video will show you how to set up the paging station to the system.Flexibility and Operation EaseAs the scale and control requirements of an audio system grow, the number of devices required and overall complexity increase correspondingly. With the MRX7-D and dedicated MTX-MRX Editor software, input and output devices can be quickly arranged via a software wizard and internal MRX7-D processing components can be combined as needed. One simple software application provides everything needed for comprehensive system design and management.Dedicated Software for Total Sound System DesignThe MTX-MRX Editor software facilitates sound system design with a workflow that simulates standard installation procedure. An easy-to-use wizard lets you start by arranging the devices to be used in the desired layout, then processing components can be added wherever needed. The MTX-MRX Editor provides comprehensive, intuitive tools for designing sound systems from input to output.
1) Device Layout Wizard
In addition to the MRX7-D, the wizard allows MTX series matrix processors, XMV series power amplifiers, DCP digital control panels, and EXi8/EXo8 input and output expanders to be added and arranged as needed.
2) Component Configuration
The MRX7-D features a versatile range of built-in processing components: faders, ON/OFF switches, matrix source selectors, GEQ, Dugan automatic mixing, speech privacy, echo canceller, and more. Simply select the required components and arrange them via a graphical interface.

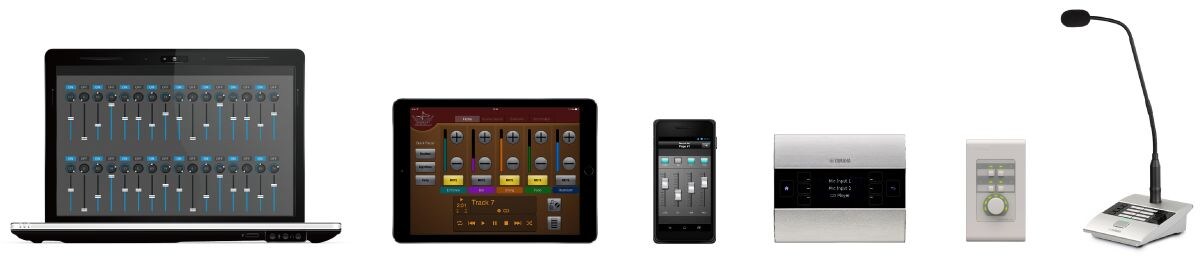

3) External Controller Setup
Parameters that will be available to the end user can be specified via the MTX-MRX Editor. A variety of external controllers can be accommodated to ideally match the requirements of each installation.
