Mechanical Arm Visualizer M70W Aver

Product Code: AF-M70W

Brand
Aver
RRP $1,749.00


Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands AVer
Native Resolution 4K
Product type Visualiser
  • Details
  • Downloads
  • Where to Buy
  • Ordering

AVerVision M70W


Instantly Share & Interact
With Vibrant Details

Mechanical Arm Wireless Visualizer (Document Camera)
The M70W is a 4K wireless visualizer that transforms eLearning by enhancing interactive discussions between teachers and students. A versatile mechanical arm and solid body support a 13-megapixel camera with vividly detailed 4K, 60fps imaging and powerful 230X total zoom capacity. The overall design is meant to reflect the embedded technology that users can creatively put to work engaging the classroom.

230X Total Zoom
Capture every shot with the M70W’s 10X optical zoom plus 23X digital zoom. The power of close-ups enhances the learning experience by letting teachers show every little detail.

Outstanding 4K Video Quality
Embracing 4K Ultra HD output resolution with its 13-megapixel camera, the M70W’s impressive smooth and steady 60fps performance is a delight.

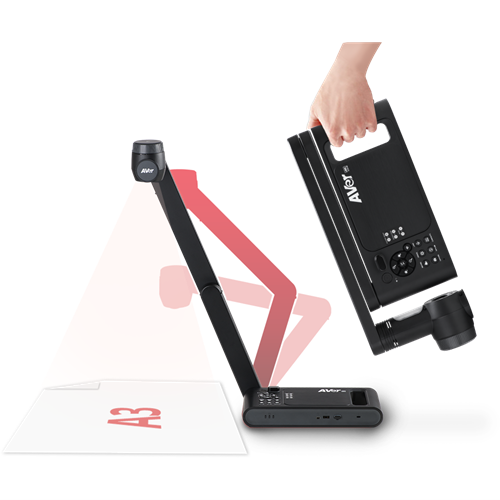

Durable, Adjustable & Portable
The sturdy, adjustable mechanical arm and portable handle offer users flexibility to apply the M70W in different fields. Additionally, the position indicator on the camera head allows for precise visualizing of A3-sized documents.

Wired or Wireless
Integrating the benefits of stand-alone and wireless visualizers, the M70W gives teachers options. Armed with HDMI and USB connectivity, idea sharing has never been this easy.

One-Touch Capturing & Recording
Irresistible 4K video recording and capturing functions completely fulfill the needs of flipped teaching. Simply capture all your favorite moments and express your creativity during classes with the M70W.

AVerTouch Software
Here comes AVer’s latest and most powerful software—AVerTouch. All it takes is one touch to connect the M70W with mobile devices for content sharing, and teachers can connect to the cloud to automatically save annotated, captured, and recorded files.

Specs

  • Image sensor: 1/3.2" CMOS
  • Total pixels: 13 megapixels
  • Frame rate: 60 fps (max.)
  • Output resolution: 4K / Full HD 1080p 60Hz / HD 720p 60Hz
  • TV lines: 1400
  • Zoom: Total 230X max. (10X Optical + 23X Digital Zoom)
  • Focus: Auto / Manual / Area (via software)
  • Shooting area: A3 (480 x 345 mm max. at 470 mm)
  • Image rotation: 0° / 90°(rotate by camera head)
  • Preview mode: Normal / High Frame / High Quality / Microscope / Infinity / Macro
  • Effect: Rotate / Freeze
  • Dual mode: AP / Station DHCP (Server / Client)
  • Wi-Fi streaming: 1080p 30 fps / up to 4K 30 fps
  • Dual band: 5 GHz / 2.4 GHz
  • Miracast: Yes
  • Compatibility: 802.11a/b/g/n/ac (45 ft effective range)
  • Wireless security: Support WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise (EAP-PEAP, EAP-TLS)
  • External storage: Yes, via USB flash drive FAT (32 GB max.)
  • Image effects: Color / B&W / Negative
  • Image adjustments (white balance / exposure): Auto / Manual
  • One-touch recording: Yes
  • One-touch capture: Yes
  • Annotation: Yes, via software
  • Timer: Yes, via software
  • Picture-by-picture: Yes, via software
  • Capture mode: Single, via software (13 MP & based on HDMI resolution)
  • User profile: 1
  • Flicker filter control: Yes
  • ePTZ: Yes, via software
  • Cloud library: Yes, via software
  • USB bus power: Yes, standby only
  • Lamp type: LED light
  • MIC: Built-in
  • USB:
    • USB 2.0 Type A (Wi-Fi Dongle)
    • USB Type mini-B *1
  • Dimensions (L x W x H):
    • Operating: 587 mm (L) x 159 mm (W) x 546 mm (H)
    • Folded: 363.5 mm (L) x 159 mm (W) x 76.3 mm (H)
  • Weight: 2.6 kg (5.7 lbs)
  • Warranty:
    • Visualizer: 5 years
    • Battery and accessories: 1 year
  • Power source:
    • DC 5V/2A
    • AC 100-240V
  • Consumption:
    • 8.7 Watts (lamp on)
    • 7.7 Watts (lamp off)
  • Windows® OS: Windows® 7, 10, 11
  • Mac® OS: macOS® 10.15 or later
  • iOS: iOS v11 or later (iPad only)
  • Android™ OS: Android v5.0 or later
  • Optional accessories:
    • Carrying bag
    • Anti-glare sheet
    • Microscope adapter
  • Package Contents:
    • AVerVision M70W unit
    • Quick guide
    • USB cable
    • Remote control with AAA batteries*2
    • Power adapter (DC 5V)
    • Warranty card
