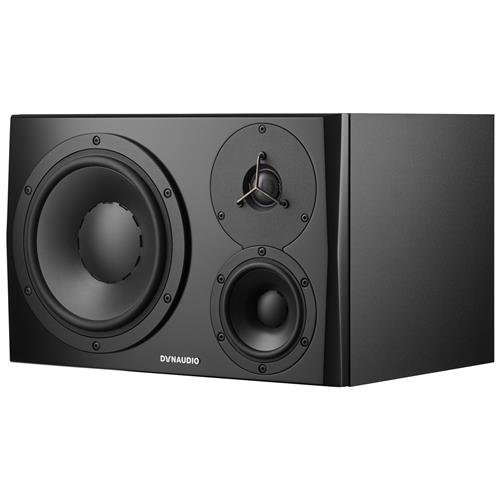

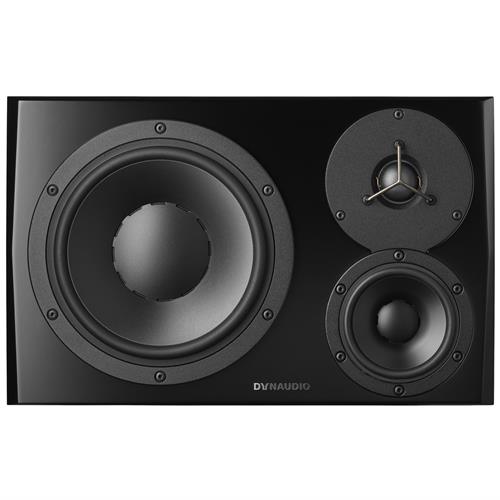

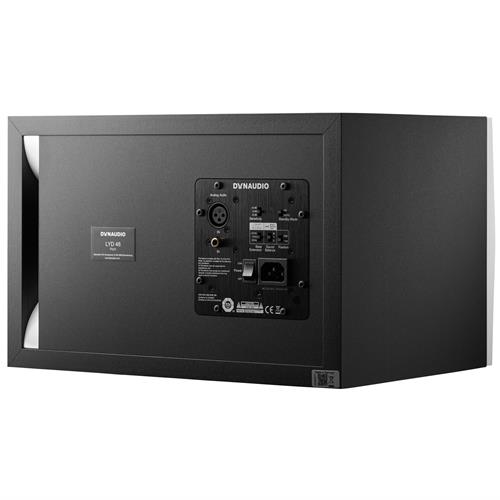

LYD 48 The 3-way LYD monitor. With its newest addition to the LYD personal reference monitor series, Dynaudio is bringing a new perspective to power and precision for producers and musicians everywhere – with unmatched accuracy at any volume level. This 3-way near- to midfield monitor reaches eyebrow-raising levels of accuracy thanks to a new soft-dome tweeter and Dynaudio’s proprietary MSP midrange driver and woofer. Each driver is fuelled by a powerful, state-of-the-art Class-D amplifier and a full 24-bit/96kHz signal path. And, like the rest of the LYD range, it lets you fine-tune low frequency response, position and sound-balance using cutting-edge DSP Technical specifications Measured by the best acousticians in the business. Specification sheet forLYD 48part 2 Max SPL (1m, pair): 112dB Principle: Bass reflex Crossover Frequencies: 460Hz / 5.5kHz Tweeter: 1inch Soft dome Midrange: 4inches Woofer: 8inches Dimensions (W x H x D): 369 x 234 x 328mm Weight: 12kg Sensitivity (85dB @ 1m, free field): +6dB: 50mV 0dB: 100 mV -6dB: 200 mV Specification sheet for LYD part 1 Amplifier: Power (Tweeter/Midrange/Woofer): 50W/50W/80W Type: Class D Power consumption standby: <0.5W Power consumption max.: 100W Input voltage: 90 - 264V AC, 50 - 60Hz Inputs: XLR balanced/RCA unbalanced Outputs: N/A Frequency response -6dB limits: Bass extension +10Hz: 60Hz - 21kHz Bass extension 0Hz: 50Hz - 21kHz Bass extension -10Hz: 40Hz - 21kHz Free field frequency response: 50Hz - 19kHz
