Digi-Loop Counter Loop Amp System 1 X 2A DL102SY1 Williams AV

Product Code: WI-DL102SY1

Brand
Williams AV
RRP $649.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Williams AV
Product type Loop Systems
  • Details
  • Downloads
  • Where to Buy
  • Ordering

DL 102 SY1 COUNTER LOOP AMPLIFIER

The DL102 Loop amplifier provides a practical solution for a user to hear with their T-coil enabled hearing device in small areas such as counters and service desks.

Audio is wired into the DL102 amplifier via a line-level input or microphone. Audio is fed from the amplifier through the loop wire in the area where a T-coiled hearing device can pick-up the audio.

With no direct connection between the user and service personnel, users can hear effectively when using the T-coil in their customized hearing devices.
This loop system is supplied with a loop pad and a spool of wire.



System includes

  • DL102 amplifier
  • Power supply
  • AC line cord
  • Loop notice stickers
  • Set of adhesive cable clips
  • MIC 105 - Microphone
  • PLW 037 (120ft Spool of wire)
  • PLM 001 - Loop Pad

Specifications

  • Audio Input: 3 (1 microphone or line input, isolated line input, Mic)
  • Connector Type: 3.5mm jack, Mic-2 pole line in, 3 pole line in, Mic in
  • Power Supply: 12V DC 1.5 A output
  • Power Voltage: 100-240VAC, 50/60Hz - 2.0A Input
  • Dynamic Range: > 60 dB
  • THD: THD+N < 0.5% - 1kHz
  • Amplifier Type: Constant current
  • Loop Resistance: 0.1 Ω to 1.0 Ω
  • Current Output: 2A RMS at 1kHz (2.8 APK)
  • Protection: Thermal, short-circuit and start
  • Dimensions: 3.9” x 2.3” x 1” (100mm x 60mm x 25mm)
  • Amplifier Weight: 0.48 lbs (218 g)

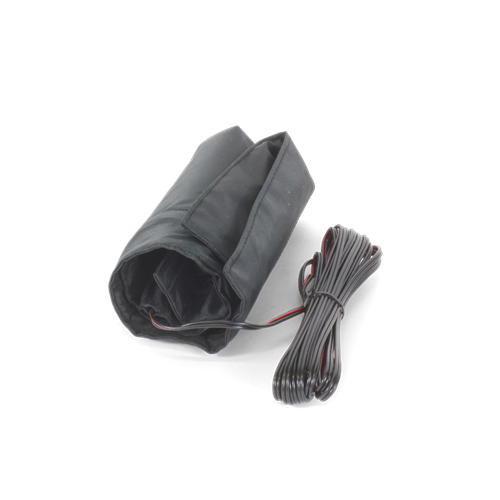

plm 001
  • Lead Wire Length 16 ft / 5 m
  • DC Resistance 1.3 Ohms
  • Weight 0.5 lbs / 225 g
  • Pad 14 in / 0.4 m square
  • Wire In Pad 10-turn loop

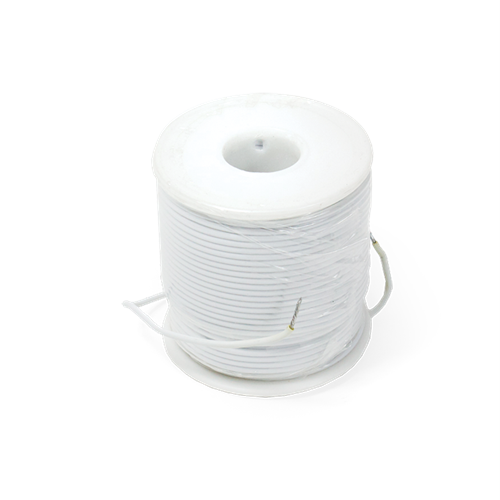

plw 037
  • Length 120ft
  • Spool Dimensions: 6.5"Dia
  • Spool Weight: 9.8 lbs
  • Color/Material: White
