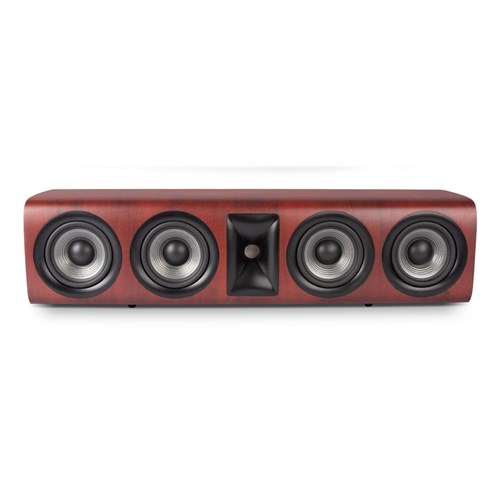

JBL Studio 6 665C Centre Spkr 5.25" x 4 + HDI Tweeter Wood Finish (each)

Product Code: JB-STU665CW

Brand
JBL
RRP $1,699.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands JBL
Series Studio 6 Series
Size 4 x 5.25"
Speaker Type Centre

JBL Studio 665C
Quad 5.25-inch 2.5-way Center Channel Loudspeaker


The JBL Studio 665C is a high-performance center channel loudspeaker utilizing JBL’s 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented by quad 5.25-inch PolyPlas cone woofers. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.


  • Top-graded PolyPlass cones.
  • High-quality sounding compression drivers.
  • New, appealing form factor.
  • High-definition imaging Waveguide with high-frequency compression driver.

Specifications

  • Quad 5.25″, 2.5-way compression driver center loudspeaker
  • Quad 5.25″ (133mm) PolyPlas Low-Frequency Woofer
  • High Definition Imaging (HDI) Waveguide with 1” (25mm) High Frequency Compression Driver
  • Recommended Amplifier Power Max 200W
  • Frequency Response 58Hz – 40kHz
  • Sensitivity 90 dB @ 1M, 2.83V
  • Nominal Impedance 6 Ohms
  • Crossover Frequencies 600 Hz, 2.2 kHz
  • Enclosure Type Bass-Reflex via Rear-Firing Tuned Port
  • Dimensions (W x D x H) 760 x 230 x 190mm
