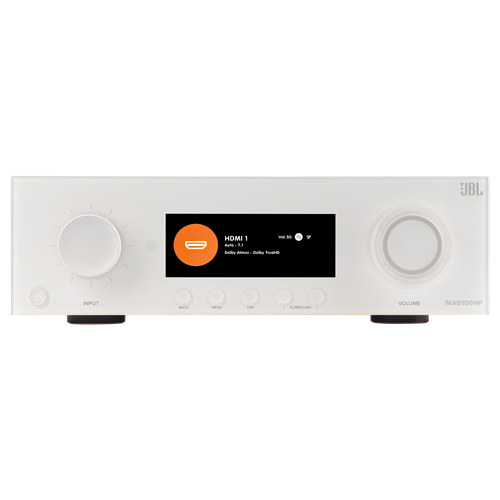

JBL 9CH Network Receiver WHT 125w x 9 - Dolby Atmos MA9100HP Roon Ready

Product Code: JB-MA9100HPWHT

Brand
JBL
RRP $2,759.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands JBL
Series JBL Electronics

MA9100HP - 9.2-channel 8K High Performance AV Receiver


The JBL MA9100HP high-performance AV Receiver offers exceptional realism, enhancing the home cinema experience to its fullest. Crafted with a dedication to music and film, it brings both mediums to life with authentic high fidelity.
Specifications

General:

  • HDMI eARC: Yes
  • HDMI Audio Return Channel: Yes
  • 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3
  • HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
  • HDR 10+, Dolby Vision: Yes , Yes
  • File format: MP3 / MPEG-4 AAC
  • Pure Analog: Yes
  • EZ Set EQ: Yes
  • Front channel bi-amp: Yes
  • Digital signal processing: up to 24-bit/192kHz
  • Mains voltage: 240V, 50Hz
  • Max. power consumption: 700W
  • Standby power consumption: <0.5W


Audio Spec:

  • Channels: 9.2
  • FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)140W
  • Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)140 W RMS
  • Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)240 W RMS


Control and Connections:

  • HDMI Input/Output: 6/ 2
  • Wi-Fi: Yes (2.4/5GHz)
  • Bluetooth receiver: Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
  • Bluetooth transmit: Yes
  • Digital Audio Input: 1 Coax, 1 Optical, 1 USB
  • Stereo analogue input: 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
  • Pre-Out: (single ended RCA)Stereo Zone 2, Subwoofer 1, Subwoofer 2
  • Ethernet: RJ45 Gigabit, WiFi Onboard

Dimensions:

  • Dimensions incl. feet and speaker terminals (H x W x D) 135.0mm x 432.0mm x 396.4mm
  • Weight: 7.6kg
