James 52QW Corner loaded Wedge Seri - Amber Tech
Products

James Loudspeaker

This is a Special Order Item

James 52QW Corner loaded Wedge Series speaker - Marine Grade James

Product Code: SO-52QW

Brand
James
$2,505.00 inc GST
RRP $2,505.00

Special Order Item
Increase value Decrease value
Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands James Loudspeaker
Series Wedge Series
Size 5.25"
Speaker Type Outdoor

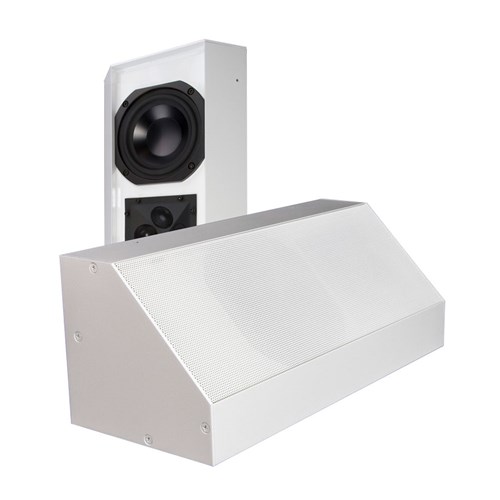

52Qw 5.25" 2-way Wedge Speaker

The 52Qw is a specialized all-terrain boundary application speaker system for integration into a 90 degree corner, such as at 2 walls or a wall and ceiling. This model is ideally suited for immersive 3D audio systems, such as Atmos, Auro3D, DTS:X, or for traditional music and home theater application when the speakers need to be mounted up high. This would include outdoor trellises, pergolas, under eave etc. This versatile speaker works well in residential and commercial installations where it can be located at ceiling and wall junctures to provide excellent sound performance yet minimal visible intrusion into the space, and with its compact design, this series easily integrates into any environment, both indoor and outdoor.

With a James proprietary 5.25" high excursion woofer, and the signature James aluminum dome quad-array tweeter, this compact speaker offers silky smooth response across a broad range of frequencies. All James cone transducers feature aluminum cones and Santoprene™ surrounds for outdoor and marine rated use.

The 52Qw is constructed entirely of aircraft grade aluminum for strength, sonic performance, and durability, and includes an aluminum perforated grille to provide years of trouble free use. This high grade aluminum also makes the loudspeaker marine and outdoor ready.

A unique mounting system features an easy to install corner bracket that the speaker clips into and securely fastened via setscrews and provides a clean looking visual with no exposed wires and brackets.

Custom colors are available.


Specifications

  • Frequency Response : 70Hz-24kHz +/-3dB
  • Nominal Impedance : 8 Ohms
  • Sensitivity : 88dB 2.83V/1m
  • Crossover : 2-way
  • Recommended Power Range : 20W - 150W
  • Woofer : (1) 5.25" (133mm) Aluminum:
  • Tweeter : (4) 0.75" (19mm) Quad Array Tweeter:
  • Enclosure :  Aircraft/marine Grade Aluminum:
  • Height : 15.5 in (393.70 mm)
  • Width : 5.859 in (148.82 mm)
  • Depth : 6.275 in (159.38 mm)
