IR SYS33 SoundPlus® T3 Infrared System with Stethoset Receivers

Williams AV (WI-IRSYS33)

Brand
Williams AV
RRP $5,849.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Williams AV

DESCRIPTION:

The IR SYS33 SoundPlus® T3 Stethoset Receiver System is an advanced solution for clear, efficient audio in professional environments. This upgraded system features the T3 medium-area infrared transmitter, now enhanced with the convenience of hands-free, under-the-chin stethoset receivers.

Utilising cutting-edge LED technology, the two-channel T3 transmitter delivers stronger, more reliable audio signals with greater efficiency and coverage compared to earlier models. Designed to prevent signal spillover, the system is ideal for adjacent rooms, with coverage reaching up to 19,000 sq ft (1,765 sq m) when paired with the WI-IRRX20 stethoset receiver and up to 32,000 sq ft (2,972 sq m) with the WI-WIRRX22-4N handheld receiver.

This all-in-one system comes with five wireless, two-channel stereo stethoset receivers and a five-bay charging station. The lightweight receivers are comfortable to wear, offering exceptional speech intelligibility and high-quality audio. To ensure ease of ADA/disability compliance, the package includes a power supply, charging station, ADA wall plaque, and a discreet mounting bracket for wall or ceiling installation, allowing seamless integration into any space. Perfect for environments requiring accessibility and high-performance audio, such as corporate boardrooms, conference rooms, and more.

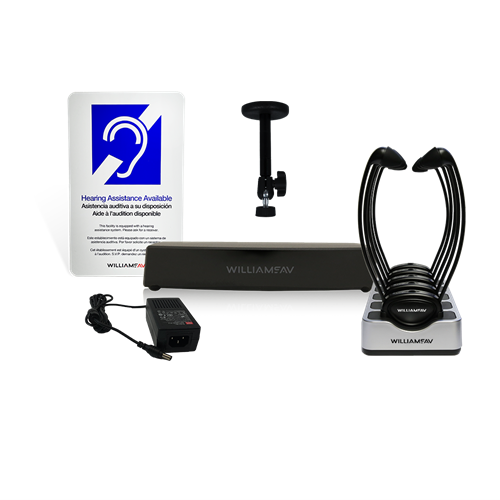

System Includes


  • 1x WI-IRT3 – Medium-area Infrared Transmitter

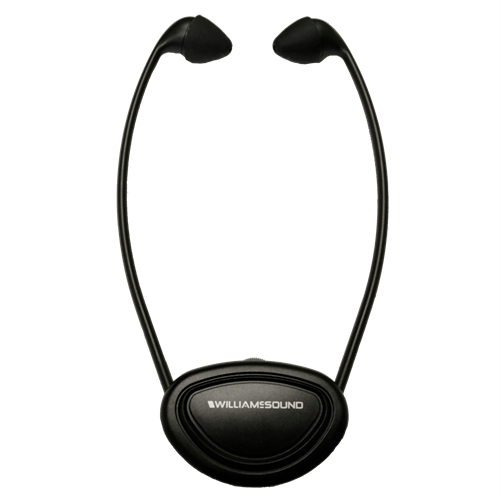

  • 5x WI-IRRX20 – Two-channel Stethoset Infrared Receivers
  • 1x WI-CHG520 – Charger

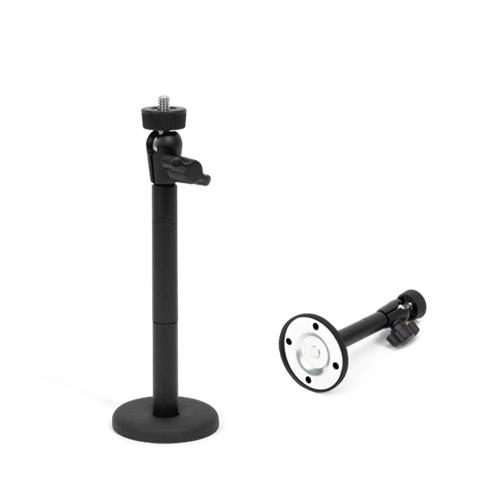

  • 1x WI-BKT024 – Wall/Ceiling Mount
  • 1x WI-IDP008 – ADA Wall Plaque
  • 1x WI-TFP057 – Power Supply

SPECIFICATIONS:


  • Dimensions: 9.0″ W (229 mm) x 3.8″ D (97 mm) x 1.4″ H (36 mm)
  • Weight: 0.84 lb. (0.38 kg)
  • Color: Black
  • Power Supply: WI-TFP057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
  • DC Power Input: 2.1 mm ID barrel connector, 48 VDC, 0.2A, centre positive
  • Power Indicator: Green LED
  • Sleep/Power Save Mode: Shuts off IR when no audio present for 12 minutes
  • Modulation: FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis
  • Transmit Frequencies: 2.3, 2.8, 3.3, 3.8 MHz
  • Coverage Area: Up to 19,000 sq ft (1,765 sq m) in single-channel mode with the WI-IRRX20 stethoset receiver. Up to 32,000 sq ft (2,972 sq m) in single-channel mode with the WI-WIRRX22-4N handheld receiver

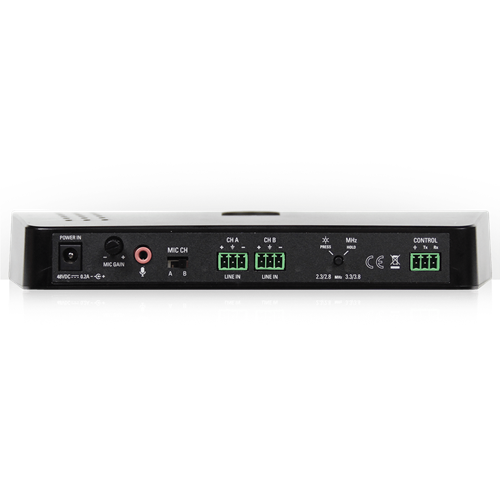

  • Audio Inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
  • Audio Indicators: One yellow LED per channel. Lights up and stay on steady with minimum audio level.
  • Signal-to-Noise Ratio: 70 dB (line input)
  • Frequency Response: 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs) 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
  • Operating Requirements: 32°-122°F (0-50°C)
  • Mounting Kit: Wall or Ceiling mount: WI-BKT024 Omnidirectional mount
  • Compatible Receivers: WI-WIRRX22-4N and WI-IRRX20

Note: The WI-IRSYS33 replaces the WI-IRSY4.
