IR SYS32 SoundPlus T3® Infrared System with Headphones

Williams AV (WI-IRSYS32)

Brand
Williams AV
RRP $4,449.00


Quantity In Cart:
Unit of Measure
EACH



Unspecified
Technical Specifications
Brands Williams AV
  • Details
  • Downloads
  • Where to Buy
  • Ordering

DESCRIPTION:

Building on years of infrared audio delivery expertise, Williams AV is pleased to introduce the new IR SYS32 SoundPlus® IR T3 commercial-grade, medium-area infrared transmitter kit. Its sleek, compact footprint is ideal for assistive listening and language interpretation in commercial spaces such as conference rooms, assisted living facilities, small cinema/theaters, classrooms and courtrooms. The new IR T3 infrared transmitter offers 50 percent greater coverage than the previous IR device (IR T2) and new control system readiness. With a significantly wider coverage pattern and more power, there is no need for the additional expense of secondary units.

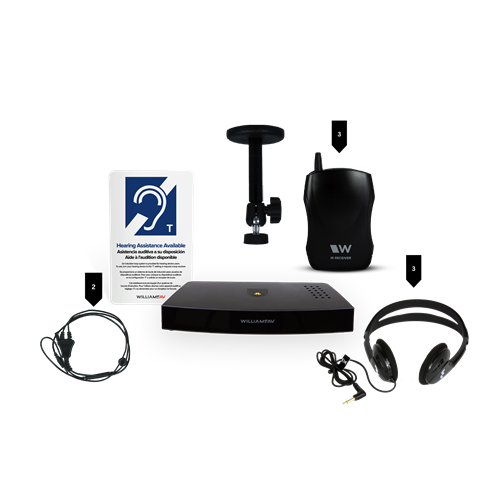

System Includes:

  • 1x WI-IRT3 – Medium-area Infrared Transmitter
  • 3x WI-WIRRX22-4N Four-channel Infrared Receivers

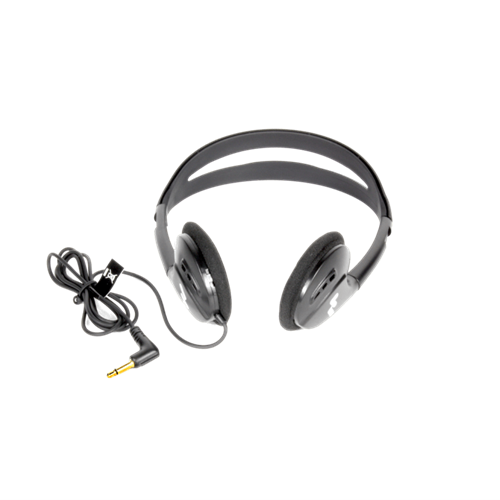

  • 3x WI-HED021 Mono Folding Headphones
  • 2x WI-NKL001 18″ Mono Neckloops
  • 3x BAT 001-2 AA Alkaline Batteries

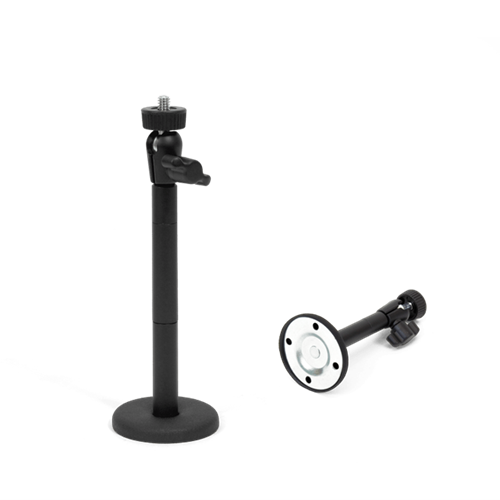

  • 1x WI-BKT024 Wall/Ceiling Mount
  • 1x WI-IDP008 ADA wall plaque
  • 1x WI-TFP057 Power Supply

Specifications:


  • Dimensions: 9.0″ W (229 mm) x 3.8″ D (97 mm) x 1.4″ H (36 mm)
  • Weight: 0.84 lb. (0.38 kg)
  • Color: Black
  • Power Supply: WI-TFP057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
  • DC Power Input: 2.1 mm ID barrel connector, 48 VDC, 0.2A, centre positive
  • Power Indicator: Green LED
  • Sleep/Power Save Mode: Shuts off IR when no audio present for 12 minutes
  • Modulation: FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis
  • Transmit Frequencies: 2.3, 2.8, 3.3, 3.8 MHz
  • Coverage Area: Up to 19,000 sq ft (1,765 sq m) in single-channel mode with the WI-IRRX20 stethoset receiver. Up to 32,000 sq ft (2,972 sq m) in single-channel mode with the WI-WIRRX22-4N handheld receiver
  • Audio Inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
  • Audio Indicators: One yellow LED per channel. Lights up and stay on steady with minimum audio level.
  • Signal-to-Noise Ratio: 70 dB (line input)
  • Frequency Response: 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs) 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
  • Operating Requirements: 32°-122°F (0-50°C)
  • Mounting Kit: Wall or Ceiling mount: WI-BKT024 Omnidirectional mount
  • Compatible Receivers: WI-WIRRX22-4N and WI-IRRX20

Note: The WI-IRSYS32 replaces the WI-IRSY5.
