IR SYS31 SoundPlus® T3 Portable Infrared Courtroom System

Williams AV (WI-IRSYS31)

Brand
Williams AV
RRP $4,949.00


Quantity In Cart:
Unit of Measure
EACH



Unspecified
Technical Specifications
Brands Williams AV
  • Details
  • Downloads
  • Where to Buy
  • Ordering

DESCRIPTION:

The IR SYS31 SoundPlus® T3 Portable Infrared Audio System Kit is specifically designed to enhance assistive listening and language interpretation in environments such as courtrooms. Featuring the advanced SoundPlus® T3 infrared transmitter, this system provides reliable audio transmission with crystal-clear sound quality.

Ideal for easy relocation between different rooms, the system comes with a convenient carry case for simple transport. It offers impressive coverage of up to 32,000 sq ft (2,972 sq m). The T3 transmitter is securely mounted on a table-top tripod, ensuring a stable setup, while the omnidirectional conference microphone captures clear audio throughout the entire space.

The system includes handheld receivers that pick up the infrared signal, providing audio through lightweight surround earphones or a mono neckloop. The neckloop connects directly to T-coil hearing aids or cochlear implants, making it an ideal solution for hearing assistance in professional settings. Perfect for environments that require seamless, high-quality audio and accessibility, this system ensures effective communication for all users.

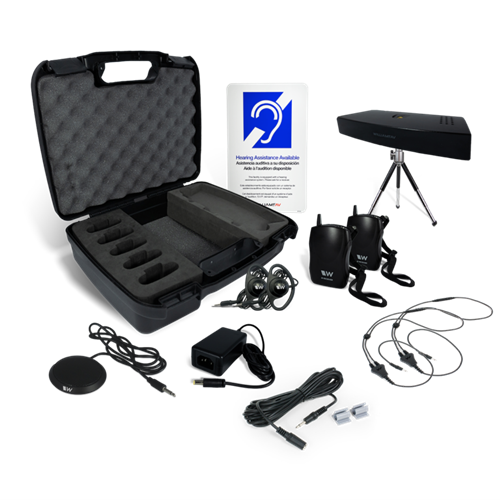

SYSTEM INCLUDES:

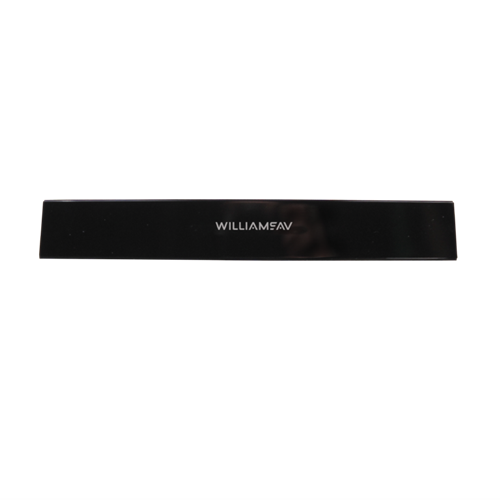

  • 1x WI-IRT3 Medium-area Infrared Transmitter

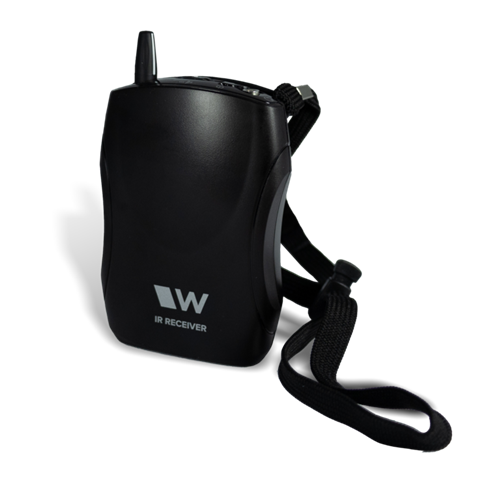

  • 2x WI-WIRRX22-4N Four-channel Infrared Receivers

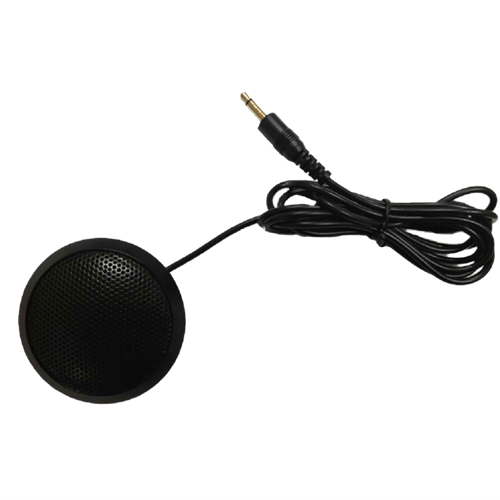

  • 1x WI-MIC149 Omnidirectional Conference Microphone

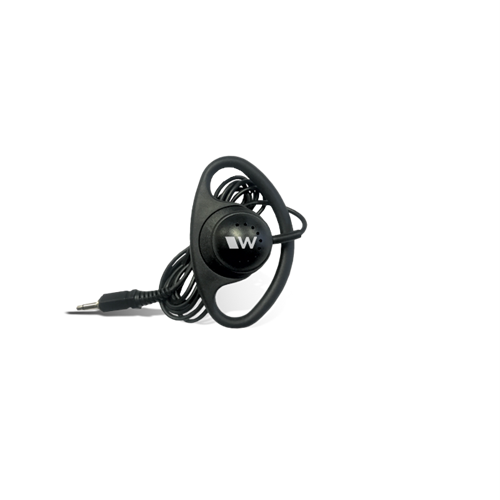

  • 2x WI-EAR022 Surround Earphones

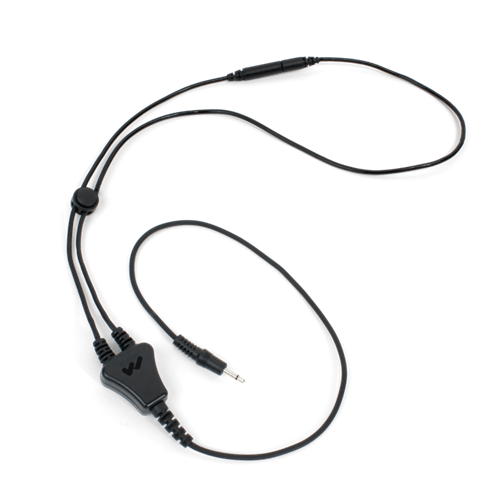

  • 2x WI-NKL001 18″ Mono Neckloops
  • 2x AA Alkaline Batteries

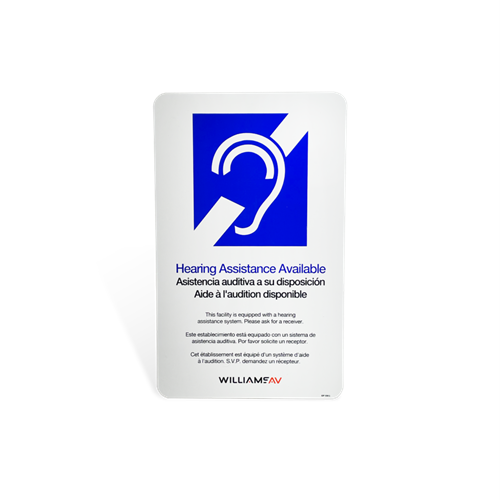

  • 1x WI-IDP008 ADA Wall Plaque
  • 1x WI-CCS029 Carry Case

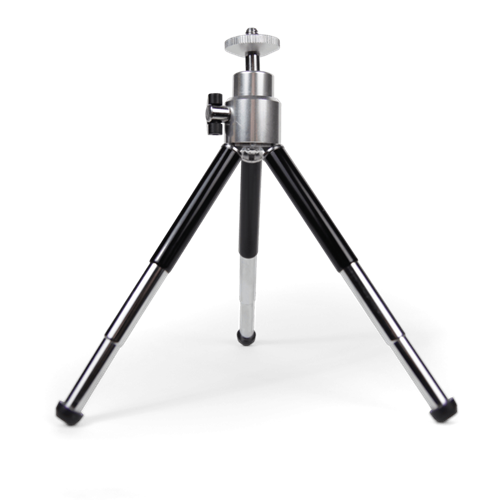

  • 1x WI-STD007 Table-top Tripod
  • 1x WI-TFP061 Power Supply

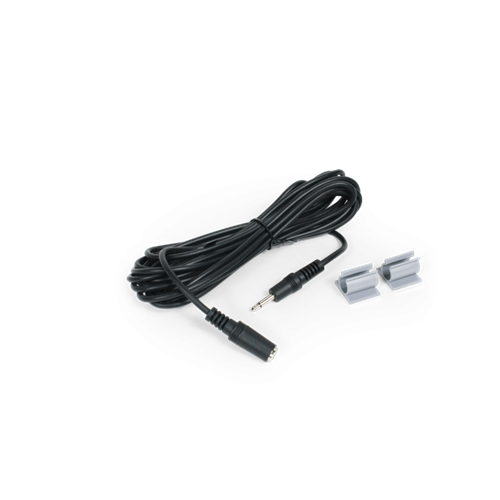

  • 1x WI-WCA135 WC 12-foot Mono Cable

SPECIFICATIONS:

  • Dimensions: 9.0″ W (229 mm) x 3.8″ D (97 mm) x 1.4″ H (36 mm)
  • Weight: 0.84 lb. (0.38 kg)
  • Color: Black
  • Power Supply: WI-TFP057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
  • DC Power Input: 2.1 mm ID barrel connector, 48 VDC, 0.2A, centre positive
  • Power Indicator: Green LED
  • Sleep/Power Save Mode: Shuts off IR when no audio present for 12 minutes
  • Modulation: FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis
  • Transmit Frequencies: 2.3, 2.8, 3.3, 3.8 MHz
  • Coverage Area: Up to 19,000 sq ft (1,765 sq m) in single-channel mode with the WI-IRRX20 stethoset receiver. Up to 32,000 sq ft (2,972 sq m) in single-channel mode with the WI-WIRRX22-4N handheld receiver
  • Audio Inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
  • Audio Indicators: One yellow LED per channel. Lights up and stay on steady with minimum audio level.
  • Signal-to-Noise Ratio: 70 dB (line input)
  • Frequency Response: 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs) 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
  • Operating Requirements: 32°-122°F (0-50°C)
  • Mounting Kit: Wall or Ceiling mount: WI-BKT024 Omnidirectional mount
  • Compatible Receivers: WI-WIRRX22-4N and WI-IRRX20

Note: The WI-IRSYS31 replaces the WI-IRSY6.
