IR Plus Large-area Sys Dante IRSY22D Williams AV

Product Code: WI-IRSY22D

Brand
Williams AV
RRP $18,149.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Williams AV
Product type IR Systems

Large-area Dante Infrared System with Bodypack Receivers


IR SYSTEMS: IR SY22 D
Commercial-grade, large-area Dante infrared system with IR+ transmitter, 4 emitters and array.

Description
Commercial-grade, large-area Dante infrared system with IR+ transmitter, 4 emitters and array.

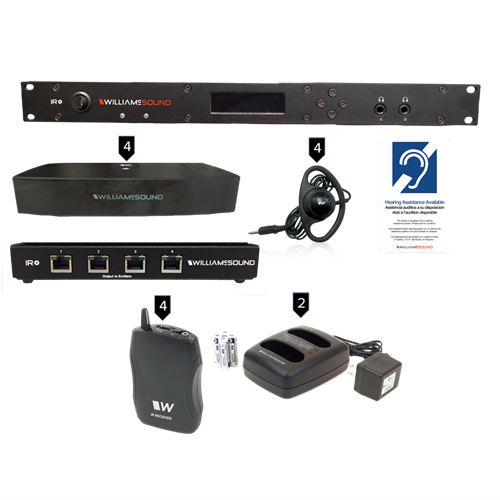

System Includes

  • (1) IR M1 D infrared modulator with Dante input
  • (4) IR E4 emitters,

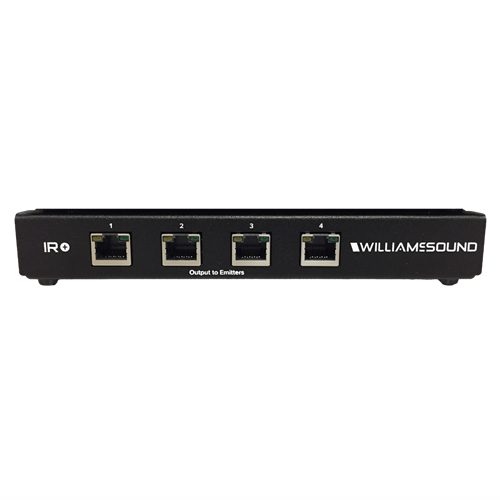

  • (1) IR A4 array
  • (4) WIR RX22-4N receivers
  • (2) BAT KT6 dual bay chargers
  • (4) EAR 022 earphones
  • (1) IDP 008 ADA wall plaque

IR SY22 D Specifications

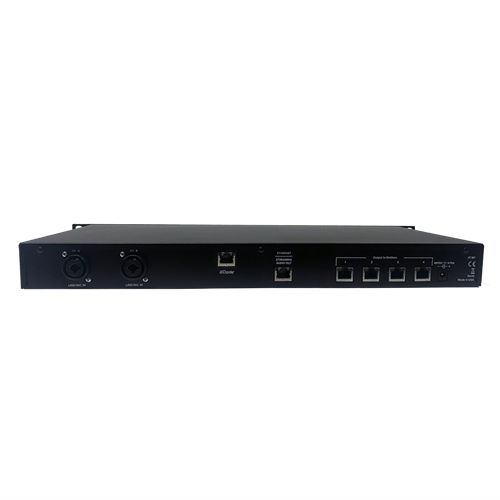

IR M1

  • Dimensions:    48.3 cm x 4.5 cm x 20.8 cm
  • Weight:    2.4 kg
  • Colour:    Black
  • Rack Mount:    Single Rack Unit
  • Power Supply:    International Desktop Supply
  • Input: 36 W, 110-240 VAC 50-60 Hz
  • Output: +48VDC, 0.75A center-positive
  • Power Switch:    Rocker switch with LED
  • Signal to Noise Ratio:    67 dB (typical)
  • Modulation:    FM Wideband, +50kHz deviation, 50uS pre-emphasis
  • Carrier Frequency:    Selectable, 2.3/2.8 or 3.3/3.8MHz
  • Frequency Response:    40 to 16,000Hz, +1 dB, -3dB, electrical response
  • Total Harmonic Distortion:    Less than 2%, electrical response
  • Audio Processor Functions:    DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
  • Auto Carrier Shut-Off:    Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
  • Infrared Test LED:    Dual IR LED for receiver testing, monitoring, and audio signal testing.
  • Audio Input:    (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
  • Dante:    Optional
  • Internal Test Tone:    400 Hz internal test tone selectable as audio input source for setup and diagnostics
  • Remote Configuration:    Available through embedded website
  • Headphone Output:    (2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs
  • Emitter Output Jack:    Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
  • Operating requirements:    0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
  • Approvals:    CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
  • Warranty:    2 years on Modulator, 90 days on accessories

IR E4

  • Dimensions:    19.1 cm x 3.6 cm x 9.1 cm
  • Weight:    362 g
  • Colour:    Black
  • Power:    48 VDC supplied by IR M1 via CAT 5e cable.
  • Coverage Area:    Up to 18,000 square feet in single channel mode
  • Connectivity:    +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1.
  • Operating requirements:    0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
  • Approvals:    CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
  • Warranty:    2 years on Emitter; 90 days on accessories

CHG 520

  • Dimensions:    30.48 cm x 15.875 cm x 3.81 cm
  • Weight:    13.6 lbs
  • Colour:    Black metal and plastic
  • Power Supply Input:    120 VAC
  • Power Supply:    100-240V / 12VDC TFP 043
  • Unit Capacity:    5 Units
  • Indicators:    Individual Charging Indicators: Red LEDs
  • Warranty:    1 year (90 day warranty on cables and power supply)
  • Approvals:    WEEE, RoHS, CE, FCC, CANADA, RCM, VCCI

IR RX20

  • Weight:    1.6 oz
  • Material and Color:    IR Transparent polycarbonate, black
  • Battery Type:    LiPo
  • Battery Life:    8 hours
  • Battery Charger:    CHG 520
  • Operating Temp:    32-122° F (0-50° C)
  • Range:    Up to 15,000 sq. ft. in single channel mode with IR T2 transmitter
  • Operating Frequency:    2.3 MHz or 2.8 MHz or stereo
  • Frequency Response:    100 Hz to 12 kHz, ± 3 dB
  • Signal to Noise Ratio:    60 dB at 10 m
  • Controls:    Volume control thumbwheel;3-position selection switch (2.3 MHz, 2.8 MHz, stereo), Off/on slider for power
  • Acoustic Output:    120 dB MAX SSPL90 with 2 cc coupler
  • Compatibility:    Compatible with 2.3 MHz and 2.8 MHz IR transmitters
  • Headphone Jack:    3.5mm stereo
  • Ear pads:    EAR 089
  • Approvals:    CE, RoHS, FCC, Canada, RCM, VCCI, WEEE
  • Warranty:    5 years (90 days on battery)
  • Warranty: 2 Years
