Hearing Loop and Induction Loop

IR+ Flex IR ME2 Williams AV

Product Code: WI-IRME2

Brand
Williams AV
RRP $9,149.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Williams AV
Product type IR Systems
  • Details
  • Downloads
  • Where to Buy
  • Ordering

IR+ Flex


IR SYSTEMS
IR ME2

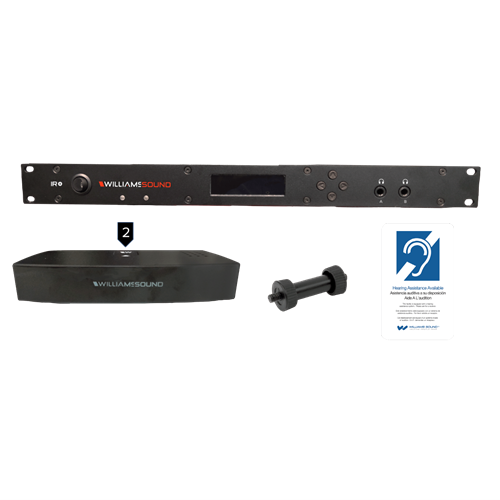

IR+ system features with two emitters, bracket and ADA sign.

System Includes

  • IR M1 infrared modulator
  • (2) IR E4 emitter
  • IDP 008 accessibility sign
  • MLB 003 linking bar

  • IR M1
  • Dimensions:
    • 19” (W) x 1.75” (H) x 8.2” (D)
    • (48.3 cm x 4.5 cm x 20.8 cm)
  • Weight:    5.2lb. (2.4 kg)
  • Colour:    Black
  • Rack Mount:    Single Rack Unit
  • Power Supply:    International Desktop Supply
  • Input: 36 W, 110-240 VAC 50-60 Hz
  • Output: +48VDC, 0.75A center-positive
  • Power Switch:    Rocker switch with LED
  • Signal to Noise Ratio:    67 dB (typical)
  • Modulation:    FM Wideband, +50kHz deviation, 50uS pre-emphasis
  • Carrier Frequency:    Selectable, 2.3/2.8 or 3.3/3.8MHz
  • Frequency Response:    40 to 16,000Hz, +1 dB, -3dB, electrical response
  • Total Harmonic Distortion:    Less than 2%, electrical response
  • Audio Processor Functions:    DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
  • Auto Carrier Shut-Off:    Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
  • Infrared Test LED:    Dual IR LED for receiver testing, monitoring, and audio signal testing.
  • Audio Input:    (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
  • Dante:    Optional
  • Internal Test Tone:    400 Hz internal test tone selectable as audio input source for setup and diagnostics
  • Remote Configuration:    Available through embedded website
  • Headphone Output:    (2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs
  • Emitter Output Jack:    Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
  • Operating requirements:    0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
  • Approvals:    CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
  • Warranty:    2 years on Modulator, 90 days on accessories

IR E4

  • Dimensions:
    • 7.5” (W) x 1.4” (H) x 3.6” (D)
    • (19.1 cm x 3.6 cm x 9.1 cm)
  • Weight:    0.8 lb (362 g)
  • Color:    Black
  • Power:    48 VDC supplied by IR M1 via CAT 5e cable.
  • Coverage Area:    Up to 18,000 square feet in single channel mode
  • Connectivity:    +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1.
  • Operating requirements:    0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
  • Approvals:    CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
  • Warranty:    2 years on Emitter; 90 days on accessories
  • Warranty
  • 2 Years
