In Ear Style Mic/Headphone MIC102 Williams AV

Product Code: WI-MIC102

Brand
Williams AV
$599.00 inc GST
RRP $599.00

Special Order Item
Increase value Decrease value
Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Williams AV
Adapter Type 3.5mm
Microphone Type Headset Microphones

MIC 102 EAR SET MICROPHONE FOR DLTS

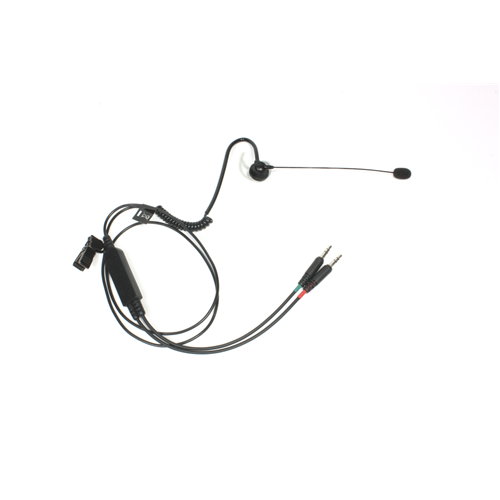

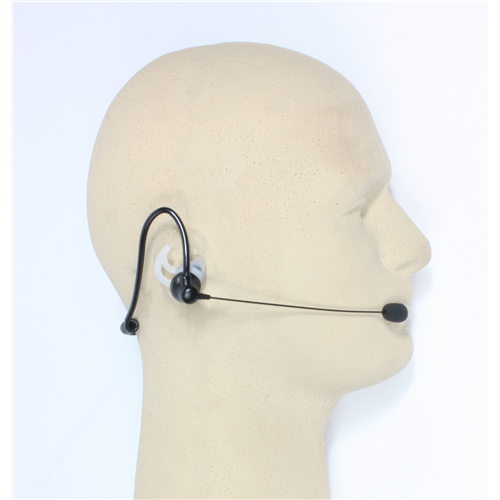

In-the-ear style microphone/headphone for use with all generation DLT transceivers. 3.5 mm plugs, silicone earpiece, discrete wire omnidirectional condenser microphone. Weight: 0.10 lbs (45 g).

system includes

  • Earphone/headphone unit, corded with 3.5mm plugs
  • Lapel clip
  • 2 additional silicone earpieces
features
  • Discrete wire, omnidirectional condenser microphone/earpiece headphone
  • 3 silicone ear pieces, different sizes
  • Lapel clip
  • 3.5mm mono plugs
  • Recommended for all generation DLT transceivers

Specifications

mic 102
  • Microphone:
    • Sensitivity Range: -47 ±3dB RL=2.2kΩ Vs=2.0VDC 1kHz 0dB-1V/Pa
    • Impedance: Max 2.2kΩ 1kHz (RL=2.2kΩ)
    • Frequency Response: 50 – 16,000 Hz
  • Current Consumption: Max 0.5µA RL=2.2kΩ VS=3.0VDC
  • Operating Voltage Range: 2-10VDC
  • Speaker:
    • Impedance: 8Ω ±15% at 1200Hz at 1.0V
    • Rated Power: 0.5W
    • Resonance Frequency: Fo 750Hz ±20% at 1.0V
    • Frequency Range: Fo ~ 20000Hz
    • Output SPL:
    • 89dB ±3dB at 0.3W/0.1m 1.0k, 1.2k, 1.5k, 2.0kHz
    • 72dB ±3dB at 1W/1m 1.0k, 1.2k, 1.5k, 2.0kHz
    • Frame Material: Metal
    • Operating/Storage Temp:-20 to 85°C
    • Weight: 0.010 lbs (45 g)
  • Certifications/Approvals: WEEE, RoHS
