Products

Chiayo Electronics

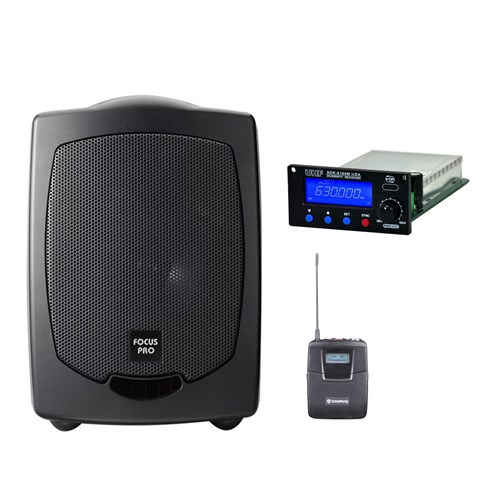

Focus Pro Portable PA + BT 1 Beltpack inc lapel mic Band 5A -520-526 MHZ

Product Code: CH-FOPROB-5A

Brand
Chiayo
RRP $1,429.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Kit Components
Code
Item
Qty
CH-FOCUSPRO-00PC
Focus Pro Port Bt Only No Mod FOCUSPRO-00PC Chiayo
1.0
CH-KITASSEMBLY
Kit assembly to be completed by Amber Service Dept. Expect up to 48 hr delay in shipment
1.0
CH-SDR8200M-5A
SDR8200M 100Ch True Div Uhf RX Module Chiayo
1.0
CH-SM6100-5A
SM6100 100 Ch B/Pack transmitter & Mic Chiayo
1.0
Technical Specifications
Brands Chiayo Electronics
Microphone Type Portable PA
  • Details
  • Downloads
  • Where to Buy
  • Ordering

focus Pro Portable PA Mic kit

FOCUS-PRO


FEATURES

  • High efficiency Class D amplifier produces MAX. 70W audio output (MAX. 140W with external speaker)
  • All-in-one! Easy to operate in both indoors and outdoors.
  • Portable amp system eliminates all cables so you can take it anywhere!
  • 70W speaker system 6 1/2" full range driver
  • 1 x 6.35mm Mic and 1 x 6.35 mm Line input.
  • Up to 2 diversity receiver modules with 100 frequencies. (order seperarately CH-SDR8200M)
  • 6.35 mm auxillary out.
  • 6.35 mm Speaker out for an external 4 ohm passive speaker
  • Voice priority function automatically ducks music during speech (switchable).
  • 2-band EQ for Mic. 3-band EQ for music.
  • Tripod stand mountable with ST40
  • 2 power modes: Internal Rechargeable battery & DC jack
  • Up to to 20 hours operating time per charge with Li-Ion batteries
  • Ships with DPRB600M Dig rec/player with USB and Bluetooth
  • Includes SB21 carry bag


SM6100-5A Belt Pack


FEATURES

  • includes MC16 lapel mic
  • Multi-function LCD display for channel/frequency, sensitivity, battery status indicator, Alkaline/NiMH battery selection
  • Patented IrDA technology for 2-way data transfer between transmitter and receiver.
  • 100 frequencies agile in 25 MHz bandwidth
  • ±40 KHz peak deviation.
  • 35 mW maximum transmission power.
  • Supports various lavalier, headset and instrument microphones as well as guitar cable.
  • Power-On LED.
  • Uses 2 pcs AA batteries to operate
  • Low current consumption
  • Long operating time up to 16 hours.
  • Standard 4-pin mini XLR connector.
  • 1/4 wave whip antenna.
  • A choice of various lavalier or Headset microphones.
  • MT and GT gain controls for beltpack microphones.
  • Detachable belt-clip for changing of wearing position.
  • Matching battery charger: HC-92



SDR8200M-5A UHF Module

100 CH TRUE DIV UHF MODULE BAND 5A
