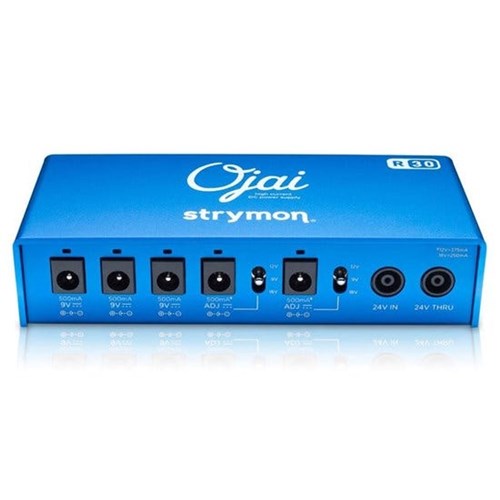

Strymon Ojai R30 Expansion

Product Code: SN-OJAI-R30-EXP

Brand
Strymon
RRP $299.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Strymon
Product type Power Supply



Expand your Strymon power system.

Never run out of outputs.

Have an existing Strymon effects pedal power supply? Gain five additional isolated pedal outputs with an Expansion Kit. Easily build a modular power system that can grow with your pedalboard.

How does it work?

Expansion Kits require an existing Strymon power product which connects to an AC power outlet, either directly (Zuma, Zuma R300) or via an external power adapter (Ojai R30, Ojai). Simply link an Expansion Kit to your existing Strymon power product via the 24V jack.

Expansion Kit Options

Ojai R30 Expansion Kit

Strymon Ojai R30 Pedal Power Supply

5 total outputs (2 adjustable 9/12/18V).

Power adapter not included.

Requires existing Strymon power system.

Ojai Expansion Kit

Strymon Ojai Pedal Power Supply

5 total outputs (9V).

Power adapter not included.

Requires existing Strymon power system.

What is included?

Expansion Kits consist of an isolated power distributor and all of the necessary connection cables to integrate it with your existing Strymon power supply and power up to five additional effects pedals.

When should I use an Expansion Kit?

Use an Expansion Kit when you need to add more pedals to your Strymon powered pedalboard. Expansion Kits do not come with a power adapter, and will operate only when connected to an existing Strymon power product.

Example Setups

Ojai Expansion Diagram

Zuma provides nine high-current, fully isolated pedal outputs for your 9V, 12V, and 18V effects pedals. Add five more high-current 9V outputs to your rig by connecting an Ojai Expansion Kit.

Ojai R30 Expansion Diagram

Ojai R30 provides five high-current, fully isolated pedal outputs for your 9V, 12V, and 18V effects pedals. Add five more identical outputs to your rig by connecting an Ojai R30 Expansion Kit.

Frequently Asked Questions

How many Expansion Kits can I add to my Strymon power system?

An Expansion Kit adds 5 additional outputs to your Strymon power distribution system. You can add as many as 6 Expansion Kits to your system, powering up to 30 additional effects pedals, depending on which Zuma or Ojai power supply is connected to the power source and the total current requirements for the pedals.

While it’s unlikely that anyone would go to such an extreme, we wanted to ensure that the Strymon power system delivers maximum flexibility and expandability. A much more likely scenario would be to link 2 or 3 Ojai units together, powering a combination of up to 15 high and low current draw pedals.

Zuma is capable of delivering 48W, Zuma R300 can deliver 36W, and the PS-124 power adapter bundled with Ojai and Ojai R30 can deliver 24W.

Specs

  • 5 high-current, fully isolated 9V outputs with center-negative polarity
    • 3 dedicated 9V outputs (500mA)
    • 2 adjustable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
  • 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18″ length)
  • EIAJ-05 power adapter cable included (18″ long, to connect Ojai to PS-124, Zuma, or Zuma R300 power supply)
  • 24V Thru jack allows connection to additional Strymon Ojai (sold separately)
  • 5 individual custom transformers (one per channel) deliver clean, consistent power
  • Worldwide power compatibility ensures no-hassle international touring
  • Energy efficient, compact design
  • Lightweight and rugged anodized midnight blue aluminum chassis
  • Ultra low profile design fits under nearly any pedalboard
  • Designed and built in the USA

Strymon Power Supply Family

  • Zuma - High Current DC Pedal Power Supply

    Zuma – High Current DC Pedal Power Supply

  • Zuma R300 - Low Profile High Current DC Pedal Power Supply

    Zuma R300 – Ultra Low Profile DC Pedal Power Supply

  • Ojai R30 - High Current DC Pedal Power Supply

    Ojai R30 – Low Profile High Current DC Pedal Power Supply

  • Ojai - Compact High Current DC Pedal Power Supply

    Ojai – Compact High Current DC Pedal Power Supply
