Digiwave Transceiver AIM Ver. DLT400 Williams AV

Product Code: WI-DLT400-AIM

Brand
Williams AV
RRP $1,399.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Williams AV

Digi-Wave AIM (Advanced Interpretation Module) Transceiver


DIGI-WAVE TRANSCEIVERS AND RECEIVERS, INTERPRETATION & TRANSLATION


DLT 400-AIM

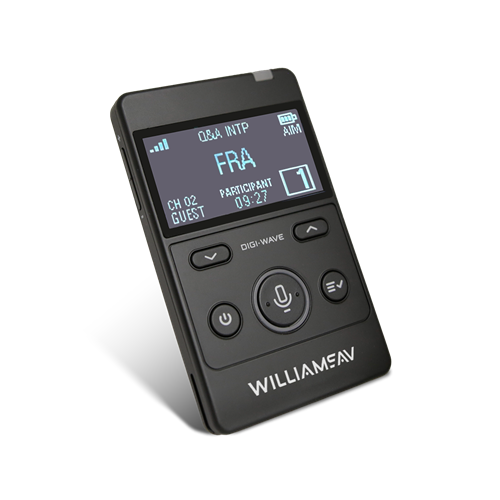

The Digi-Wave 400 Advanced Interpretation Module (AIM) is a portable, digital communication system specially designed for interpretation. With Digi-Wave AIM, you can enjoy all the features of Digi-Wave 400 plus; effortless Q&A mode for switching languages during interpreted discussions, customized channel naming, a control mode for offline programming, subgroup division, and an industry-leading 24 available channels.

The Digi-Wave AIM Transceiver is an excellent tool for interpretation during training, presentations, and tours. It supports bilingual two-way guided tours, language interpretation with Q&A, and bilingual meetings. With Digi-Wave AIM, you can enjoy all the features of Digi-Wave 400 plus; effortless Q&A mode for switching languages during interpreted discussions, customized channel naming, a control mode for offline programming, subgroup division, and an industry-leading 24 available channels.

  • Q&A Mode – Industry unique feature enables easy Questions and Answers switching between two languages. With this device, every participant can listen and speak, enabling seamless discussions with two open microphones per language at a time. The industry-unique feature of two-way communication between the interpreter and the audience also allows audience members to ask questions back to the interpreter.
  • Custom Channel Naming – Customize room names or choose from 100 ISO language codes
  • 24 Channels – Industry-leading channel count with up to 24 channels available for interpretation
  • Control Function – The control function allows administrators to program channel names and subgroups offline and update all devices in the system when convenient for the administrator.
  • Subgroup Division–  The subgroups function allows administrators to program custom channel names and subgroups offline, making it easy for guests to identify the language they are hearing or the subgroup they belong to. Great for divisible rooms or changing group needs.

System Includes

The DLT 400-AIM has an internal rechargeable battery and includes the charging pack DW ACC PAC4.

Features

  • Q&A Mode – Industry unique feature enables easy Questions and Answers switching between two languages
  • Custom Channel Naming – Customize room names or choose from 100 ISO language codes
  • 24 Channels – Industry-leading channel count with up to 24 channels available for interpretation
  • Control Function – Program channel naming and subgroups offline
  • Subgroup Division– Divide interpretation groups into subsets of channels. Great for divisible rooms or changing group needs.

Specifications

  • Dimensions    2.60”W x 4.22”H x 0.50”D (66 mm x 107.3 mm x 12.6 mm)
  • Weight    3.3 oz (94 g) including battery
  • Color    Black/Silver (Front/Back)
  • Case Material    Black ABS plastic
  • Battery type    Lithium Polymer with smart charge built into transceiver; 1800 mAH
  • Battery life    Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
  • Power Save    Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
  • Charge time    5 hrs. approx.
  • System Voltages    OLED 14VDC; RF 5VDC; Logic 3.3 VDC
  • Operating frequencies    2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
  • Audio Frequency response (-3dB Level)    Intercom Mode, Court Mode, INTP24 Mode, Q&A INTP: 100 – 7,200 Hz
  • Other Modes: 100 – 11,500 Hz
  • SNR    73 dB (A-weighted, default Rx volume with mic input )
  • THD    0.1 % (Default Volume, 1kHz)
  • Microphone input    Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
  • Line Input    USB-C, Adjustable level
  • Headphone Output    3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
  • Audio Output
    • Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)
    • Line: USB-C, Adjustable level
  • Range    Up to 900 ft (274 m) (depending upon environmental conditions)
  • Modulation    FSK
  • RF Output    19 dBm Typical
  • Security    87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
  • Side tone    -6 dB below volume, tone variation (Off, Low and High settings available)
  • Indicators    OLED
  • LEDs    Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
  • Charging Connectors    USB-C; Two contacts for use with CHG 412
  • Compatible Receiver    DLR 400 RCH (with firmware 1.3.0 or greater)
  • Operating Temperature Range    14º to 113ºF (-10º to 45ºC)
  • Approvals    FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
