Digiwave System Pack V4.0 DWSCOM6-400

Product Code: WI-DWSCOM6-400

Brand
Williams AV
RRP $9,599.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Williams AV

DWS COM 6 400 DIGI-WAVE 400 WIRELESS INTERCOM SYSTEM

Digi-Wave 400 Series Wireless Intercom System for up to six participants.

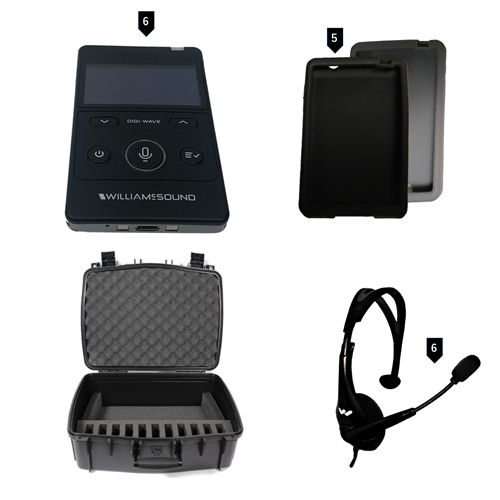

System includes

  • (6) DLT 400 transceivers
  • (6) MIC 144 headset microphones
  • (1) CCS 056 DW 11 system carry case
  • (1) CCS 061 GR grey silicone skin
  • (5) CCS 061 BK black silicone skins

Specifications

ccs 056 dw 11
  • Interior Dimensions: 13.0” W x 18.0” L x 6.7”H (33 cm W x 46 cm L x 17 cm H)
  • Exterior Dimensions: 15.7” W x 19.7” L x 7.2” H (40 cm W x 50 cm L x 18 cm H)
  • Lid Inner Depth: 1.5” (4 cm)
  • Bottom Inner Depth: 5.2” (13 cm)
  • Approx. weight (empty): 6.6 lbs (3 kg)
  • Material: Copolymer
  • Minimum Temperature: -40ºF (-40ºC)
  • Maximum Temperature: 160ºF (71.1ºC)
dlt 400
  • Dimensions: 4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)
  • Weight: 3.3 oz (94 g) including battery
  • Color: Black/Silver (Front/Back)
  • Case: Material Black ABS plastic
  • Battery type: Lithium Polymer with smart charge built into transceiver; 1800 mAH
  • Battery life: Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
  • Power Save: Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
  • Charge time: 5 hrs. approx.
  • Operating frequencies: 2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
  • Audio Frequency response (-3dB Level):
    • Intercom Mode: 100 - 7,200 Hz
    • Other Modes: 100 - 11,500 Hz
  • SNR: 73 dB (A-weighted, default Rx volume with mic input )
  • THD: 0.1 % (Default Volume, 1kHz)
  • Microphone input: Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
  • Line Input: USB-C
  • Headphone Output: 3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
  • Audio Output: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)
  • Range: Up to 900 ft (274 m) (depending upon environmental conditions)
  • Modulation: FSK
  • RF Output: 19 dBm Typical
  • Security: 87 bit encryption (300 Series Compatiable), 87+128 bit Encryption, Encrpytion PIN, Lock for settings
  • Side tone: -6 dB below volume, tone variation (Off, Low and High settings available)
  • Indicators: OLED
  • LEDs: Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
  • Charging Connectors: USB-C; Two contacts for use with CHG 412
  • Compatible Receiver: DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations
  • Operating Tempurature: Range 14º to 113ºF (-10º to 45ºC)
  • Approvals: FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
  • Warranty: 2 years parts and labor (90 days on accessories); 6 months on internal battery
