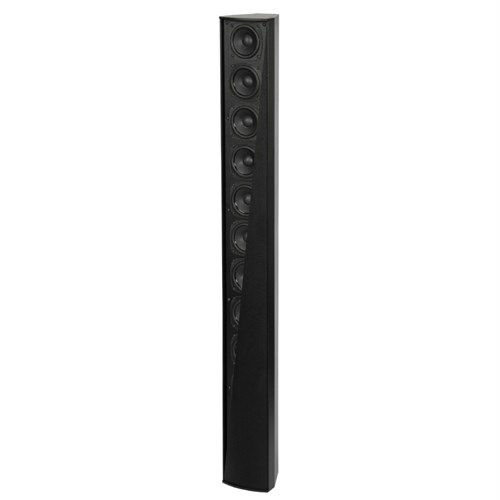

Digital Steered Spkr Black ICC12/3-RN-BK Renkus Heinz

Product Code: RH-ICC12/3-RN-BK

Brand
Renkus Heinz
RRP $12,900.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Renkus Heinz
Series Iconyx Compact
Size 12 x 3"
Speaker Type Stage / Stadium
  • Details
  • Downloads
  • Where to Buy
  • Ordering

ICC12/3Ultimate Flexibility in a Smaller Array

The Iconyx Compact series ICC12/3 brings the ultimate flexibility of the Iconyx to a smaller footprint array. An all-new twelve-channel digital amplifier powers twelve, 3"/77 mm full-range, high sensitivity, treated paper cone drivers. With an amplifier and DSP channel for each driver, all of the flexibility of Iconyx is now available in a package nearly 40% smaller than the classic Iconyx.

While the package is smaller the performance is not. Full RHAON II beam-steering allows for multiple U.R.G.O beams and high-pass filtering of individual beams. All with the fidelity and musicality expected of a Renkus-Heinz product.

The ICC12/3 brings the performance and directivity of Iconyx to spaces where even the classic Iconyx arrays are too large. The very narrow cabinet will disappear into nearly any venue, while the high vertical directivity of the ICC12/3 can penetrate even challenging acoustics, taking the exceptional performance of beam-steered line arrays to the most architecturally sensitive spaces.

The included wall-mount bracket makes mounting easy and is nearly invisable behind the array.

The ICC12/3 is available in white and black standard, custom color matching is optional. Standard -RN units have analog and AES inputs, -RD1 units include Dante network audio.



  • Frequency Response: 135 Hz to 17 kHz (+/– 3dB)
  • Calculated Max SPL: 94 dB (peak, half-space @ 30 meters)
  • Dispersion: 120º horizontal below 3 kHz, 90º above 3 kHz x adjustable vertical
  • Aiming Angle: Adjustable from –30º to +30º
  • Beam Control: Steerable from 800 Hz and up, directivity from 400 Hz and up.
  • Sensitivity: 1.4 volt RMS for rated output, analog
  • Transducers: 12 x 3 in./77 mm, full-range, high sensitivity, treated paper cone drivers
  • Inputs: Analog and Loop-out / AES and Loop-out
  • Connector:
    • 2 x Phoenix, In & Loop-out, analog and AES.
    • 2 x RJ45 Primary & Secondary Ethernet/RHAON II
  • Enclosure: Folded aluminum
  • Grille: 16 GA powder-coated, plated, perforated steel
  • Finish: Black (RAL9011) or White (RAL9010) paint, standard, custom color available.
  • Mounting: W-WALL-IC3 wall mount bracket, included
  • Dimensions:
    • 4-3/8 in. (111 mm) wide
    • 39-1/2 in. (1003 mm) high
    • 4-3/4 in. (121 mm) deep
  • Weight: 26 lbs/12 kg



ICC 12 Channel Amplifier
  • Power Output: Twelve channels, 40 watts @ 8 ohms, max, each. Multi-band peal and thermal limiting on all channels protects the drivers.
  • Mains Voltage: 100-240 volts, 50/60 Hz, auto-switching
  • Power Consumption:
    • Idle: 600 mW
    • 1/8 power (onset of limiting) 60 W
    • 1/3 power (hard limiting) 210 W
  • Power Connector: IEC-C14 mains power
  • Latency: 9 ms
  • User DSP: Eight parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
  • Temperature Limits:
    • Max.: 140º F/60º C, with no direct sun exposure
    • Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
