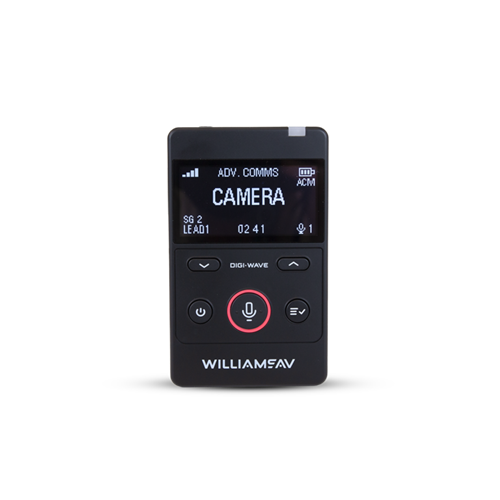

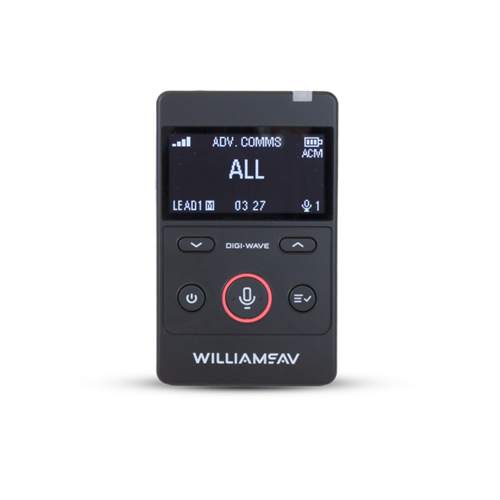

WI-DLT400-ACM - Digi-Wave ACM Transceiver Advanced Comms Module

Williams AV (WI-DLT400-ACM)

Brand
Williams AV
RRP $1,399.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands Williams AV

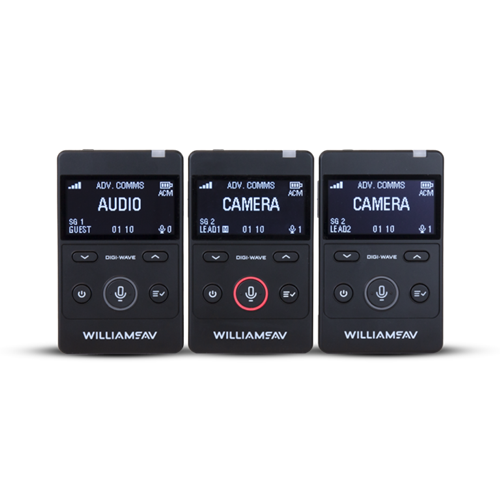

The Digi-Wave Advanced Comms Module (ACM) Transceiver offers a top-notch, portable two-way communication intercom system perfect for a variety of environments, including broadcasting, theatre, and live events. Packed with essential features that production and event teams rely on—like all-call capabilities, flexible access points, subgroup division, custom naming, and adaptable programming—this system is available at a budget-friendly price. Built on the trusted durability and long battery life that Digi-Wave is renowned for, the Digi-Wave digital intercom ACM ensures a reliable, user-friendly solution for seamless two-way communication.

SPECIFICATIONS:

    Dimensions

    2.60”W x 4.22”H x 0.50”D

    (66 mm x 107.3 mm x 12.6 mm)

    Weight

    3.3 oz (94 g) including battery

    Color

    Black/Silver (Front/Back)

    Case Material

    Black ABS plastic

    Battery type

    Lithium Polymer with smart charge built into transceiver; 1800 mAH

    Battery life

    Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx

    Power Save

    Auto Sleep Mode after 5 minutes of no RF signal from compatible devices

    Charge time

    5 hrs. approx.

    System Voltages

    OLED 14VDC; RF 5VDC; Logic 3.3 VDC

    Operating frequencies

    2.4 GHz (ISM band); 2402 – 2476 MHz FHSS

    Audio Frequency response

    (-3dB Level)

    INT24, Q&A INTP, ADV. Comms, Intercom and Court Mode: 100 – 7,200 Hz

    Other Modes: 100 – 11,500 Hz

    SNR

    73 dB (A-weighted, default Rx volume with mic input )

    THD

    0.1 % (Default Volume, 1kHz)

    Microphone input

    Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.

    Line Input

    USB-C, Adjustable level

    Headphone Output

    3.5 mm TRRS headphone jack; 25 mW, R 32 ohms

    Audio Output

    Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)

    Line: USB-C, Adjustable level

    Range

    Up to 900 ft (274 m) (depending upon environmental conditions)

    Modulation

    FSK

    RF Output

    19 dBm Typical

    Security

    87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings

    Side tone

    -6 dB below volume, tone variation (Off, Low and High settings available)

    Indicators

    OLED

    LEDs

    Red LED around Talk button when enabled; Bi-color, changing green and red LED at top

    Charging Connectors

    USB-C; Two contacts for use with CHG 412

    Compatible Receiver

    DLR 400 RCH (with firmware 1.3.0 or greater)

    Operating Temperature Range

    14º to 113ºF (-10º to 45ºC)
