Products

Collaboration systems

Conference speakerphone and presentation switcher in one Display link . wireless castin

Product Code: WY-APO210UC

Brand
Wyrestorm
RRP $2,109.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands WyreStorm
Series Apollo Series
  • Details
  • Downloads
  • Where to Buy
  • Ordering

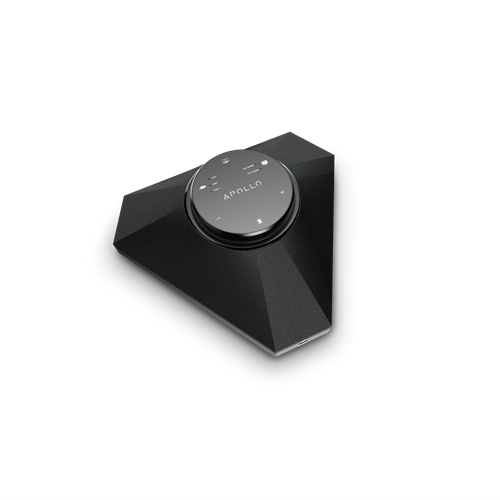

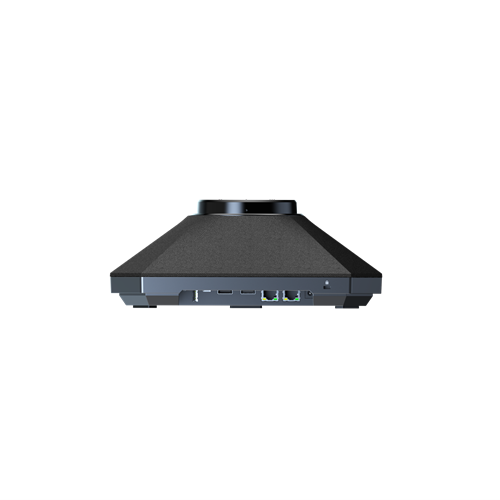

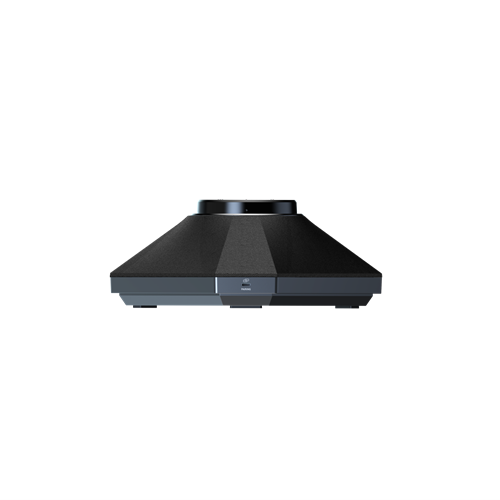

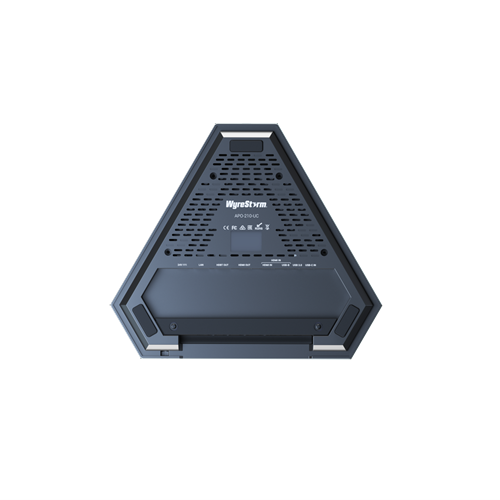

Apollo Series Conference Speakerphone & Switcher with HDBaseT Out


SKU: APO-210-UC
The APO-210-UC is the premium solution in the Apollo series of unified communication products. The APO-210 is a conference speakerphone and presentation switcher wrapped into one package. With a broad range of connectivity options, transmit video via local USB-C or HDMI, wirelessly with Miracast or AirPlay. Multiview capability allows up to two devices to share content simultaneously, promoting improved collaboration. An integrated USB 3.0 device port allows easy connection of peripheral equipment such as PTZ cameras. The APO-210 adds a Class B HDBaseT output in addition to the HDMI out to support dual-screen meeting spaces.

SPEAKERPHONE
All Apollo series products feature a premium 360° omni-directional microphone array with echo cancellation, ensuring you can be heard loud and clear in every meeting. The powerful 10-watt speaker provides crystal clear audio delivery, even in the largest rooms.


WIRED & WIRELESS
Loaded with connectivity, the APO-200 & 210 support local connection via USB-C and HDMI, wireless casting via Miracast and AirPlay or casting from our USB-100-DGL wireless dongle.


MULTIVIEW
Two separate video devices can be transmitted at the same time in a split screen view using a combination of wired or wirelessly connected laptops, tablets, or smart phones.

CAPACITIVE TOUCH
Intuitive capacitive touch buttons provide volume control and mic muting for your meeting, along with the ability to send a CEC power command to a connected display and switch the active USB host.


Features

  • 360° omni-directional microphone array with echo cancellation
  • Powerful 10-watt speaker providing crystal clear audio delivery
  • Capacitive touch volume and mic control buttons, including one-touch display power and USB host switching between USB-C and USB-B
  • LED feedback ring for volume level and mute status
  • Real-time LED indication of mic pick-up direction
  • Simple plug and play design using a single USB connection
  • Compatible with both USB-C and USB-A equipped computers with the supplied USB cable and adapter
  • Native USB-C connection provides up to 60w device charging for laptops or tablets
  • HDMI & native USB-C connection supports up to 4K 30 4:4:4 8bit content while USB-A Display Link connection supports up to 1080p 60
  • Supports wireless casting via Miracast (Windows 10) and Apple AirPlay (Macs and iOS devices) up to 1080p60
  • USB 3.2 device port supports connection of additional USB peripheral devices such as a PTZ camera
  • Multiview allows two laptops or tablets to share content to a display simultaneously using a combination of local or wireless devices
  • Compatible with all major conference platforms including Microsoft Teams, Zoom, Skype, BlueJeans, Cisco WebEx and more!
  • APO-210-UC model supports HDMI and HDBaseT outputs to support long distance transmissions and dual-screen conference rooms

Specifications

AUDIO AND VIDEO

  • Inputs:
    • 1x USB-C
    • 1x HDMI: 19-pin type A
    • 1x USB 3.0 Female Device Port
    • 1x USB 2.0 Mini USB-B Host Port (for HDMI input devices)
  • Outputs:    1x 19-pin HDMI type A
  • Video Resolutions (Max):
    • USB-A Display Link & Wireless Casting: 1920x1080p @60Hz 8bit
    • Native USB-C: 3840×2160 @30hz 8bit 4:4:4
    • HDMI: 15m
    • HDBaseT: 40m/131ft Cat6 or higher
  • Supported Standards:    RGB | USB
  • Maximum Pixel Clock:    300 MHz

SPEAKERPHONE

  • Microphone:
    • 4 x Omni-Directional Mic Array with Echo Cancellation
    • Pick-up Range: 5m/16.4ft
    • Frequency Response: 100Hz ~ 20KHz
    • Sample Rate: 16bit 48KHz
  • Speaker:
    • 10 watts
    • 78 dB @ 1.5m/4.9ft
    • Sample Rate: 24bit 48Khz
  • Control:    Capacitive touch volume +/- and microphone mute buttons | Telnet API

COMMUNICATION AND CONTROL

  • HDMI:    HDMI 2.0 | HDCP 2.2 | EDID | CEC
  • HDBaseT:    Class B Spec 2.0
  • USB:
    • USB-C: USB 3.2 Gen 2×1 | Max Bandwidth: 5Gbps (60w max charging)
    • USB-A 3.0 | Max Bandwidth: 5Gbps
    • USB-B 2.0 Mini: 480Mbps (USB over HDBT is limited to 190Mbps)
  • LAN:    1 x 8-pin RJ45
  • RS-232:    Passthrough over HDBaseT(requires compatible HDBaseT receiver)

POWER

  • Power Supply:    24V DC 5A
  • Max Power Consumption:    Max: 20w | Max with USB-C charging: 80w

ENVIRONMENTAL

  • Operating Temperature:    +32°F ~ +104°F (0°C ~ +45°C) | 10% ~ 90% non-condensing
  • StorageTemperature:    -4°F to ~ 140°F (-20°C ~ +70°C) | 10% ~ 90% non-condensing
  • Maximum BTU:    Standard: 68 BTU/hr

DIMENSIONS & WEIGHT

  • Length x Width x Height:    Corner to corner (widest point): 266.7mm/10.5inHeight: 106.6mm/4.2in
  • Weight:    1.47kg/3.25lbs

REGULATORY

  • Safety and Emission:    CE | FCC | RoHS | EAC | RCM
