Bundle: MHUBPRO4440+MHUBAUDIO HDANYWHERE

Product Code: HA-MHUBPRO4440VA

Brand
HD Anywhere
RRP $8,999.00


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands HDAnywhere
Input/output type HDMI
Product type AV matrixes

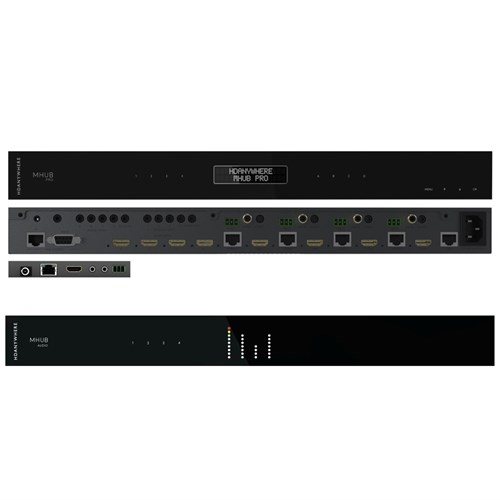

Bundle comprising MHUB PRO (4x4) 40 and MUB AUDIO (four amplified stereo audio zones)

MHUB PRO (4x4) 40

Highlights

  • 4x4 matrix with 4 x HDMI inputs
  • 4 x HDBaseT outputs (includes 4 x 4K receivers) and 4 x parallel HDMI outputs.
  • Range 40m at 4K, 70m at 1080P.
  • uControl allows App-based control of matrix, sources and displays.
  • Can be remotely monitored and managed through HDA Cloud service.


Connectivity-rich professional series 4x4 HDMI/HDBT+mirror matrix system with long-range video (4K 40m/1080p 70m) and powerful control options. A ‘one-wire’ UHD/4K-capable whole-home AV hub, that hides home entertainment devices centrally and makes them universally available on every display. All easily-controlled via the free uControl app or with the hands-free convenience of Alexa voice control - also features remote monitoring and management via HDA Cloud, designed to reduce the necessity for callouts and site visits. Capable of carrying Ultra HD 4K + support for HDR and Dolby Vision®. Integration needs are well catered for, with each of the four display outputs featuring both multichannel digital audio extraction and stereo downmixing, making for easy integration with multizone amplifiers or audio matrices.

FEATURES

  • HDMI® 2.0 features supported up to 10.2Gbps
  • Backlit fade in/out touch panel controls
  • All display receivers powered via PoH
  • Web GUI for easy config and setup (MHUB-OS)
  • Remote system monitoring and management (HDA Cloud)
  • Advanced EDID management
  • Supports HDCP 2.2 Ultra HD 4K 24/30Hz 4:2:2 (HDR10) or 60Hz 4:2:0 (HDR 8bit)
  • + support for Dolby Vision and HLG.
  • Supports all current audio formats up to and including Dolby Atmos® and DTS:X®
  • Multichannel audio extraction via digi-coax, or audio downmix via stereo jack
  • Easy and instant integration with MHUB AUDIO
  • 4K>1080 down/up-scaling receiver option available

SPECIFICATIONS

Form factor 19”/1U aluminum rack-mountable unit
Inputs x outputs 4 HDMI x 4 RJ45 HDBaseT + 4 mirrored HDMI
Transmission tech. HDBaseT Class B and HDMI
Video bandwidth 340MHz clock / 10.2Gbps data
ESD protection ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Hub control Web GUI, IR, TCP/IP, RS232, App, Alexa
App control Full control over sources, matrix hub & display functions.
Device weight Hub 2400g
RX 125g
Package weight 3500g
Dimensions (W/D/H) Hub 440 / 284 / 45mm (without feet)
RX 140 / 65 / 17mm
Operating temperature 32°F to 104°F (0°C to 40°C)
Storage temperature -4°F to 140°F (-20°C to 60°C)
Relative humidity 20~90 % RH (non-condensing)
Power consumption 30W (max) 0.5W (standby)
Guarantee 3/4-year guarantee (Cloud registration required)


MHUB AUDIO (6X4)


MHUB AUDIO is a 6x4 matrix-amplifier with DSP EQ, dedicated sub outs, and integrated 55W amplifiers.


Perfect Pairing
The MHUB AUDIO works well with any MHUB PRO HDMI distribution system, which integrates automatically within HDA's universal AV control app, uControl.

Multiroom Music
Two aux digital optical or COAX digital inputs are available for the easy connection of additional audio and music sources.

Sub/slave outputs for .1 systems
Four additional unamplified outputs, one for each zone, are also available. Each with individual DSP EQ allowing high pass and low pass filtering.

Stackable - Up to 16 Zones
The four additional unamplified outputs can also be used for connecting additional MHUB AUDIO units (or other amps) for larger installs, creating up to 16 zones of audio.

Room EQ wizard
Take the guesswork out of how to equalise a room with the room EQ wizard. Full EQ options are available to make those individual adjustments, but getting to the end result, or even just getting to an excellent starting point now takes far less time than before.
