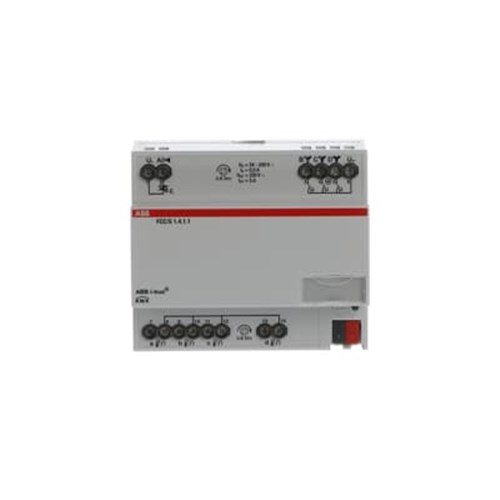

ABB PWM FAN COIL CONTROLLER PWM, 3ST, 6MRDC FCC/S1.4.1.1

Product Code: AB-FCCS1.4.1.1

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB
Series KNX HVAC Control

FCC/S1.4.1.1

General Information

  • Extended Product Type: FCC/S1.4.1.1
  • Product ID: 2CDG110209R0011
  • EAN: 4016779011419
  • Catalog Description: FCC/S1.4.1.1 Fan Coil Controller, PWM, 3-stage, MDRC
  • Long Description: For the control of fan coil units. Via one electronic output, a thermoelectric valve drive can be controlled for heating and cooling. For the fan control the devices features three relay outputs. Over 4 inputs the room status can be detected and monitored (Use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device.  The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
  • Installation
    • Mounting Type: DIN-Rail
  • Environmental
    • Degree of Protection: IP20
  • Technical
    • Special Functions: Valve Protection
    • Number of Outputs: 4
    • Number of Digital Inputs: 4
    • Number of Inputs: Analog (0 ... 10 V / 4 ... 20 mA) 4
    • Compatible Bus Systems: KNX (TP)
    • Product Range: KNX
    • Manual Operation: No
    • Number of Batteries: 0
  • Electrical
    • Maximum Switching Current: 5 A
    • Output Current Maximum (Iout): 0.5 A
    • Power Loss: 3 W
  • Design
    • Colour: light grey
  • Dimensions
    • Width in Number of Modular Spacings: 6.0
    • Product Net Width: 105 mm
    • Product Net Height: 90 mm
    • Product Net Depth / Length: 63.5 mm
    • Product Net Weight: 0.215 kg
