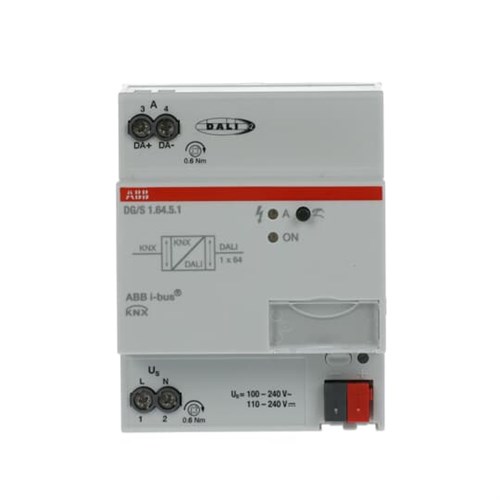

ABB PREM DALI GWAY 1X64 4MRDC DG/S1.64.5.1

Product Code: AB-DGS1.64.5.1

Brand
ABB
RRP: POA


Quantity In Cart: 0
Unit of Measure
EACH



Technical Specifications
Brands ABB

DG/S1.64.5.1

Single-Master DALI Controller certificated acc. to DALI-2 (EN 62386). The device is used to control DALI or DALI-2 devices via ABB i-bus® KNX. Two DALI output for up to 64 DALI participants. DALI power supply is integrated. Control and status feedback is carried out via KNX per DALI participants (64), with lighting groups (16), together in broadcast or per scenes (16). DALI devices type DT1 (Self-contained emergency converter acc. EN 62386-202) and type DT8 (colour temperature Tc & RGB(W) acc. EN 62386-209) will be supported. Other DALI devices e.g., DT6 can be controlled via standard DALI commands acc. to EN 62386-102.
Extensive fault and error messages are available. Slave-, staircase-, force-, block- and scene-function are integrated. Colour can set and dim, HSV(W)-, Dim2Warm-, HCL-function, 4 sequencer per DALI output can be used. A standby switch-off in combination with a KNX switch actuator (e.g., SA/S) and the integration of the DALI Gateways into a load control system are possible. By means of KNX and DT1 converter different emergency tests (e.g., function and duration test) can be triggered, test results are transferred back to KNX.
For diagnostic use and individual change of the DALI address or group assignment a separate software tool (ABB i-bus® Tool) is available.


Technical data

KNX DALI gateway

  • DALI single-master controller: IEC 62 386 Parts 101ed2 and 103ed1 (DALI and DALI-2)

Supply

  • Gateway supply voltage: 100 – 240 V AC
  • Voltage range:
    • 85…265 V AC, 50/60 Hz 110…240 V DC
    • DG/S 1.64.5.1 DG/S 2.64.5.1
  • Power consumption total via mains*): Maximum 6 W Maximum 11 W
  • Current consumption total via mains*): Maximum 25 mA Maximum 48 mA
  • Leakage loss total for device*): Maximum 2 W Maximum 4 W
  • KNX current consumption: Maximum 10 mA
  • Power consumption via KNX: Maximum 210 mW

DALI outputs (channels)

  • DG/S 1.64.5.1 DG/S 2.64.5.1
  • Number of outputs: 1 2
  • Voltage proof, short circuit proof:
    • 230 V AC
    • Maximum 64 per output to IEC 62 386;
    • DALI devices for self-contained emergency lighting to IEC 62 386-202 are supported.2)
  • Number of DALI devices:
    • Maximum 64 per output to IEC 62 386;
    • DALI devices for self-contained emergency lighting to IEC 62 386-202 are supported.2)

DALI outputs (channels)

  • Distance between gateway and last DALI device with cross-sectional area:
    • Cable cross section 0.5 mm2 100 m1)
    • Cable cross section 0.75 mm2 150 m1)
    • Cable cross section 1.0 mm2 200 m1)
    • Cable cross section 1.5 mm2 300 m1)

Connections

  • KNX:  KNX connection terminal, 0.8 mm Ø, solid
  • DALI outputs and Mains voltage: Screw terminal, universal head 0.2…4 mm2, stranded 0.2…6 mm2, solid
  • Tightening torque: Maximum 0.6 Nm

Degree of protection

  • IP 20 To EN 60 529

Protection class

  • II To EN 61 140

Isolation category

  • Overvoltage category III to EN 60 664-1
  • Pollution degree 2 to EN 60 664-1

KNX safety extra low voltage

  • SELV 24 V DC

DALI voltage

  • Typical 16 V DC (12…20.5 V DC): To EN 60 929 and IEC 62 386
  • No-load voltage: 18 V DC
  • Lowest supply current at 12 V DC: 160 mA
  • Highest supply current: 250 mA

Temperature range

  • Operation: - 5 °C…+45 °C
  • Storage: -25 °C…+55 °C
  • Transport: -25 °C…+70 °C

Environmental conditions

  • Humidity: Maximum 93%, moisture condensation should be excluded
  • Atmospheric pressure: Atmosphere up to 2,000 m

Design

  • Modular installation device (MDRC): Modular installation device, pro M
  • Dimensions: 90 x 70 x 63.5 mm (H x W x D)
  • Mounting width: 4 x 17.5 mm modules
  • Mounting depth: 68 mm

Mounting

  • On 35 mm mounting rail: To EN 60 715

Mounting

  • position: Any

Weight (net)

  • DG/S 1.64.5.1: DG/S 2.64.5.1
  • 0.13 kg: 0.15 kg

Housing, color

  • Plastic, gray: Halogen-free
  • Flammability V-0 as per UL94

Approvals

  • KNX to EN 50 090-1, -2 Certification
  • EN 50 491-5-2
  • DALI-2 to IEC 62 386 Certification

CE marking

  • In accordance with the EMC and Low Voltage Directives
